WEG Electric Motor 00212ET3ER184TC-W22

B00BC88NIA

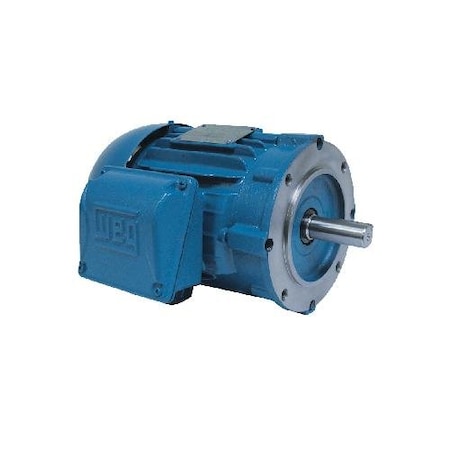

WEG Electric, 00212ET3ER184TC-W22, 2HP, 1200RPM, 3PH, 208V;230V;460V, 184TC Frame, C-Face Flange, Footless, TEFC, General Purpose Motor.

WEG Electric, 00212ET3ER184TC-W22, 2HP, 1200RPM, 3PH, 208V;230V;460V, 184TC Frame, C-Face Flange, Footless, TEFC, General Purpose Motor.zoom

Attributes

Key Value
Amperage Rating7.13 to 6.44/3.22 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 2HP 6P 184TC WFF2
Dimensions17.197 in L
Drive End Flange TypeC-Face
Efficiency %88.5 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight111.00
Family SeriesWEG Electric Motors
FL Amps3.23
FL Efficiency88.5
FlangesC-Face Flange
Frame184TC
Frame RemarksRound Body, Footless
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number00212ET3ER184TC-W22
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00212ET3ER184TC-W22
MaterialCast Iron
MFG Part #:00212ET3ER184TC-W22
Model12821972
MountingFootless (W-6), Footless
Mounting TypeC-Face Footless, Footle.
NEMA Frame184TC
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Poles6
Number of Speeds1
Output Rating2 hp
Part Number00212ET3ER184TC-W22
Phase3, 3 ph
Product TypeGeneral Purpose
Replaces00212EP3ER184TC-W22
RotationCW/CCW
RPM1,200 RPM, 1200
Service Factor1.25
Speed1170 rpm
Speed (RPM)1200
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1200rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7909158842209
Voltage230/460//380 V, 208-230.
Voltage (AC)208 VAC
Volts208/230/460
Weight104.680000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00212ET3ER184TC-W22564.01In StockWEG99.8564.0 @ 1
thumbzoomWalker Industrial00212ET3ER184TC-W22662.251In Stock17WEG662.25 @ 1
thumbzoommotorsandcontrol.com00212ET3ER184TC-W22662.251In StockWEG Electric111.0662.25 @ 1
kscdirect.comWEG 00212ET3ER184TC-W22678.121In StockWEG ELECTRIC CORP678.12 @ 1
thumbzoomMRO Supply1312153697.351In StockWEG697.35 @ 1
thumbzoomGalco00212ET3ER184TC-W22-WEG725.241In StockWEG Electric725.24 @ 1
thumbzoomindustrialrefrigerationparts.com00212ET3ER184TC-W22761.661In StockWEG104.68761.66 @ 1
thumbzoomZoroG803659839774.91In Stock11Weg774.9 @ 1
thumbzoomDealers Electric00212ET3ER184TC-W22806.191In StockWeg111.0806.19 @ 1
thumbzoomPurvis00212ET3ER184TC-W22807.061In StockWEG807.06 @ 1
thumbzoomRadwell00212ET3ER184TC-W22840.01In StockWEG840.0 @ 1
thumbzoomvfds.com00212ET3ER184TC-W22883.01In StockWEG883.0 @ 1
thumbzoomNational Supply NetworkB8732661161.991In StockWeg Electric Motors1161.99 @ 1
