GRAINGER APPROVED 16XR06228SG

B01M0T34X7

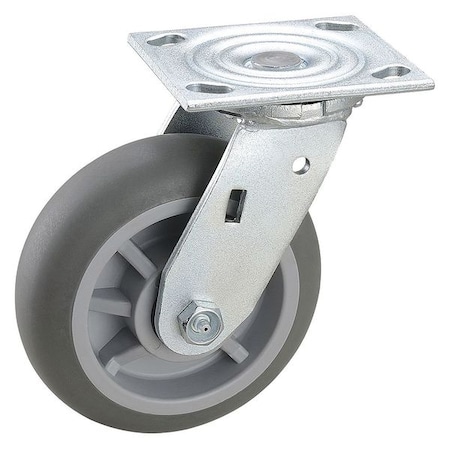

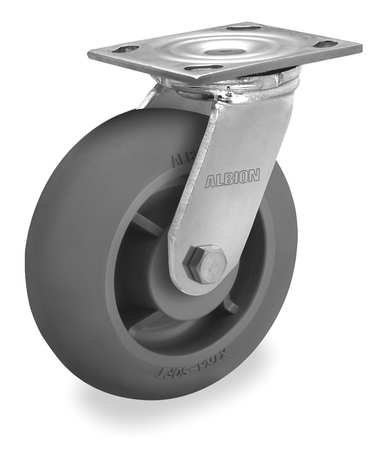

Swivel Plate Caster, 600 lb., Ball

Swivel Plate Caster, 600 lb., Ballzoom

Attributes

Key Value
ApplicationDollies, Floor Trucks, .
Caster Brake IncludedNo
Caster Brake TypeNo Brake Included
Caster Core MaterialPolypropylene
Caster Frame MaterialSteel
Caster Load Rating RangeLight-Medium Duty
Caster Max. Temp.180 Degrees F
Caster Min. Temp.-45 Degrees F
Caster Plate Hole Patte.B
Caster Plate Size4" x 4-1/2"
Caster Plate Thickness1/4"
Caster Product GroupSwivel Caster
Caster RacewayDouble Ball
Caster Stem TypeNo Stem/Plate Included
Caster Sub-TypeSwivel
Caster Swivel Lock TypeNo Lock Included
Caster Temp. Range-45 Degrees to 180 Deg.
Caster Temp. Range Avai.Yes
Caster Wheel BearingsBall
Caster Wheel ShapeDonut Tread
Caster Wheel/Tread Mate.Thermoplastic Rubber
Core ColorGray
Core ColourGray
Country of Origin (subj.China
Durometer70 Shore A
Extended LeadNo
Frame FinishZinc Plated
Frame MaterialSteel
Includes Thread GuardsNo
Inside Bolt Hole Spacing3 in x 3 in
ItemNSF-Listed Sanitary Pla.
Load Rating600 lb
Load Rating Range300 to 999 lb
Mounting Bolt Dia.3/8 in
Mounting Height7 1/4 in
Mounting Plate Bolt Hol.B
Mounting Plate Size4 in x 4 1/2 in
Non-MarkingYes
Number of Mounting Holes4
Number of Wheels1
Outside Bolt Hole Spaci.2-5/8 in x 3-5/8 in
Overall Height7-1/4"
Plate Caster Bolt Hole .B
Plate Size4" x 4-1/2"
Plate Thickness1/4"
Replacement WheelMfr. No. XR0622808G
Stem Dia.No Stem
Swivel ConstructionKingpin
Swivel Lock TypeNo Lock Included
Swivel Raceway TypeDouble Ball
Thread GuardsNo
Tread ShapeDonut
Wheel Bearing TypeRoller
Wheel ColorGray
Wheel Core MaterialPlastic
Wheel Dia.6 in
Wheel Width2 in
Wheel/Tread ColorGray
Wheel/Tread ColourGray
Wheel/Tread Hardness75 Shore A
Wheel/Tread Hardness Ra.Soft
Wheel/Tread MaterialThermoplastic Rubber

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG185488517.83158Zoro Select5.7517.83 @ 1
grainger.caWWG2LY3027.232241121In StockGRAINGER APPROVED5.7527.23224112 @ 1
