Value PVC CHK 426-6B6B-B

B01N9ZG3O2

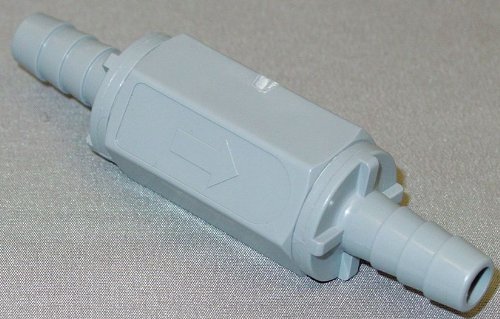

Ball Cone Spring Check Valve, Grey PVC

Ball Cone Spring Check Valve, Grey PVCzoom

Attributes

Key Value
Application - ValvesGeneral Purpose
Body MaterialPVC
Body Material - ValvesPVC
Connection TypeBarb x Barb
Connection Type - Check.Barb x Barb
Cracking Pressure1.0 psi
Cracking Pressure - Che.1.0 psi
Flow DesignSingle
Full Flow - ValvesYes
Hex Size1 in, 1"
Item - Check ValvesCheck Valve
Length3 17/32 in
Material of ConstructionPVC
Max. Pressure125 psi
Max. Steam Pressure - V.Not Rated
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F
Max. Water Pressure125 psi
Max. Water Pressure - V.125 psi
Mechanism and Body Desi.Inline Ball Cone
Min. Temp. - Valves-20 Degrees F
Mounting OrientationHorizontal, Vertical
Mounting Orientation - .Horizontal, Vertical
Mounting PositionVertical or Horizontal
Overall Height1 in
Pipe or Tube Size3/8 in
Pipe or Tube Size - Che.3/8 in
Pipe Size3/8"
Seal MaterialBuna, Buna-N
Seat MaterialPVC
Size3/8"
Spring MaterialStainless Steel
Spring Material - Check.Stainless Steel
Width1 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG302436617.891504Zoro Select0.317.89 @ 1
grainger.caWWG4DJA523.124179161In StockGRAINGER APPROVED0.0923.12417916 @ 1
AmazonTPB01N9ZG3O223.971In Stock2VALUE BRAND23.97 @ 1
AmazonUNKB01N9ZG3O223.971In StockVALUE BRAND23.97 @ 1
