Amphenol MS3102E18-12P

mpnMS3102E18-12P
brandname: Amphenol Industrial
manufacturername: Amphenol Industrial

Amphenol Industrial MS3102E18-12P Circular Connector Pin, Environmental Resisting, Threaded Coupling, Solder Termination, Box Mounting Receptacle, 18-12 Insert Arrangement, 18 Shell Size, 6 Contacts

Brand: Amphenol
PartNumber: MS3102E18-12P
Model: MS3102E18-12P
Size: 18-12 Insert Arrangement
PackageQuantity: 1
Binding: Misc.
Manufacturer: Amphenol
Label: Amphenol

Attributes

Key	Value
Alternate Part No.	654-MS3102E18-12P
Amperage Rating	13A
Angle	Straight
Application	True MIL
Brand	Amphenol Industrial
Class	E
Connector Style	Receptacle
Connector Type	Circular
Contact Configuration	6#16
Contact Gender	Pin (Male)
Contact Material	Copper Alloy
Contact Mating Life	100
Contact Plating	Silver
Contact Size	6#16
Contact Style	Pin
Contact Type	Pin
Contacts Supplied	Yes
Contacts, # of	6
Current Rating	13 A
Dielectric Material	Neoprene
Export Class	EAR / EAR99
Gender	Panel Socket
Grommet & Seals Material	Neoprene
Housing Finish	Olive Drab Cadmium
Housing Material	Aluminum Alloy
Housing Type	Metal

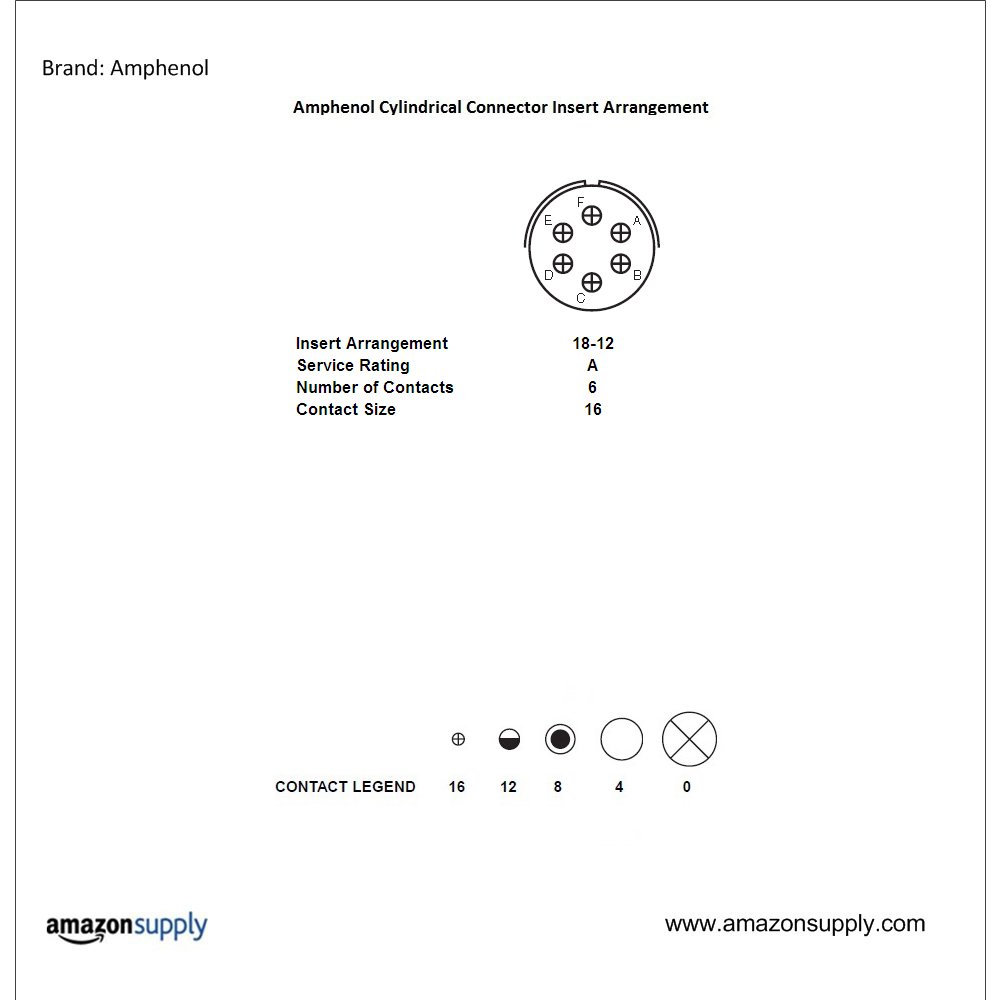

Insert Arrangement	18-12
Insert Material	Neoprene
Insert Rotation/Keying	Normal
Manufacturer	Amphenol
Manufacturer Part No.	MS3102E18-12P
Mating Type	Threaded
MIL Type	MIL-DTL-5015
Mounting Angle	Straight
Mounting Hole Diameter	0.12 "
Mounting Style	Panel
Mounting Type	Flange Mount, Box - Fro.
Number of Contacts	6
Number of Positions	6
Operating Temperature &.	-67 to +257 (-55 to +12.
Operating Voltage AC V .	500
Operating Voltage DC	700
Part # Aliases	MS31O2E18-12P
Primary Type	MIL/Aero
Product Category	Circular MIL Spec Conne.
Product Type	Receptacles
RoHS	No
Sealing	Meets IP67
Series	MS 5015, MS 5015 Series
Service Rating	A
Shell Color	Olive Drab
Shell Material	Aluminum Alloy
Shell Plating	Olive Drab Chromate ove.
Shell Size	18
Shell Style	Box Mount
Shielding	Yes
Special Features	Environmental Resistant.
Specification	MIL-DTL-5015
Termination	Solder
Termination Method	Solder
Termination Style	Solder
Tradename	5015
Type	5015 MIL Spec
Voltage Rating	700 V, 500 ; 700 V
Weight (g)	38.00000
Weight (lbs)	0.08375
Wire Gauge	16-20
Wire Size	16

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Amazon	B005T5EX04	5.46	1	In Stock		Amphenol		5.46 @ 1
i-components	MS3102E18-12P	8.171	1	7655		Amphenol Industrial		8.171 @ 1
PEI-Genesis	MS3102E18-12P	11.74	1	1352		Amphenol	0.08375	11.74 @ 1
Newark	74C0233	14.04	1	50		AMPHENOL INDUSTRIAL		14.04 @ 1
AmazonTP	B002L3MC2I	17.06	1	In Stock	3	Amphenol		17.06 @ 1
us.rs-online.com	70010036	17.62	1	71		Amphenol Industrial		17.62 @ 1
Digi-Key	AMS3102E18-12P-ND	22.96	1	In Stock		Amphenol Industrial Operations		22.96 @ 1
swatee.com	MS3102E18-12P	27.55	1	86		Amphenol		27.55 @ 1
