Amphenol RF 112966

B07PMTJ5H1

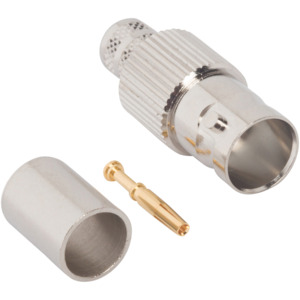

112966, RF Connector - BNC Straight Crimp Jack for RG-6 Plenum 75 Ohms (5 Items)

112966, RF Connector - BNC Straight Crimp Jack for RG-6 Plenum 75 Ohms (5 Items)zoom

Attributes

Key Value
Base Product Number1129
Body Finishnickel
Body materialbrass
Body Materialbrass
Body platingnickel
Cable GroupRG-6 Plenum, Belden 169.
CategoryConnectors, Interconnec.
Center Contact Materialphosphor bronze
Center Contact PlatingGold
Connectorplug
Connector StyleBNC
Connector TypeJack, Female Socket
Contact materialphosphor bronze
Contact platinggold-plated
Contact TerminationCrimp
DescriptionCONN BNC JACK STR 75 OH.
Detailed DescriptionBNC Connector Jack, Fem.
Dielectric MaterialPolytetrafluoroethylene.
Digi-Key Part NumberACX2290-ND
Electrical mountingcrimped
Fastening TypeBayonet Lock
Features-
Frequency - Max2 GHz
Housing ColorSilver
Impedance75Ohm
Includes3 pcs - 1 Connector, 1 .
Ingress Protection-
Insertion Loss-
Insulator materialPTFE
Kind of cableBelden 1695A,
Kind of connectorfemale
ManufacturerAMPHENOL RF
Manufacturer Product Nu.112966
Manufacturer Standard L.14 Weeks
Mating Cycles500
Max. frequency4GHz
Mechanical durability500 cycles
Mechanical mountingfor cable
MfrAMPHENOL RF
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Operating Temperature20?C ~ 75?C
Operating temperature-40...85?C
PackageBag
Product StatusActive
Series-
Shield TerminationCrimp
Spatial orientationstraight
Type of connectorBNC
Voltage Rating500 V
Wave impedance75?

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Hawk Electronics1129665.21005Amphenol-RF5.2 @ 100
thumbzoomjensentools.com52353.16.4115Amphenol RF6.41 @ 5
Newark99H45706.721005AMPHENOL RF6.72 @ 100
HotendaH8369316.9615Amphenol RF6.96 @ 5
Onlinecomponents.com1129667.071103AMPHENOL RF7.07 @ 5
Mouser523-1129668.19168Amphenol RF8.19 @ 5
TME1129669.015AMPHENOL RF9.0 @ 5
Verical1129669.236127Amphenol RF9.23 @ 6
thumbzoomDigi-Key39956269.96120Amphenol RF9.96 @ 5
AmazonTPB07PMTJ5H150.35151Amphenol RF50.35 @ 5
