- mpnCDPT3326
- brandname: Baldor
- manufacturername: Baldor

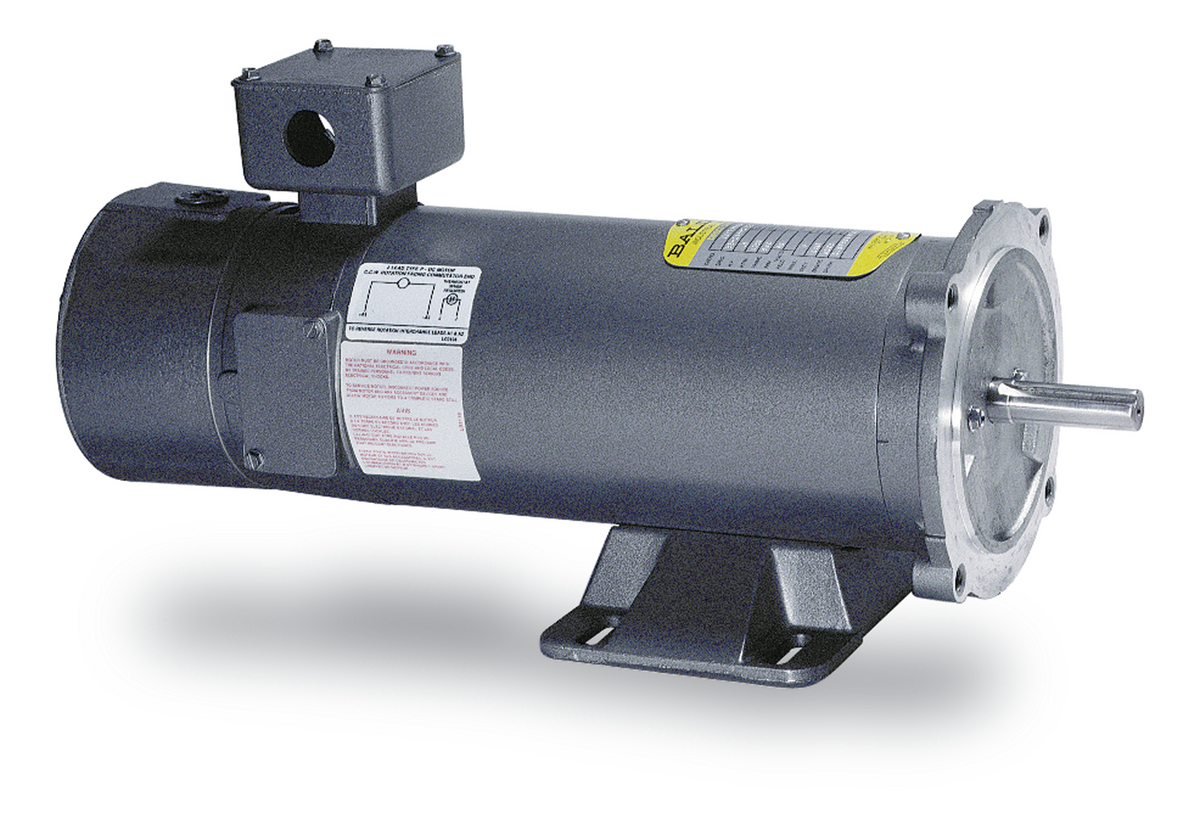

Baldor-Reliance CDPT3326 DC Electric Motor - Permanent Magnet, Brushed, 1/2 hp hp, 180 V, 1750 rpm, TENV (Totally Enclosed Non-Ventilated), 56C Frame
- Brand: Baldor-Reliance
- PartNumber: CDPT3326
- Manufacturer: Baldor-Reliance
- Label: Baldor-Reliance
Attributes
| Key | Value |
|---|
| Amps | 2.5 |
| Approvals | CSA, UL |
| Armature Current | 2.5 A, 2.5 |
| Armature Voltage | 180 V |
| Base RPM | 1,750 RPM |
| Bearings | Sealed |
| Comments | Integral 50VDC per 1000. |
| CT Speed Range | 20:1 |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | TENV |
| Enclosure Material | Steel |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 35.00 |
| Family Series | Baldor Motors, PERMANEN. |
| Frame | 56C |
| Gross Weight | 36 lbs |
| Horsepower | 1/2 hp |
| HP | 0.5, .5, 1/2 |
| Insulation Class | F |
| Item Number | CDPT3326 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 33-2657Z139G1 |
| Manufacturer Part Number | CDPT3326 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | C-Face With Base |
| Net Weight | 36 lbs |
| Overall Length | 16.74" |
| Part Number | CDPT3326 |
| Phase | DC |
| Product Series | PERMANENT MAGNET SCR |
| Product Type | DC, Integral Tachometer |
| Rotation | Reversible |
| RPM | 1700 - 1800, 1750 |
| Service Factor | 1.00 |
| Shaft Diameter | 0.625" |
| Ship Weight | 35 lbs. |
| Speed (RPM) | 1750 |
| Voltage | 180V, 180 |
| Volts | 180VDC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B007ZQOAN0 | 1603.71 | 1 | In Stock | 3 | Baldor Electric Company | | 1603.71 @ 1 |
 | emotorpro.com | CDPT3326 | 2075.41 | 1 | In Stock | | Baldor | 35.0 | 2075.41 @ 1 |
| factorysupplyoutlet.com | NO22RW | 2273.48 | 1 | In Stock | | Baldor-Reliance | | 2273.48 @ 1 |
 | Walker Industrial | CDPT3326 | 2296.44 | 1 | In Stock | | Baldor | | 2296.44 @ 1 |
 | Galco | CDPT3326-BLDR | 2296.44 | 1 | In Stock | | Baldor | 36.0 | 2296.44 @ 1 |
| motorsandcontrol.com | CDPT3326 | 2392.13 | 1 | In Stock | | Baldor Reliance | 35.0 | 2392.13 @ 1 |
 | Zoro | G3291840 | 2598.82 | 1 | In Stock | | Baldor-Reliance | | 2598.82 @ 1 |
| us.rs-online.com | 72512526 | 2611.91 | 1 | In Stock | | Baldor-Reliance | | 2611.91 @ 1 |
 | pumpproducts.com | CDPT3326 | 2717.0 | 1 | In Stock | | Baldor | | 2717.0 @ 1 |
 | cbtcompany.com | CDPT3326 | 2721.28 | 1 | In Stock | | Baldor Reliance | | 2721.28 @ 1 |
| kirbyrisk.com | 3128977 | 3011.07 | 1 | In Stock | | Baldor | | 3011.07 @ 1 |
 | Raptor Supplies | AJ6PCV | 6839.8245045 | 1 | In Stock | | BALDOR MOTOR | | 6839.8245045 @ 1 |
