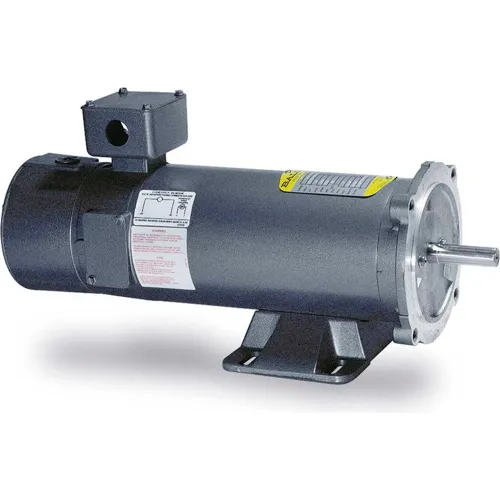

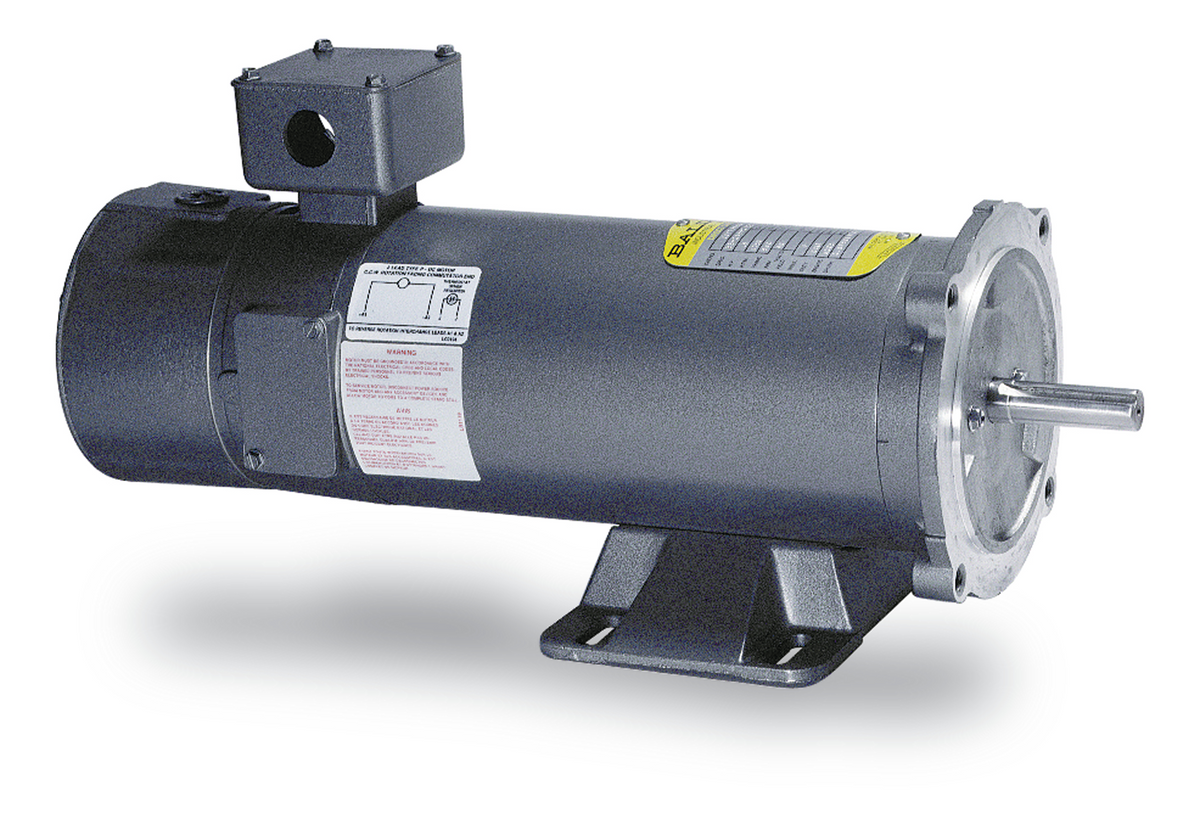

Baldor-Reliance CDPT3440 DC Electric Motor - Permanent Magnet, Brushed, 3/4 hp hp, 90 V, 1750 rpm, TEFC (Totally Enclosed Fan Cooled), 56C Frame
- Brand: Baldor-Reliance
- PartNumber: CDPT3440
- Manufacturer: Baldor-Reliance
- Label: Baldor-Reliance
Attributes
| Key | Value |
|---|
| Amps | 7.6 |
| Approvals | CSA, UL |
| Armature Current | 7.6 A, 7.6 |
| Armature Voltage | 90 V |
| Base RPM | 1,750 RPM |
| Bearings | Sealed |
| Comments | Integral 50VDC per 1000. |
| CT Speed Range | 20:1 |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | TEFC |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 43.00 |
| Family Series | Baldor Motors, PERMANEN. |
| Frame | 56C |
| Gross Weight | 44 lbs |
| Horsepower | 3/4 hp |
| HP | .75, 3/4, 0.75 |
| Insulation Class | F |
| Item Number | CDPT3440 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 34-7842-3662 |
| Manufacturer Part Number | CDPT3440 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | C-Face With Base |
| Net Weight | 44 lbs |
| Overall Length | 16.64" |
| Part Number | CDPT3440 |
| Phase | DC |
| Product Series | PERMANENT MAGNET SCR |
| Product Type | DC, Integral Tachometer |
| Rotation | Reversible |
| RPM | 1700 - 1800, 1750 |
| Service Factor | 1.00 |
| Shaft Diameter | 0.625" |
| Ship Weight | 44 lbs. |
| Speed (RPM) | 1750 |
| Voltage | 90, 90V |
| Volts | 90VDC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B007ZQOBK2 | 1934.55 | 1 | In Stock | 10 | Baldor Electric Company | | 1934.55 @ 1 |
 | emotorpro.com | CDPT3440 | 2195.41 | 1 | In Stock | | Baldor | 44.0 | 2195.41 @ 1 |
| factorysupplyoutlet.com | AH91NT | 2404.93 | 1 | In Stock | | Baldor-Reliance | | 2404.93 @ 1 |
 | Walker Industrial | CDPT3440 | 2429.23 | 1 | In Stock | | Baldor | | 2429.23 @ 1 |
 | Galco | CDPT3440-BLDR | 2429.23 | 1 | In Stock | | Baldor | 44.0 | 2429.23 @ 1 |
 | Global Industrial | WBB910262 | 2479.0 | 1 | In Stock | 15 | Baldor-Reliance | | 2479.0 @ 1 |
| motorsandcontrol.com | CDPT3440 | 2530.44 | 1 | In Stock | | Baldor Reliance | 43.0 | 2530.44 @ 1 |
 | motionindustries.com | 00552082 | 2639.69 | 1 | In Stock | | Baldor-Reliance | | 2639.69 @ 1 |
| us.rs-online.com | 72512529 | 2762.96 | 1 | In Stock | | Baldor-Reliance | | 2762.96 @ 1 |
 | pumpproducts.com | CDPT3440 | 2874.67 | 1 | In Stock | | Baldor | | 2874.67 @ 1 |
| kirbyrisk.com | 3128979 | 3185.18 | 1 | In Stock | | Baldor | | 3185.18 @ 1 |
 | Raptor Supplies | AJ6PCY | 7235.332884 | 1 | In Stock | | BALDOR MOTOR | | 7235.332884 @ 1 |
