Dodge P2BSC108

B006MI7P2A

Dodge P2BSC108 Normal-Duty Pillow Block, 2 Bolt Holes, Relubricatable, Non-Expansion, Cast Iron, Setscrew Locking Inner Ring, Steel Insert, Inch, 1-1/2" Bore Diameter

Dodge P2BSC108 Normal-Duty Pillow Block, 2 Bolt Holes, Relubricatable, Non-Expansion, Cast Iron, Setscrew Locking Inner Ring, Steel Insert, Inch, 1-1/2" Bore Diameterzoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
ApplicationGeneral Purpose
Ball bearing series208 series
Base to center height2.1300 in, 54.102 mm
Base to Center Height2.125 Inch | 53.98 Mill.
Bearing typeBall, ball
Bolt centerline range5 3/16 inch - 5 7/8 inch
Bolt Diameter0.5000 in
Bolt Spacing Maximum5.875 Inch | 149.225Mil.
Bolt Spacing Minimum5.188 Inch | 131.775Mil.
Bolt to bolt max5.8800 in, 149.352 mm
Bolt to bolt min5.1800 in, 131.572 mm
Bore1 1/2 in
Bore length1.9400 in, 49.276 mm
BrandDODGE
CategoryPillow Block Bearings
DutyStandard Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
FinishPowder coated
Global Part Number GPN522050
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
Housing optionCast Iron
Housing Style2 Bolt Pillow Block
Housing typeTwo-bolt pillow block
I.D.1 1/2 in
Inch - MetricInch
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SC-108
Insert typeBall Bearing
Length Thru Bore1.688 Inch | 42.87 Mill.
LockingSet Screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
MaterialSteel
Max Speed3500 RPM
Measure systemImperial
Mounting Bolts1/2 Inch
Mounting MethodSet Screw
Nominal Bolt Center to .5.5 Inch | 140 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
price$ 106.57 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
SealSingle lip
Seal optionDualGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentSetscrew
Shaft centerline height2 1/8 inch
Shaft diameter1.5000 in
Standoff housingNo
Static load capacity4475 lbf, 19905.792 N
Suitable for high tempe.No
Suitable for washdownNo
Take-up frame sizeLD-20,TS-250
titleP2B-SC-108
TypePillow block 2-Bolt
UNSPSC31171511
Weight / kgm2.134
Weight / LBS5.4

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

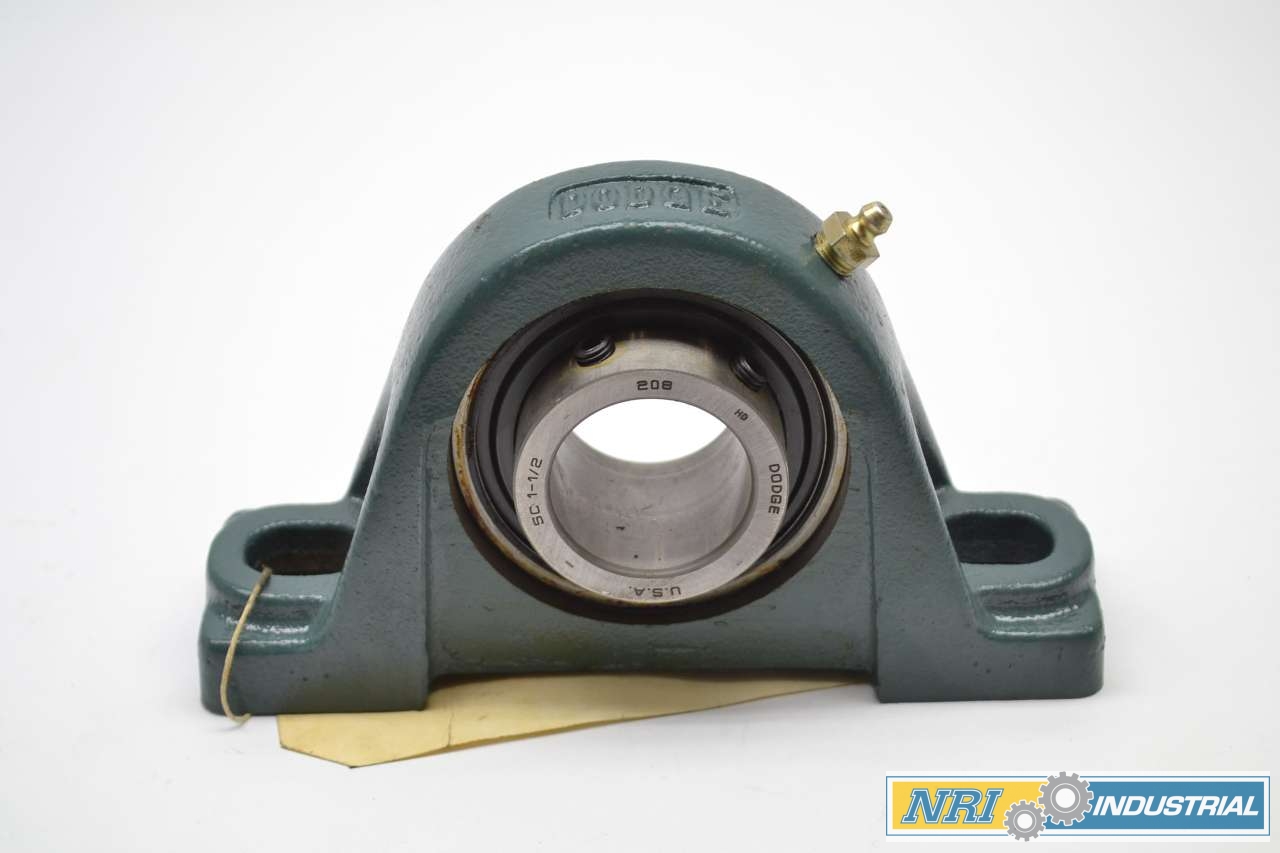

thumbzoomNRI IndustrialB42517347.511In StockDODGE47.51 @ 1
thumbzoomLily BearingP2B-SC-10890.581In StockDODGE4.694890.58 @ 1
thumbzoomMRO Supply123381109.011In StockDodge109.01 @ 1
thumbzoomapexindustrialautomation.comP2B-SC-108110.491In StockDodge110.49 @ 1
thumbzoomZoroG400414848175.991In StockDodge175.99 @ 1
