Dodge P2B-SC-111

mpnP2B-SC-111
brandname: DODGE
manufacturername: DODGE

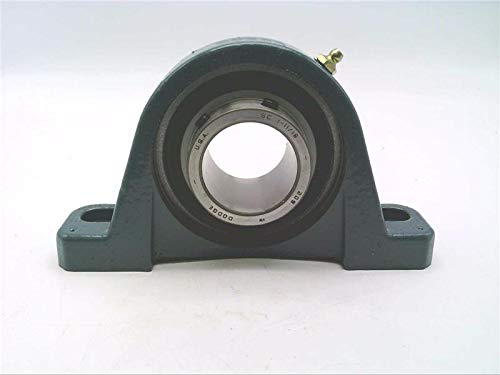

BALDOR DODGE P2B-SC-111 Bearing, 2 Bolt, Pillow Block, 1-11/16 INCH Shaft

Brand: Dodge
PartNumber: P2B-SC-111
Manufacturer: ASEA BROWN BOVERI
Label: ASEA BROWN BOVERI

Attributes

Key	Value
Actual Bolt Center to C.	0 Inch \| 0Millimeter
Application	General Purpose
Ball bearing series	209 series
Base to center height	2.1300 in, 54.102 mm
Base to Center Height	2.125 Inch \| 53.98 Mill.
Bearing type	Ball, ball
Bolt centerline range	5 1/2 inch - 6 3/8 inch
Bolt Diameter	0.5000 in
Bolt Spacing Maximum	6.188 Inch \| 157.175Mil.
Bolt Spacing Minimum	5.5 Inch \| 139.7Millime.
Bolt to bolt max	6.1900 in, 157.226 mm
Bolt to bolt min	5.5000 in, 139.7 mm
Bore	1 11/16 in
Bore length	1.9400 in, 49.276 mm
Brand	DODGE
Category	Pillow Block Bearings
Duty	Standard Duty
Expansion	No
Expansion / Non-expansi.	Non-expansion
Expansion capability	Non-expansion (fixed)
Finish	Powder coated
Global Part Number GPN	522044
Greasable	Yes
Harmonized Tariff Code	8483.20.40.40
High temp	No
Housing Configuration	1 Piece Solid
Housing construction	Solid
Housing Material	Cast Iron
Housing material	Cast Iron
Housing option	Cast Iron
Housing Style	2 Bolt Pillow Block
Housing type	Two-bolt pillow block
I.D.	1 11/16
Inch - Metric	Inch
Insert material	Steel
Insert option	Bearing steel
Insert Part Number	INS-SC-111
Insert type	Ball Bearing
Length Thru Bore	1.719 Inch \| 43.663 Mil.
Locking	Set Screw
Lubrication type	Grease
Manufacturer Name	ABB MOTORS AND MECHANIC.
Material	Steel
Max Speed	300 RPM
Measure system	Imperial
Mounting Bolts	1/2 Inch
Mounting Method	Set Screw
Nominal Bolt Center to .	5.8 Inch \| 146.5 Millim.
Number of Mounting Holes	2
Other Features	Single Row \| Normal Dut.
price	$ 122.74 / each
Relubricatable	Yes
Relubrication	Yes
Rolling element	Standard duty ball
Seal	Single lip
Seal option	DualGuard seals with fl.
Seals	Single Lip Contact
Sensor ready	Adapter required
Shaft attachment	Setscrew
Shaft centerline height	2 1/8 inch
Shaft diameter	1.6875 in
Standoff housing	No
Static load capacity	4906 lbf, 21822.975 N
Suitable for high tempe.	No
Suitable for washdown	No
Take-up frame size	LD-20,TS-250
title	P2B-SC-111
Type	Pillow block 2-Bolt
UNSPSC	31171511
Weight / kgm	2.324
Weight / LBS	6.4

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Lily Bearing	P2B-SC-111	104.33	1	In Stock		DODGE	5.1128	104.33 @ 1
MRO Supply	133888	119.49	1	14		Dodge		119.49 @ 1
apexindustrialautomation.com	P2B-SC-111	121.11	1	In Stock		Dodge		121.11 @ 1
Purvis	P2B-SC-111	148.22	1	In Stock		Dodge		148.22 @ 1
Zoro	G900415130	165.58	1	In Stock	20	Dodge		165.58 @ 1
motionindustries.com	00557309	187.13	1	In Stock		Dodge		187.13 @ 1
