Dodge P2BSC203

B006MI7RJQ

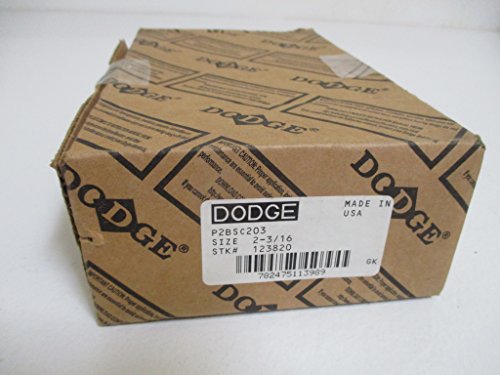

Dodge P2BSC203 Normal-Duty Pillow Block, 2 Bolt Holes, Relubricatable, Non-Expansion, Cast Iron, Setscrew Locking Inner Ring, Steel Insert, Inch, 2-3/16" Bore Diameter

Dodge P2BSC203 Normal-Duty Pillow Block, 2 Bolt Holes, Relubricatable, Non-Expansion, Cast Iron, Setscrew Locking Inner Ring, Steel Insert, Inch, 2-3/16" Bore Diameterzoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
ApplicationGeneral Purpose
Ball bearing series211 series
Base to center height2.5000 in, 63.5 mm
Base to Center Height2.5 Inch | 63.5 Millime.
Bearing typeBall, ball
Bolt centerline range6 3/8 inch - 7 7/16 inch
Bolt Diameter0.6250 in
Bolt Spacing Maximum7.438 Inch | 188.925Mil.
Bolt Spacing Minimum6.375 Inch | 161.925Mil.
Bolt to bolt max7.4400 in, 188.976 mm
Bolt to bolt min6.3800 in, 162.052 mm
Bore2 3/16 in
Bore length2.2200 in, 56.388 mm
BrandDODGE
CategoryPillow Block Bearings
DutyStandard Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
FinishPowder coated
Global Part Number GPN522027
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
Housing optionCast Iron
Housing Style2 Bolt Pillow Block
Housing typeTwo-bolt pillow block
I.D.2 3/16 inch
Inch - MetricInch
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SC-203
Insert typeBall Bearing
Length Thru Bore1.844 Inch | 46.838 Mil.
LockingSet Screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
MaterialSteel
Max Speed2500 RPM
Measure systemImperial
Mounting Bolts5/8 Inch
Mounting MethodSet Screw
Nominal Bolt Center to .6.8 Inch | 171.5 Millim.
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
Package Quantity1
price$ 174.75 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
SealSingle lip
Seal optionDualGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentSetscrew
Shaft centerline height2 1/2 in
Shaft diameter2.1875 in
Standoff housingNo
Static load capacity6588 lbf, 29304.884 N
Suitable for high tempe.No
Suitable for washdownNo
Take-up frame sizeLD-40, TS-300
titleP2B-SC-203
TypePillow block 2-Bolt
UNSPSC31171511
Weight / kgm3.319
Weight / LBS8.9

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingP2B-SC-203148.541In StockDODGE7.3018148.54 @ 1
thumbzoomMRO Supply123389178.75114Dodge178.75 @ 1
thumbzoomapexindustrialautomation.comP2B-SC-203181.161In StockDodge181.16 @ 1
thumbzoomZoroG900415345231.991In StockDodge231.99 @ 1
