Koyo B-36

B007EDWJ0U

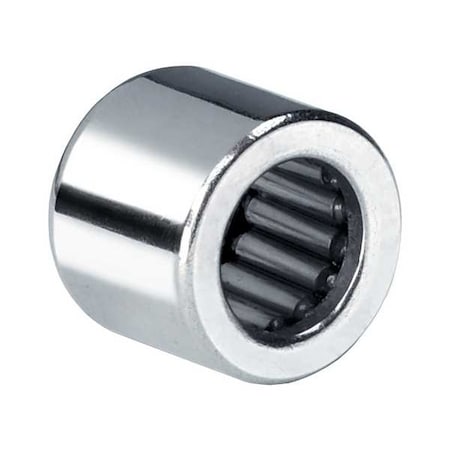

Koyo B-36 Needle Roller Bearing, Full Complement Drawn Cup, Open, Inch, 3/16" ID, 11/32" OD, 3/8" Width, 11000rpm Maximum Rotational Speed

Koyo B-36 Needle Roller Bearing, Full Complement Drawn Cup, Open, Inch, 3/16" ID, 11/32" OD, 3/8" Width, 11000rpm Maximum Rotational Speedzoom

Attributes

Key Value
ApplicationAutomobile Field, Drive.
Bearing DesignB
Bearing Industry Number36
Bearing TypeDrawn Cup Needle
Bore0.188 Inch | 4.775 Mill.
Bore Dia. (In.)1.875 in
Bore Dia. (mm)4.763 mm
Bore Diameter3/16 in
BrandKOYO
Cage MaterialSteel
Cage Material GradeNot Applicable
CategoryNeedle Non Thrust Rolle.
Closed EndNo
ClosureOpen
ComponentRoller Assembly with Ou.
Country of Origin (subj.Japan
Dynamic Load Capacity (.850 lb
Dynamic Load Capacity (.3,780 N
Dynamic Load Rating3.78 kN
Dynamic Radial Load Cap.850 lbf
EAN0605790215278
EnclosureOpen
Full ComplementYes
Global Part Number GPN591760
Harmonized Tariff Code8482.40.00.00
Inch - MetricInch
Inner Diameter0.19" (4.8mm)
ItemNeedle Roller Bearing
Lubricant MaterialOil
Lubrication OpeningsNot Applicale
Manufacturer NameKOYO
MaterialSteel
Maximum Speed11,000 RPM
Maximum Temperature248 Degrees F
Minimum Temperature-22 Degrees F
Needle Bearing TypeDrawn Cup Needle Roller.
Number of RowsOne
Number of Rows of Rolle.Single Row
Outer Diameter0.343" (8.7mm)
Outside Dia. (In.)0.3438 in
Outside Dia. (mm)8.733 mm
Outside Diameter0.344 Inch | 8.738 Mill.
Overall Width0.375 in, 0.375" (9.5mm)
price$ 6.96 / each
RetainerNo
Ring MaterialAlloy Steel
Ring Material GradeSUJ 2
Roller MaterialAlloy Steel
Roller Material GradeSUJ 2
RPM11000
Seal MaterialNot Applicable
Seal TypeNot Applicable, Open
Self AligningNo
SeparableNo
SeriesInch Series
Special FeaturesSnap Ring
StandardsANSI/ABMA 18.2, ASTM F2.
Static Load Capacity (L.950 lb
Static Load Capacity (N)4,230 N
Static Load Rating4.23 kN
Static Radial Load Capa.950 lbf
System of MeasurementInch
Thrust BearingNo
titleB-36
TypeDrawn Cup
UNSPSC31171512
UPC Code605790215278
Weight / kgm0.002
Weight / LBS0.005
Width0.375 Inch | 9.525 Mill.
Width (In.)0.375 in
Width (mm)9.53 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingB-365.921In StockKOYO0.00445.92 @ 1
us.rs-online.com720615087.731102Koyo7.73 @ 1
thumbzoomPurvisB-368.121In StockKoyo8.12 @ 1
thumbzoomZoroG5018000458.361In Stock10Koyo0.018.36 @ 1
factorysupplyoutlet.comAI89NP15.861In StockKOYO15.86 @ 1
