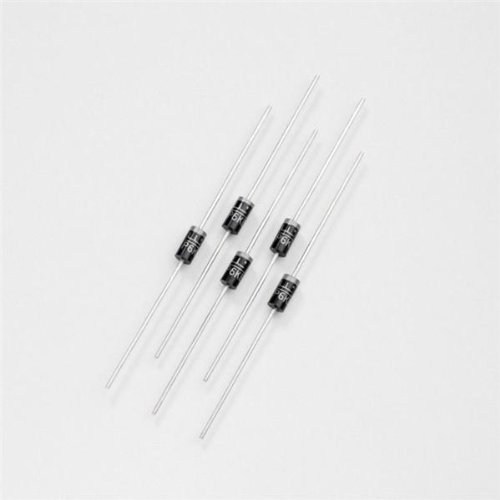

Littelfuse P6KE400CA

mpnP6KE400CA
brandname: Littelfuse
manufacturername: Littelfuse

Tvs Diodes - Transient Voltage Suppressors 342Vso 268Vac 1.1A

Tvs Diodes - Transient Voltage Suppressors 342Vso 268Vac 1.1A

zoom

Brand: Littelfuse
PartNumber: P6KE400CA
PackageQuantity: 50
Manufacturer: LITTELFUSE
Label: LITTELFUSE

Attributes

Key	Value
Applications	General Purpose
Bidirectional Channels	1
Breakdown voltage	400V
Breakdown Voltage	380 V
Capacitance @ Frequency	-
Case	DO15
Category	Circuit Protection
Clamping Voltage	548 V
Configuration	Single
Current - Peak Pulse (1.	1.1A
Current, Ratings	1.1 A
Diameter	3.6 mm
Dimensions	3.60 Dia. x 7.60 L mm
ESD Protection	Yes
ESD Voltage	15 (Air), 8 (Contact) kV
Features of semiconduct.	glass passivated
For Use With	Data/Comm, Industrial E.
Forward Current	1.1 A
Kind of package	bulk
Leakage current	1?A
Leakage Current	1 ?A
Length	0.299 in
Manufacturer	LITTELFUSE
Max. forward impulse cu.	1.1A
Max. off-state voltage	342V
Maximum Junction Temper.	175 ?C
Maximum Operating Tempe.	+150 ?C
Mfr	Littelfuse Inc.
Minimum Operating Tempe.	-55 ?C
Mounting	THT
Mounting Type	Through Hole
Number of Pins	2
Operating Temperature	-55?C ~ 175?C (TJ), -55.
Package	Tape & Reel (TR)
Package / Case	DO-204AC, DO-15, Axial
Package Type	DO-15
Part Status	Active
Peak Current	1.1 A
Peak pulse power dissip.	600W
Power - Peak Pulse	600W
Power Dissipation	600 W
Power Line Protection	No
Primary Type	Diodes
Product Header	P6KE Series Bidirection.
Reverse Current	5 uA @ 342 V
Reverse Standoff Voltage	342 V
Semiconductor structure	bidirectional
Series	P6KE, P6KE Series
Stand Off Voltage	342 V
Supplier Device Package	DO-204AC (DO-15)
Suppressor Type	Voltage
Surge Current	100 A
Temperature Operating R.	-55 to +150 ?C
Termination	Lead Wires
Test Current	1 mA
Tolerance	?5%
Type	TVS, Zener
Type of diode	TVS
Voltage - Breakdown (Mi.	380V
Voltage - Clamping (Max.	548V
Voltage - Reverse Stand.	342V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	48F5883	0.259	4000	50		LITTELFUSE		0.259 @ 50
	TME	P6KE400CA-B-LF	0.288	3	50		LITTELFUSE		0.288 @ 50
	us.rs-online.com	70184808	0.42	4000	50		Littelfuse		0.42 @ 4000
	Onlinecomponents.com	P6KE400CA	0.51	1	4788		LITTELFUSE		0.51 @ 50
	Digi-Key	688126	0.6969	8000	50		Littelfuse Inc.		0.6969 @ 50
