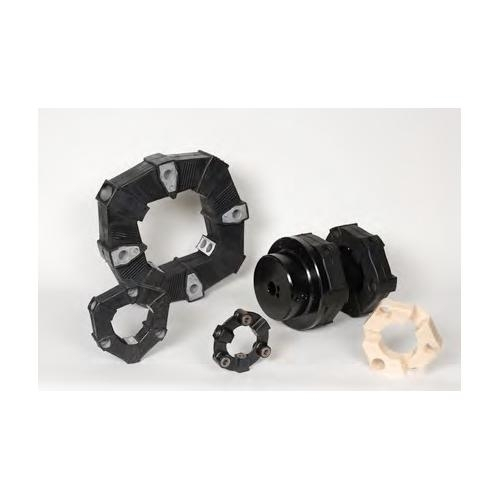

Lovejoy 24508 Size LF30 Torsional Coupling Cylinder, Inch, 0.71" Rough Stock Bore, 7.87" Outside Diameter, 5.51" Flange Diameter

Lovejoy 24508 Size LF30 Torsional Coupling Cylinder, Inch, 0.71" Rough Stock Bore, 7.87" Outside Diameter, 5.51" Flange Diameterzoom

Attributes

Key Value
Allowable Continuous Vi.1770.00 in-lb, 1770.00 .
Bore TypeRough Stock Bore
ColorMetallic
Coupling SizeLF30
Coupling TypeTorsional
Cubic in ches40.36136 in ^3, 40.3613.
DescriptionLF30 HUB CYL .71 RSB
Description:LF30-HUB CYL-.71 RSB;
Dimension HD3.94 in 100 mm, 3.94 in.
Dynamic Torsional Stiff.69000.00 in-lb /rad, 69.
Hub StyleCylindrical
Length thru Bore2.600 in (66.00 mm), 2..
ManufacturerLOVEJOY INC
Max. Angular Misalignme.3.00 ?
Max. Bore (Dimensions I.2.440 in 65 mm, 2.440 i.
Max. Parallel Misalignm.0.080 in 2.00 mm, 0.080.
Max. Speed4000 rpm
Max. Torque12400.00 in-lb, 12400.0.
MFG Part #:68514424508
Min. Bore (Dimensions I.0.810 in (20.00 mm), 0..
Nominal Torque4400.00 in ?lb, 4400.00.
Normal Temperature Range-40 to 194 ?F
Rough Stock Bore Size0.710 in
Shore Hardness60A
Static Angular Stiffness80.00 in ?lb /deg, 80.0.
Static Axial Stiffness1090.00 lb/in
Static Radial Stiffness4280.00 lb/in
Supplier:LOVEJOY INC
Thread (Dimension T)M16
UPC:685144245083
Weight8.55 lb
Wind-Up Angle at Max. T.14.00 ?
Wind-Up Angle at Nomina.5.00 ?

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepot68514424508281.61In StockLovejoy8.55281.6 @ 1
thumbzoomheavydutydepot.com68514424508281.61In StockLovejoy281.6 @ 1
thumbzoomusmegastore.com68514424508284.11In StockLovejoy8.55284.1 @ 1
thumbzoomRadwell68514424508320.01In StockLOVEJOY320.0 @ 1
cbtcompany.com68514424508342.531In StockLovejoy342.53 @ 1
kscdirect.comLOV 68514424508359.821In StockLOVEJOY INC359.82 @ 1
thumbzoommidwestapplianceparts.com68514424508-LJ-P406.431In StockLovejoy406.43 @ 1
thumbzoomRaptor SuppliesAK6ZYV495.879931In StockLOVEJOY495.87993 @ 1
Airline HydraulicsLOVEJOY 68514424508562.371In StockLOVEJOY562.37 @ 1
