Lovejoy 68514424513

B013T0OJIQ

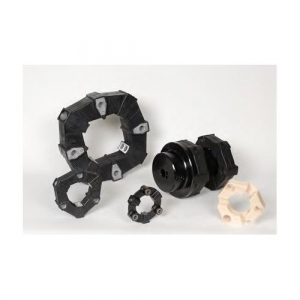

Lovejoy 68514424513 LF Series LF 90 Flange Hub, 1.18" Rough Stock Bore, 3.15" Length Through Bore, 4.92" OD

Lovejoy 68514424513 LF Series LF 90 Flange Hub, 1.18" Rough Stock Bore, 3.15" Length Through Bore, 4.92" ODzoom

Attributes

Key Value
Allowable Continuous Vi.3980.00 in ?lb
Bore TypeRough Stock Bore
ColorMetallic
Coupling SizeLF90
Cubic in ches195.10124 in ^3
DescriptionLF90 HUB FLNG 1.18 RSB
Description:LF90-HUB FLNG-1.18 RSB;
Dimension FD5.510 in 139.95 mm
Dimension FOD7.870 in
Dynamic Torsional Stiff.141600.00 in ?lb /rad
Hub Diameter4.920 in 125.00 mm
Length thru Bore3.150 in 80.00 mm
ManufacturerLOVEJOY INC
Max. Angular Misalignme.3.00 ?
Max. Bore (Dimensions I.4.250 in 107.95 mm
Max. Parallel Misalignm.0.080 in 2.00 mm
Max. Speed3600.00 rpm
MFG Part #:68514424513
Min. Bore (Dimensions I.1.190 in 30.00 mm
Nominal Torque9700 in ?lb
Operating Temperature R.-40 to 194 ?F
Rough Stock Bore Size1.180 in
Securing Torque for Mou.27900.00 in ?lb
Shore Hardness60A
Speed3600.00 rpm
Static Angular Stiffness150.00 in ?lb /deg
Static Axial Stiffness1260.00 lb/in
Static Radial Stiffness5700.00 lb/in
StyleFlange
Supplier:LOVEJOY INC
Thread (Dimension T)M20
TypeTorsional
UPC:685144245137
Weight35.00 lb
Wind-Up Angle at Max. T.14.00 ?
Wind-Up Angle at Nomina.5.00 ?

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepot685144245131099.01In StockLovejoy35.01099.0 @ 1
thumbzoomheavydutydepot.com685144245131099.01In StockLovejoy1099.0 @ 1
thumbzoomusmegastore.com685144245131127.01In StockLovejoy35.01127.0 @ 1
AmazonSCB013T0OJIQ1168.011In StockLovejoy1168.01 @ 1
kscdirect.comLOV 685144245131412.031In StockLOVEJOY INC1412.03 @ 1
thumbzoommidwestapplianceparts.com68514424513-LJ-P1595.021In StockLovejoy1595.02 @ 1
thumbzoomRaptor SuppliesAK7AAQ1945.9544131In StockLOVEJOY1945.954413 @ 1
Airline HydraulicsLOVEJOY 685144245132206.951In StockLOVEJOY2206.95 @ 1
