Molex 878325622

mpn87832-5622
brandname: Molex Incorporated
manufacturername: Molex Incorporated

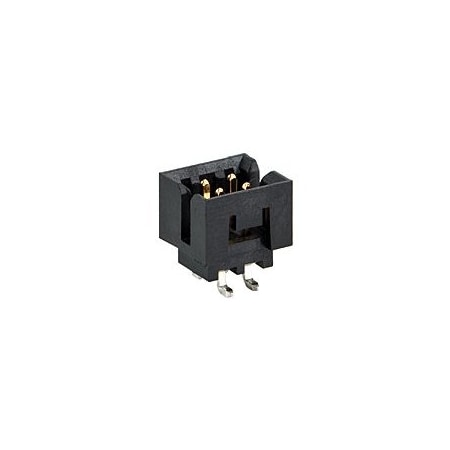

878325622, Conn Shrouded Header (4 Sides) HDR 14 POS 2mm Solder ST Top Entry SMD Milli-Grid? T/R (10 Items)

Brand: Molex
PartNumber: 878325622
Model: 878325622
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Mfr Part Numb.	87832-5622
Alternate Part No.	538-87832-5622
Applications	Automotive, General Pur.
Base Product Number	087832
Brand	Molex
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Plating	Gold
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Current Rating (Amps)	-
Description	CONN HEADER SMD 14POS 2.
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM3594TR-ND - Tape & Re.
Family Name	Milli-Grid
Fastening Type	Latch Holder
Features	Surface Mount Compatibl.
Flammability Rating	UL 94V-0
Hole Center to Center	2 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.252" (6.40mm)
Insulation Material	Polyamide (PA), Nylon, .
Manufacturer	Molex
Manufacturer Part No.	87832-5622
Manufacturer Product Nu.	0878325622
Manufacturer Standard L.	24 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	125V
Mfr	Molex
Mounting Type	Surface Mount
Number of Circuits	14
Number of Contacts	14
Number of Positions	14
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 105?C
Orientation	Vertical
Overall Contact Length	-
Package	Tape & Reel (TR)
Packaging	Reel
Part # Aliases	0878325622
Pitch	2 mm, 2.00 mm (0.079")
Pitch - Mating	0.079" (2.00mm)
Plating Material	Gold
Primary Type	Board Mount
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing - Mating	0.079" (2.00mm)
Series	87832 Series, Milli-Gri.
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder, Surface Mount
Termination Style	SMD
Tradename	Milli-Grid
Type	Vertical Header, Shroud.
Voltage Rating	-, 125 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Rutronik	COREC35523	0.687	10000	145	Molex	0.687 @ 10000
Sager Electronics	0878325622	0.98	2000	9500	Molex	0.98 @ 2000
Win Source	87832-5622	1.077	50	3500	Molex, LLC	1.077 @ 50
RS Delivers	207-6900	1.2156	1	1500	Molex	1.2156 @ 1
Verical	878325622	1.225	2000	1750	Molex	1.225 @ 2000
Onlinecomponents.com	87832-5622	1.31	500	300	Molex	1.31 @ 500
Newark	97Y7418	1.48	500	145	MOLEX	1.48 @ 500
Power and Signal Group	87832-5622	1.6745	2000	145	Molex	1.6745 @ 2000
TME	MX-87832-5622	2.14	1	561	MOLEX	2.14 @ 1
Digi-Key	2404880	3.44	1	45620	Molex	3.44 @ 1
us.rs-online.com	70374264	3.47	1	500	Molex Incorporated	3.47 @ 1
swatee.com	87832-5622	4.53	1	582	Molex	4.53 @ 1
Zoro	G4030604	1345.0	1	145	Molex	1345.0 @ 1
