- mpn52BT6G9JBV
- brandname: Siemens
- manufacturername: Siemens

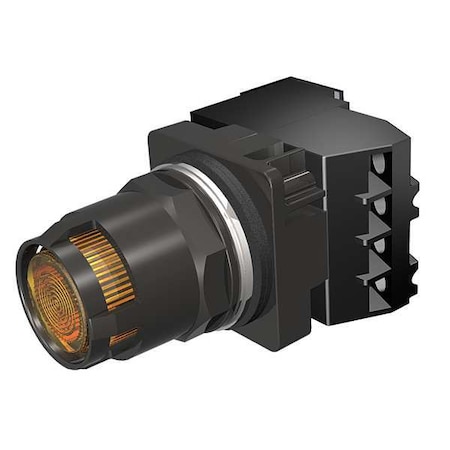

Siemens 52BT6G9JBV Heavy Duty Illuminated Pushbutton Unit, 30mm, Amber, Extended Button, Momentary, 1NC Contact, 120V AC Transformer, LED Bulb, BlackMax, Watertight/Oiltight
- Brand: SIEMENS
- PartNumber: 52BT6G9JBV
- Model: US2:52BT6G9JBV
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Siemens
- Label: Siemens
Attributes
| Key | Value |
|---|
| (Select First, Then App. | - |
| Action | Maintained / Momentary |
| Actuator Type | Pushbutton, Round |
| Basic Material | Epoxy |
| Bezel | Black Epoxy Coated Zinc. |
| Category | Switches, Indicator Or . |
| Color | Amber |
| Contact Form | 1NC |
| Contact Rating | 10A @ 600V AC |
| Contact Type | 1NC |
| Country of Origin | US |
| Estimated Weight | 1.00 |
| Head Material | Plastic |
| Illumination | Illuminated |
| Item | Illuminated Push Button |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | 120V AC |
| Lamp Type | Led |
| Lamp Voltage | 6V AC |
| Manufacturer | Siemens Industry, Inc.,. |
| Mfr | Siemens |
| NEMA Contact Rating Des. | A600/P600 |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Number of Operators | 1 |
| Package | Box |
| Panel Cutout Dimensions | - |
| Part Number | 52BT6G9JBV |
| Product Status | Active |
| Product Type | Illuminated Push Button |
| Replacement Lamp | Mfr. No. 52AEB4 |
| Requires | Contact Block(s), Illum. |
| Series | - |
| Size | 30 mm |
| Standards | CSA, UL |
| Terminal Connection | Pressure Plate |
| Type | - |
| Type of Operator | Round Extended Guarded . |
| UNSPSC | 39121534 |
| UPC | 887621497637 |
| Voltage | 120V AC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6350827 | 109.0 | 1 | In Stock | 15 | Siemens | 0.52 | 109.0 @ 1 |
 | sustainablesupply.com | C1172802 | 170.42 | 1 | In Stock | | Siemens | 0.52 | 170.42 @ 1 |
 | motorsandcontrol.com | 52BT6G9JBV | 216.36 | 1 | In Stock | | Siemens | 1.0 | 216.36 @ 1 |
| Dale-Electric | 52BT6G9JBV | 219.6 | 1 | In Stock | | Siemens Industry, Inc. | | 219.6 @ 1 |
| Digi-Key | 15258449 | 245.79 | 1 | In Stock | | Siemens | | 245.79 @ 1 |
