- mpn15PMPUWOP
- brandname: Sje-Rhombus
- manufacturername: Sje-Rhombus

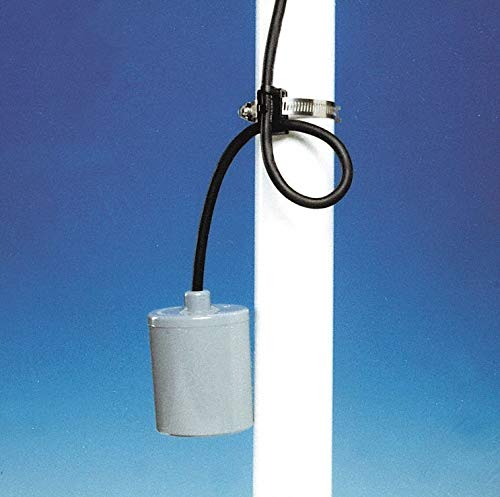

Sje-Rhombus 15PMPUWOP - Float Switch NC 120/230VAC Wire Leads
- Binding: Misc.
- Manufacturer: Sje-Rhombus
- Label: Sje-Rhombus
Attributes
| Key | Value |
|---|
| Agency Compliance | UL, CSA, Water Quality,. |
| Amps | 15A, 15 A |
| Body Material | - |
| Brand | Sje-Rhombus |
| Compliance | UL, CSA |
| Connection | Bare Lead |
| Contact Default | Normally Closed |
| Control Range | - |
| Cord Length | 15 ft, 15 ft. |
| Country of Origin (subj. | Unknown |
| Electrical Connection | Wire Leads |
| Electrical Connection (. | Wire Leads |
| Electrical Connection -. | Wire Leads |
| Fitting | - |
| Float Dia. | 3-1/16", 3 1/16 in |
| Float Dia. (In.) | 3-3/64, 3-1/16 |
| Float Length | 3-9/16", 3 9/16 in |
| Float Length (In.) | 3-9/16 |
| Float Material | PVC |
| Float Switch Contact Fo. | Normally Closed |
| Float Switch Cord Length | 15 ft. |
| Float Switch Float Mate. | PVC |
| Float Switch Off Point | 45 Degrees Above Horizo. |
| Float Switch On Point | 45 Degrees Below Horizo. |
| For Use With | Pumps Up to 15A, Pumps |
| Height | 3-9/16", - |
| HP @ 1 Phase - 115V | 3/4 or Less |
| HP @ 1 Phase - 230V | 2 or Less |
| Includes | Mounting Clamp Assembly. |
| International Shipping | No |
| Item | Float Switch, Float Swi. |
| Length | 3-9/16", - |
| Max. Liquid Temp. | 140 Degrees F |
| Max. Pressure | 20 psi |
| Max. Pressure (PSI) | 20, - |
| Max. Water Level Adjust. | -, 36 |
| Max. Wattage | - |
| Maximum Tether Length | 24 in, 24" |
| Min. Water Level Adjust. | -, 7 |
| Minimum Tether Length | 3-1/2", 3 1/2 in |
| Mounting Bracket Materi. | ABS, Stainless Steel, A. |
| Mounts | Mounting Clamp Assembly |
| Mpn | 15PMPUWOP |
| Nominal Voltage | 110V AC, 220V AC |
| Off Point | 45 Degrees Above Horiz. |
| On Point | 45 Degrees Below Horiz. |
| Operation | NC |
| Overall Length (In.) | - |
| Prop 65 | WARNING: Cancer and Rep. |
| Pumping Range Min./Max. | 7 to 36 |
| Rated Voltage | 120/230VAC, 120/230V AC |
| Series | PumpMaster Plus(R) |
| SKU | ZO-G1995555 |
| Specific Gravity | - |
| Stem Length (In.) | - |
| Stem Material | - |
| SubCategory | Pumps |
| Switch Actuation | Tether Float |
| Switch Type | Normally Closed |
| Tether Length Min.-Max. | 3-1/2" to 24" |
| Turns Off At | 45 Degrees Above, Appr. |
| Type | Tether, Wide Angle |
| VA Rating | - |
| Voltage | 120/230VAC, 115/230 |
| Width | - |
| Wire Gauge | 14 |
| Wire Lead | - |
