- mpn50F1618
- brandname: Switchcraft
- manufacturername: Switchcraft

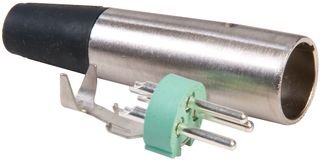

SWITCHCRAFT AA3M CONNECTOR, XLR, PLUG, 3POS
- Brand: Switchcraft
- PartNumber: 50F1618
- Model: 50F1618
- PackageQuantity: 1
- Manufacturer: SWITCHCRAFT
- Label: SWITCHCRAFT
Attributes
| Key | Value |
|---|
| Angle | Straight |
| Applications | Audio, Instrumentation |
| Backshell Material, Pla. | Zinc, Nickel |
| Base Product Number | - |
| Body Material | Zinc |
| Cable Opening | 0.210" ~ 0.300" (5.33mm. |
| Category | Connectors, Interconnec. |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Finish Thicknes. | - |
| Contact Material | Copper Alloy, Brass |
| Contact Plating | Silver |
| Contact Resistance | 50 mOhms |
| Current Rating | 15 A |
| Current Rating (Amps) | 15A |
| Description | CONN RCPT MALE XLR 3P S. |
| Detailed Description | 3 Position Circular Con. |
| Digi-Key Part Number | SC2763-ND |
| Fastening Type | Latch Lock |
| Features | Backshell, Cable Clamp,. |
| Ingress Protection | - |
| Insert Material | Polyester |
| Insulation Material | Molded Thermoplastic (I. |
| Insulation Resistance | 1000 MegaOhms |
| Insulation Type | Insulated |
| Manufacturer | Switchcraft Inc. |
| Manufacturer Product Nu. | AA3M |
| Material Flammability R. | - |
| Mfr | Switchcraft Inc. |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line),. |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Operating Force | Molded Thermoplastic (I. |
| Operating Temperature | - |
| Orientation | Keyed |
| Package | Bulk |
| Primary Material | Metal |
| Primary Type | XLR |
| Product Header | Q-G? Cord Plug Audio Co. |
| Product Status | Active |
| Series | AA Series, Q-G? AA |
| Shell Finish | Nickel |
| Shell Material | Die-Cast Zinc, Zinc |
| Shell Size - Insert | XLR |
| Shell Size, MIL | - |
| Shielding | - |
| Termination | Clamp, Solder Cup |
| Type | Plug |
| Voltage Rating | 125VAC, 125 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | arcade-electronics.com | SWI-AA3M | 2.81 | 1 | 35 | | Switchcraft | | 2.81 @ 1 |
| Heilind Electronics | AA3M | 3.7379 | 50 | 64 | | SWITCHCRAFT | | 3.7379 @ 50 |
 | Full Compass | AA3M | 4.29 | 1 | 23 | | SWITCHCRAFT | | 4.29 @ 1 |
 | bhphotovideo.com | SWAA3M | 4.4576 | 1 | 35 | | Switchcraft | 11.0 | 4.4576 @ 1 |
| Hawk Electronics | AA3M | 4.78 | 100 | In Stock | | Switchcraft | | 4.78 @ 100 |
 | Markertek | AA3M | 5.6 | 1 | 23 | | Switchcraft | | 5.6 @ 1 |
 | Newark | 50F1618 | 5.73 | 1 | 78 | | SWITCHCRAFT/CONXALL | | 5.73 @ 1 |
| Mouser | 502-AA3M | 6.96 | 1 | 36 | | Switchcraft | | 6.96 @ 1 |
| us.rs-online.com | 70214204 | 7.99 | 1 | 23 | | Switchcraft | | 7.99 @ 1 |
 | Digi-Key | 1289318 | 8.19 | 1 | 23 | | Switchcraft Inc. | | 8.19 @ 1 |
| Onlinecomponents.com | AA3M | 9.04 | 1 | 33 | | SWITCHCRAFT | | 9.04 @ 1 |
| Verical | AA3M | 9.78 | 7 | 80 | | Switchcraft | | 9.78 @ 7 |
| AmazonSC | B00DEEDJE8 | 15.82 | 1 | 35 | | Switchcraft | | 15.82 @ 1 |
