TE Raychem GDH10SATR04

mpn1977831-5
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

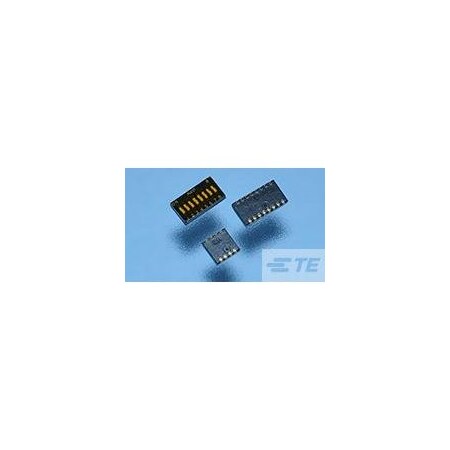

TE Raychem Connector

TE Raychem Connector

zoom

Brand: TE Raychem
PartNumber: GDH10SATR04
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Actuator Color	White
Actuator Level	Flush, Recessed
Actuator Style	Recessed Rocker
Actuator Type	Slide (Standard)
Auto-Insertable	No
Base Product Number	GDH10
Body Material	Polyphenylene Sulfide (.
Category	Switches
Centerline	1.27 mm [ .05 in ]
Circuit	SPST
Configuration (Pole-Thr.	Single Pole - Single Th.
Contact Base Material	Copper Alloy
Contact Current Rating .	0.1
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Mating Area Pla.	Gold
Current Rating (Amps)	25mA
Description	SWITCH SLIDE DIP SPST 2.
Detailed Description	Dip Switch SPST 10 Posi.
Digi-Key Part Number	GDH10SATR04-ND - Tape &.
Electrical Life	1,000 Cycles
Features	Tape Seal
Height	2.2 mm [ .093 in ]
Height Above Board	0.093" (2.35mm)
Housing Color	Black
Housing Material	Polyphenylene Sulfide (.
Length	13.83 mm [ .544 in ], 0.
Low Profile	Yes
Manufacturer	TE Connectivity ALCOSWI.
Manufacturer Product Nu.	GDH10SATR04
Manufacturer Standard L.	35 Weeks
Mechanical Life	1,000 Cycles
Mfr	TE Connectivity ALCOSWI.
Mounting Type	Surface Mount
Number of Positions	10
Number of Switches	10
Operating Temperature	-30?C ~ 85?C
Operating Temperature R.	-30 to 85
Package	Tape & Reel (TR)
Pitch	0.050" (1.27mm), Half
Product Status	Active
Product Type	Switch
Seal Type	Tape
Sealed	Yes
Series	GDH
Solder Tail Contact Pla.	Gold over Nickel
Switch Type	DIP
Termination Style	J Lead
UL Flammability Rating	UL 94V-0
Voltage Rating	24VDC
Voltage Rating (VDC)	50
Washable	Yes

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY ALCOSWITCH GDH10SATR04	1.84	30	3161		TE CONNECTIVITY / ALCOSWITCH		1.84 @ 30
	Digi-Key	4168408	2.95	30	3161		TE Connectivity ALCOSWITCH Switches		2.95 @ 30
	RS Delivers	791-7615	4.308	1	25		TE Connectivity		4.308 @ 25
	Newark	73W9210	5.06	20000	25		ALCOSWITCH - TE CONNECTIVITY		5.06 @ 20000
	Onlinecomponents.com	GDH10SATR04	5.45	1	3612		TE Connectivity / Alcoswitch Brand		5.45 @ 25
	Zoro	G400946608	70.5	1	25		Alcoswitch		70.5 @ 25
