TE Connectivity 1-1747416-2

B096T23C99

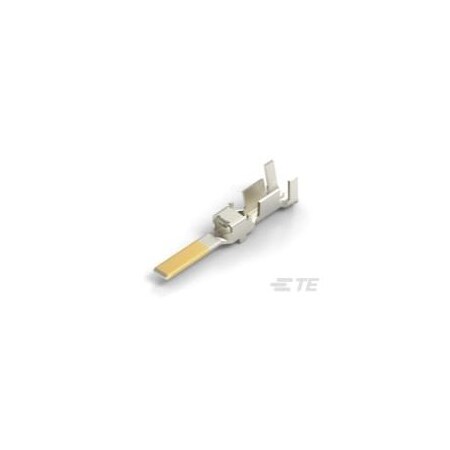

Contact PIN Crimp ST Cable Mount 14AWG T/R

Contact PIN Crimp ST Cable Mount 14AWG T/Rzoom

Attributes

Key Value
Accepts Wire Insulation.2.9 ? 4.1?mm?[?.114 ? ..
ApplicationWire and Cable
Barrel TypeOpen Barrel
Base Product Number1747416
CategoryConnectors, Interconnec.
Connection MaterialCopper Alloy
Connection TypeLocking Lance, Crimp
Connector & Contact Ter.Wire & Cable
Connector SystemWire-to-Wire
Contact Base MaterialCopper Alloy
Contact ClassificationPower
Contact Current Rating .24
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact Mating Area Pla.Gold
Contact Mating Area Pla..38??m?[?15??in?]
Contact Plating MaterialNickel
Contact RetentionWith
Contact Retention TypeLocking Lance
Contact TerminationCrimp
Contact TypeTab
Contact Underplating Ma.Nickel
DescriptionDYNAMIC D4200 TAB CONT .
Detailed DescriptionTab Contact Gold 12-14 .
Digi-Key Part Number17-1-1747416-2TR-ND - T.
For Use WithReceptacle (Socket) Con.
Glow Wire RatingStandard Part - Not Glo.
High CurrentYes
Insulation Dia0.114 to 0.161 in
ItemContact
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1747416-2
Manufacturer Standard L.42 Weeks
Max. Temp.221 Degrees F
Max. Voltage600V AC/DC
MfrTE Connectivity AMP Con.
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage600
Overall Length1 in
Overall Length?:.25.5?mm?[?1?in?]
PackageTape & Reel (TR)
Package Quantity1
Packaging MethodReel
Packaging Quantity2000
Pin or SocketTab
Product StatusActive
Product TypeContact
SeamOpen Barrel
SeriesDynamic D-4200
Terminal TypeTab
Termination Method to W.Crimp
TypePower
Underplate Material Thi.1.3??m?[?51.18??in?]
Wire Gauge12-14 AWG
Wire Range14 to 12 AWG
Wire Range MarkL
Wire TypeStranded, Discrete Wire
Wire/Cable Size14 ? 12 AWG, 2.08 ? 3.6.
Wire/Cable TypeDiscrete Wire, Stranded

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1-1747416-20.7220002000TE CONNECTIVITY/AMP BRAND0.72 @ 2000
thumbzoomNewark12AJ66460.9126000109AMP - TE CONNECTIVITY0.912 @ 6000
thumbzoomDigi-Key104624440.96620004000TE Connectivity AMP Connectors0.966 @ 2000
thumbzoomZoroG1009417291800.01109Te Connectivity1800.0 @ 1
