- mpn26A15L14WP
- brandname: Dodge
- manufacturername: Dodge

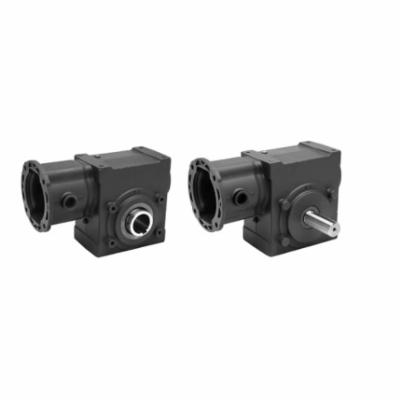

DODGE 26A15L14WP TIGEAR-2 REDUCER W/ WHITE PAINT
- Brand: Dodge
- PartNumber: 26A15L14WP
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.8700 in, 72.898 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance. |
| Center to end of shaft . | 5.6300 in, 143.002 mm |
| Finish | White epoxy |
| Gearbox component type | Gearbox |
| Horsepower rating input | 3.6200 hp, 2.699 kW |
| Horsepower rating output | 3.1600 hp, 2.356 kW |
| Housing material | Cast iron |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 3.62 |
| Input style | 3-Piece coupled |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 117 rpm |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 6.3800 in, 162.052 mm |
| Mounting bolt pattern w. | 3.3800 in, 85.852 mm |
| Nominal ratio | 15 |
| Output | Left side solid output . |
| Output bore/shaft diame. | 1.25 in |
| Output horse power | 3.16 |
| Output shaft center to . | 8.6100 in, 218.694 mm |
| Output style | Left |
| Overhung load | 1610 lbf, 7161.637 N |
| Paint type | White epoxy |
| Paint/coating | White |
| Rated torque output | 1708 in/lb, 1708.0 in/lb |
| Ratio | 15 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.1250 in, 28.575 mm |
| Shaft length output | 2.6700 in, 67.818 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 4.1500 hp, 3.095 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Walker Industrial | 26A15L14WP | 1199.07 | 1 | In Stock | 10 | Dodge | | 1199.07 @ 1 |
 | MRO Supply | 151759 | 1358.93 | 1 | In Stock | | Dodge | | 1358.93 @ 1 |
 | Purvis | 26A15L14WP | 1471.2 | 1 | In Stock | | Dodge | | 1471.2 @ 1 |
| factorysupplyoutlet.com | IG11EZ | 1843.5 | 1 | In Stock | 25 | DODGE | | 1843.5 @ 1 |
