GRAINGER APPROVED 4FMX9

B01M13EPUA

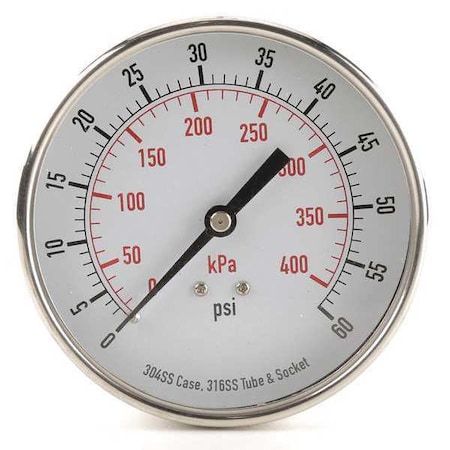

Pressure Gauge, Test, 3-1/2 in

Pressure Gauge, Test, 3-1/2 inzoom

Attributes

Key Value
Accuracy+/-3-2-3%
Accuracy ScaleMid-Scale
Ambient Operating Tempe.-40 Degrees to 150 Deg.
Basic Gauge Case Materi.Stainless Steel
Basic Gauge Lens Materi.Plastic
Basic Gauge Sensor Mate.Stainless Steel
Basic Gauge Socket Mate.Stainless Steel
Basic Gauge Wetted PartsStainless Steel
Bezel MaterialCrimped Stainless Steel
Blowout Safety BackNo
Calibration Certificate.No
Case ColorSilver
Case Material - GaugeStainless Steel
Cleaned for Oxygen Serv.No
ColorStainless Steel
Connection LocationBack, Center Back
Connection Size1/4" NPT, 1/4 in NPT
Country of Origin (subj.China
Dial ColorWhite
Dial Size (In.)3-1/2
Dry Dampening FeatureNone
Field FillableNo
For Use WithAir, Water, and Oils in.
Freeze Resistant Moveme.No
Gauge Accuracy+/-3-2-3%
Gauge ApplicationTest
Gauge Case ColorStainless Steel
Gauge Case LiquidNone
Gauge Case Material304 Stainless steel
Gauge Connection Locati.Center Back
Gauge Connection Size1/4 in, 1/4"
Gauge Connection TypeMNPT
Gauge Lens MaterialAcrylic
Gauge Nominal Dial Size3-1/2", 3 1/2 in
Gauge Panel MountableNo
Gauge Primary Range Sma.1
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 60, 0 - 60
Gauge Secondary Range U.kPa
Gauge Secondary Range V.0 to 400
Gauge Sensor Material316 Stainless Steel
Gauge Socket Material316 Stainless Steel
Gauge Wetted PartsStainless Steel
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
IP/NEMA RatingNot Rated
ItemPressure Gauge, Commerc.
Lens MaterialAcrylic
Lens Material - GaugePlastic
Liquid FilledNo
Liquid-Filled CaseNo
Material304 Stainless steel
Max. Pressure (PSI)60
Nominal Dial Size3 1/2 in
Non-SparkingNo
Operating Temp. Range-40 Degrees to 150 Deg.
Panel-MountableNo
Pressure and Vacuum Gau.Pressure Gauge
Pressure Gauge TypeGeneral Purpose Dial Pr.
Pressure Range TypePressure
Primary Graduations1
Primary Pressure Range0 to 60
Primary Scale Minor Gra.1
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Center Back
Process Connection Size1/4 in
Process Connection TypeNPT
Range0 to 60 psi, 0 to 400 k.
Removable BezelNo
Scale TypeDual
Secondary Pressure Range0 to 400
Secondary Range0 to 400 kPa
Secondary Scale UnitskPa
Sensor Material316 Stainless Steel
Smallest Graduation1 psi
Socket Material316 Stainless Steel
Vibration ResistanceNone

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG004208629.751In StockZoro Select0.429.75 @ 1
grainger.caGGF4FMX957.43387651In StockGRAINGER APPROVED0.457.4338765 @ 1
