Hubbell HBL9462C

B0078R6UA2

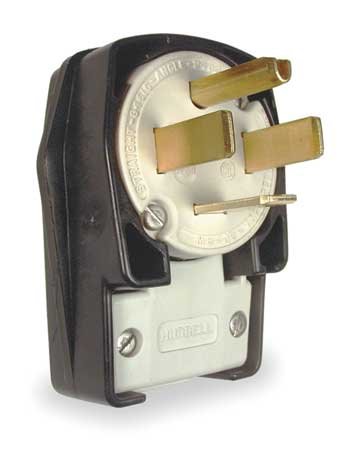

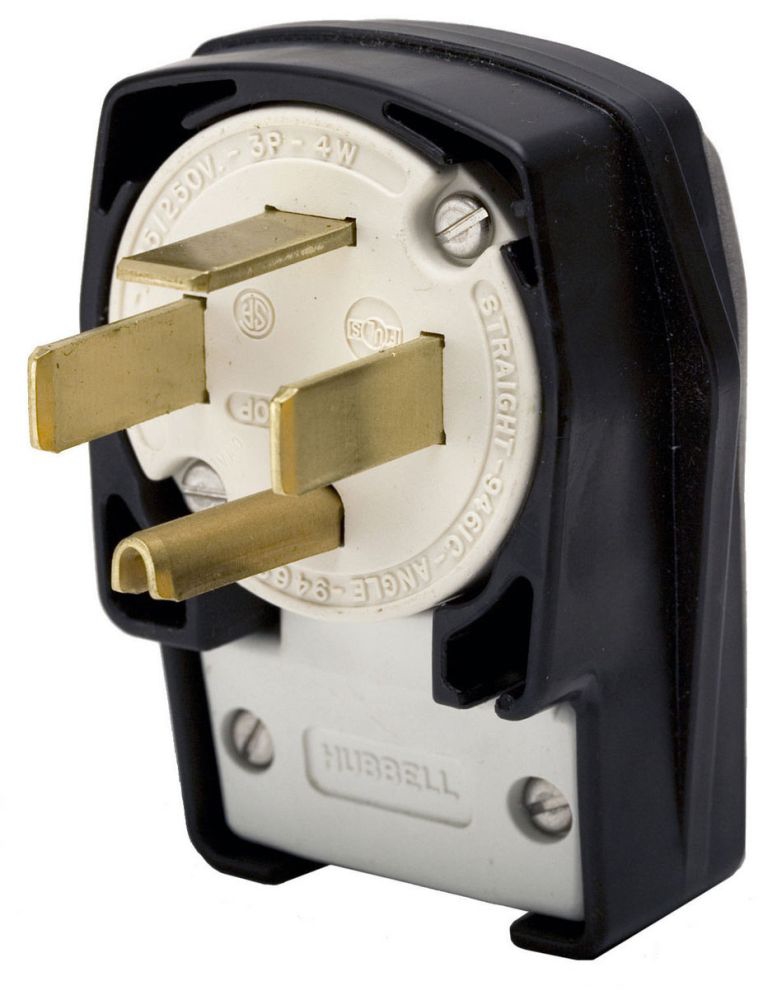

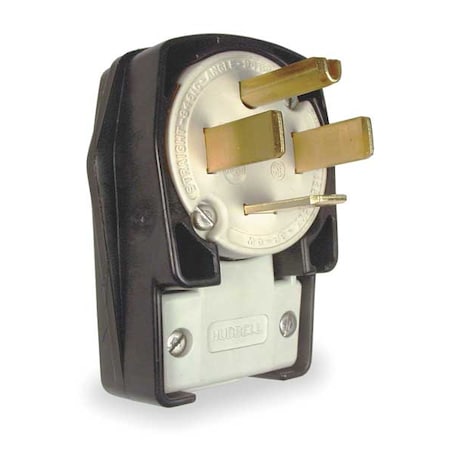

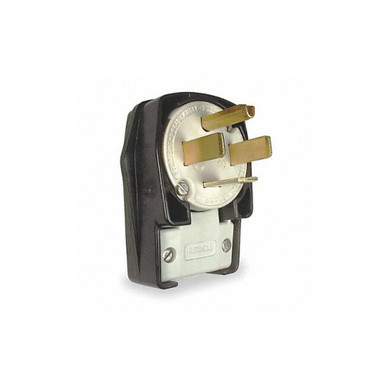

Angle Plug, 14-60P, 60A, 125/250V

Angle Plug, 14-60P, 60A, 125/250Vzoom

Attributes

Key Value
Amperage60 A
Amperage Rating60A, 60 A
Amps - Plugs and Recept.60 A
AntimicrobialNo
ApprovalsCSA, UL
Body Length3.38 in
Body TypeAngled
BrandHubbell
Carton Quantity5 EA
ColorBlack/White, Black, Whi.
Color FamilyBlack
CommentsIndustrial/Commercial
Connection OrientationAngled
Cord dia625 in-1.310in
Cord range0.625 in-1.310 in
Cord Range0.625"-1.310"
Cord Size0.625 in to 1.310 in
Corrosion ResistantNo
Country of OriginUS - United States
Current / amperage rati.60 A
Current / Amperage Rati.60 A
Current Rating15 A, 60 A
Current rating60 A
Current Stock47
Dielectric StrengthWithstands 2,000V minim.
Dielectric strengthWithstands 2,000V minim.
Dimensions3.38 in x 4.5 in x 2.37.
ECCNEAR99
Family SeriesHubbell Plugs & Recepta.
For Maximum Cable Diame.1.31 in
For Minimum Cable Diame.0.625 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight0.85 lbs
GroundingGrounded
Height2.37 in
Horsepower - Maximum10
Horsepower Rating3 hp
Housing ColourBlack
Housing MaterialNylon
HP3
IlluminatedNo
Industry Standard(s)UL Listed To UL 498 Fil.
Insulation MaterialNylon
International ShippingNo
IP RatingIP20
ItemAngle Straight Blade Pl.
Item - Plugs and Recept.Angle Straight Blade Pl.
Item NumberHBL9462C
Length3.38 in, 3.28 in
ManufacturerHubbell
Manufacturer Part NumberHBL9462C
MarketCommercial, Industrial
MaterialNylon
Max HP3
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size4 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
MpnHBL9462C
NEMA Configuration5-15R
NEMA Plug Configuration14-60P
NEMA Plug Configuration.14-60P
Nema Rating14-60P
Net Weight0 lbs
No. of Poles3
No. of Wires4
Number of Blades4
Number of poles3-Pole
Number of Poles3, 2
Number Of Poles3-Pole
Number Of Wires4-Wire
Number of Wires3, 4
Number of wires4-Wire
Operating temperatureMaximum continuous 75C .
Operating TemperatureMaximum continuous 75?C.
Phase1, Single
Phase - Plugs and Recep.3
PolarizedYes
Resistance PropertiesCorrosion Resistant
SKUZO-G0626202
StandardsUL Listed to UL498 File.
SubCategoryElectrical
TypePlug, Plugs
UNSPSC39121402
UPC783585015361
VoltageBlack, 125 V, 250 V, 12.
Voltage - Plugs and Rec.125/250V AC
Voltage Rating250 V, 125/250V AC
Voltage Rating Descript.125/250 V
Voltage rating descript.125/250 V
WatertightNo
Weather ResistantNo
Weight0.6 lb
Width1.81 in, 4.5 in
Width (in)4.5
Wire Connection TypeScrew Terminals
Wire size#12 AWG to #4 AWG
Wire Size#12 AWG to #4 AWG, #12 .
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL9462C88.0215HUBBELL88.02 @ 1
thumbzoomKelly HayesHBL9462C99.95140Hubbell Wiring Device-Kellems99.95 @ 1
thumbzoomsustainablesupply.comC1204115103.731In StockHubbell0.7103.73 @ 1
AmazonTPB00DJUHJRA104.01In Stock10Hubbell104.0 @ 1
AmazonUNKB00DJUHJRA104.01In StockHubbell104.0 @ 1
thumbzoomZoroG0626202109.99185Hubbell0.7109.99 @ 1
thumbzoommostelectric.comHBL9462C111.3711HUBBELL WIRING DEVICE/KELLEMS111.37 @ 1
thumbzoomsimsupply.comZO-G0626202130.27147Hubbell130.27 @ 1
thumbzoomgordonelectricsupply.comHBL9462C134.21In StockHUBBELL134.2 @ 1
standardelectricsupply.com18732134.861In StockHubbell134.86 @ 1
thumbzoomMRO Supply1026128134.861In StockHubbell Wiring134.86 @ 1
thumbzoomGalcoHBL9462C-HBBL138.821In StockHubbell0.85138.82 @ 1
thumbzoomRadwellHBL9462C160.011HUBBELL KELLEMS160.0 @ 1
thumbzoommayerelectric.comHUBHBL9462C180.721In StockHUBBELL WIRING DEVICES0.6180.72 @ 1
grainger.caHBLHBL9462C200.859552441In StockHUBBELL WIRING DEVICE-KELLEMS0.7200.85955244 @ 1
Graybar90077900201.84641In StockHubbell Wiring Device - Kellems201.8464 @ 1
thumbzoomNewark35B926230.341In StockHUBBELL WIRING DEVICES230.34 @ 1
thumbzoomRaptor SuppliesAE3CEQ271.41548851In StockHUBBELL WIRING DEVICE-KELLEMS271.4154885 @ 1
