- mpnB201
- brandname: MARATHON
- manufacturername: MARATHON

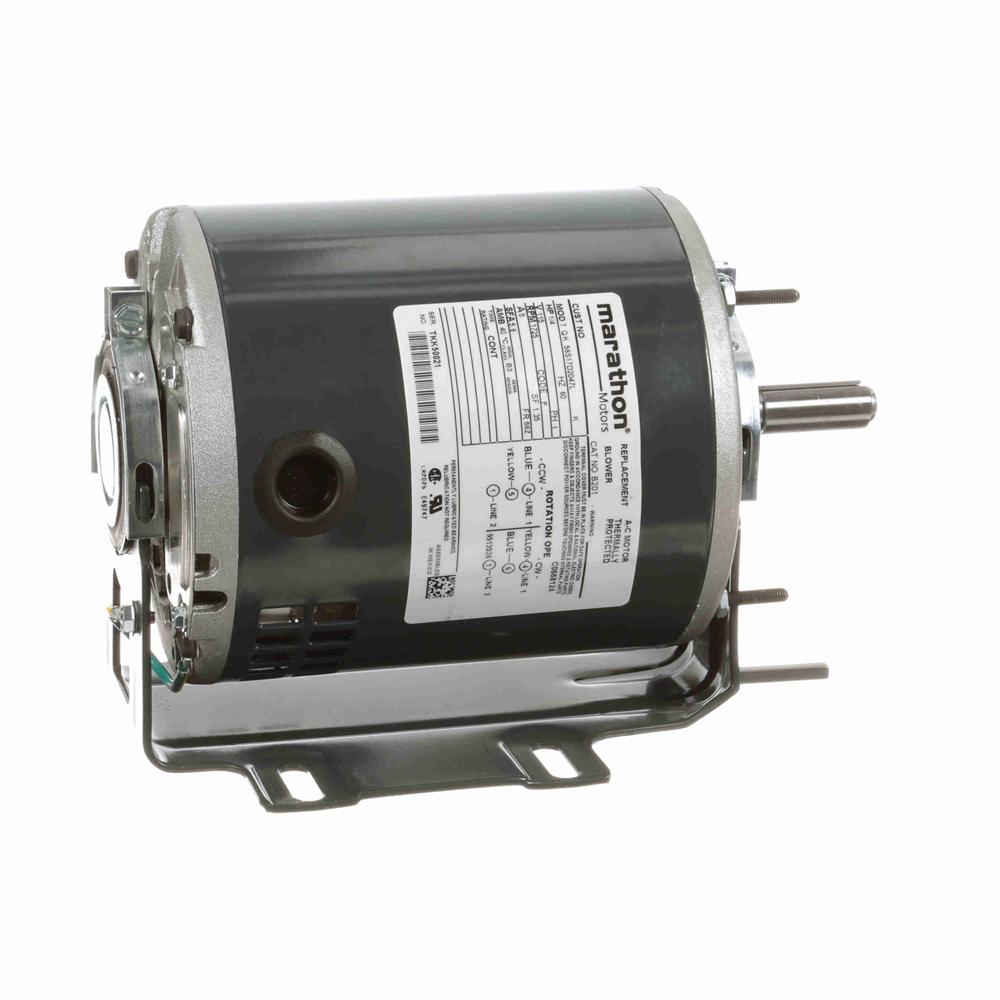

Marathon B201 56Z Frame Open Drip Proof 56S17D2047 Belt Drive Motor, 1/4 hp, 1725 RPM, 115 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount
- Brand: Marathon Electric
- PartNumber: B201
- Model: MB201
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 056S17D2047 |
| Amps | 5 |
| Approvals | CSA, UR |
| base rpm: | 1725 rpm |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Current Rating | 5 A |
| duty / condition type: | Continuous Duty |
| Duty Cycle | Continuous |
| Efficiency | 0.595, 59.5 |
| Efficiency % | 59.5 % |
| Enclosure | Drip Proof |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof), D. |
| enclosure type: | DP (Drip Proof) |
| Family Series | Marathon Electric Motors |
| Frame | 56Z |
| frame material: | Rolled Steel |
| frame size: | 56Z |
| Frequency | 60 Hz |
| frequency rating: | 60 Hz |
| full load current: | 5.00 A |
| full load efficiency: | 59.50 % |
| Gross Weight | 0 lbs |
| Horsepower | 1/4 hp |
| Horsepower Rating | 0.25 HP |
| HP | 1/4 |
| Hz | 60 |
| Insulation Class | B |
| insulation class: | B |
| Insulation Type | Class B |
| ip rating: | 12 |
| Item Number | B201 |
| Kilowatts | 0.19 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 056S17D2047 |
| Manufacturer Part Number | 056S17D2047 |
| Maximum Ambient Tempera. | 40? C |
| motor category: | Blower/Fan Motor |
| Motor Diameter | 6-1/2" |
| motor horsepower: | 1/4 hp, 0.25 hp |
| motor phase: | 1 ph |
| Motor Shell Length | 5.5" |
| motor supply voltage: | 115 V |
| Mounting | Base/Stud |
| Mounting Orientation | Horizontal |
| Mounting Type | Resilient Base - Extend. |
| mounting type: | Resilient Base/Extended. |
| NEMA Frame | 56Z |
| Net Weight | 14 lbs |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 9.47 ", 9.47" |
| overall length (c-dimen. | 9.47 in |
| Phase | 1, 1 Phase |
| Product Type | Split Phase |
| Rotation | Reversible |
| RPM | 1725 rpm, 1725, 1,725 R. |
| Service Factor | 1.35 |
| service factor: | 1.35 |
| Shaft Diameter | 0.63 ", 5/8" |
| shaft diameter: | 0.50 in |
| Shaft Length | 1.97" |
| Ship Weight | 14 lbs. |
| Special Features | Service Factor - 1.35 |
| Standards | UL Recognized |
| standards met: | UL, CSA |
| Supply Voltage | 115 VAC |
| synchronous rpm: | 1800 rpm |
| Thermal Protection | Automatic |
| thermal protection: | Automatic |
| Type | Split Phase |
| UPC Code | 722856039323 |
| Voltage (AC) | 115 VAC |
| Volts | 115 |
| weight: | 14 oz |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB186642 | 96.95 | 1 | In Stock | | Marathon Motors | | 96.95 @ 1 |
 | motionindustries.com | 04741509 | 142.87 | 1 | In Stock | | Marathon Electric | | 142.87 @ 1 |
 | Galco | B201-MARA | 181.0 | 1 | In Stock | | Marathon Electric | 14.0 | 181.0 @ 1 |
 | emotorpro.com | B201 | 196.73 | 1 | In Stock | | Marathon | 14.0 | 196.73 @ 1 |
| us.rs-online.com | 72238302 | 217.08 | 1 | In Stock | | Marathon Motors | | 217.08 @ 1 |
 | Guardian | MARSB201 | 240.5 | 1 | In Stock | | Marathon | | 240.5 @ 1 |
