Marathon Electric B202

B007ZQLC4K

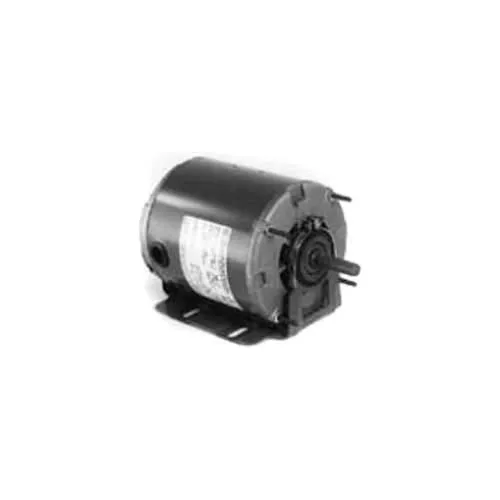

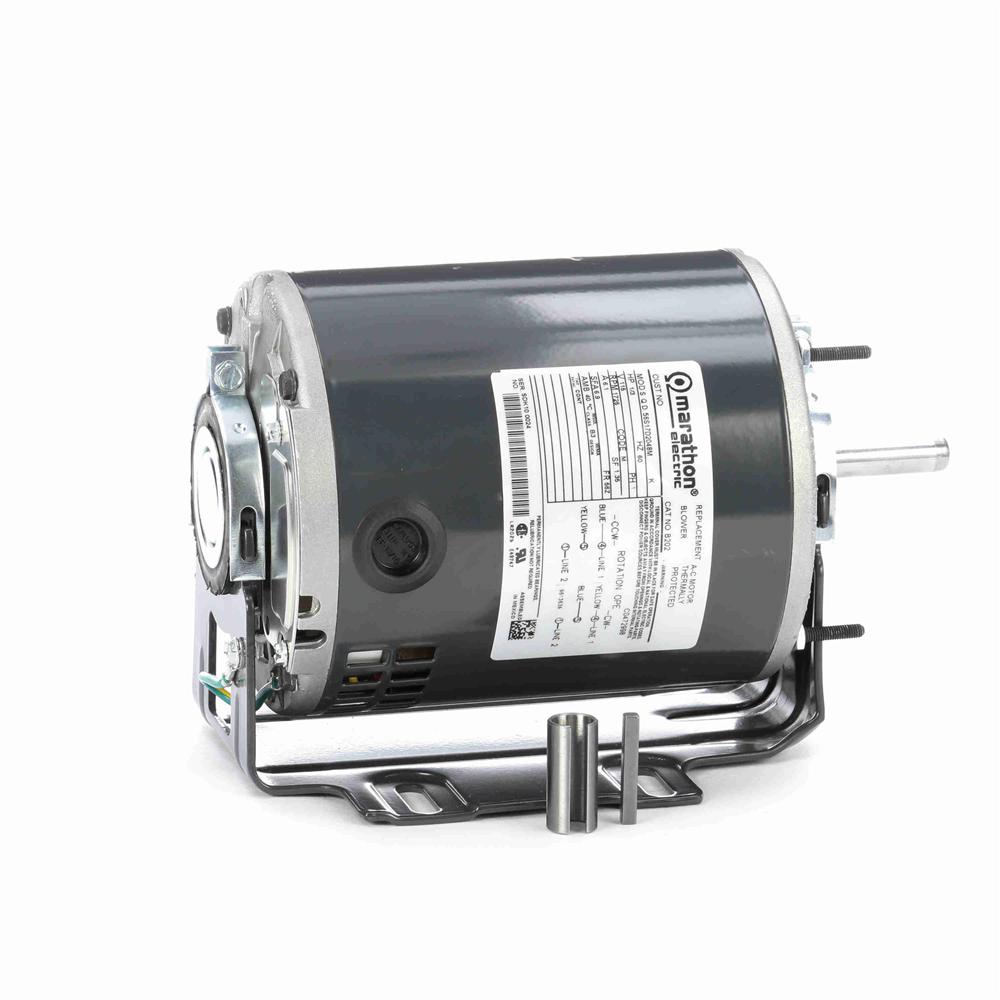

Marathon B202 56Z Frame Open Drip Proof 56S17D2048 Belt Drive Motor, 1/3 hp, 1725 RPM, 115 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B202 56Z Frame Open Drip Proof 56S17D2048 Belt Drive Motor, 1/3 hp, 1725 RPM, 115 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.056S17D2048
Amps6.1
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.72 (in.)
Catalog NumberB202
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.62
Efficiency %62 %
Electrical TypeSplit Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame56Z
Frame MaterialRolled Steel
Frame Type56Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code22
ItemMotor,1/3Hp,1725Rpm,115.
Item NumberB202
Kilowatts0.25 kW
KVA CodeM
ManufacturerMarathon Electric
Manufacturer Model #056S17D2048
Manufacturer Part Number056S17D2048
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor OrientationHorizontal
Motor Shell Length5.75"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Base - Extend.
NEMA Frame56Z
Net Weight15 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.72", 9.72 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension1.97 (in.)
Shaft Length1.97"
Shaft TypeSingle Special Extension
Ship Weight15 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Voltage115
Voltage (AC)115 VAC
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB202137.01In StockMARATHON137.0 @ 1
thumbzoomcshincorporated.comMB202166.981In StockMarathon17.0166.98 @ 1
AmazonTPB007ZQLC4K169.541In Stock2Marathon Electric169.54 @ 1
thumbzoomGalcoB202-MARA180.531In StockMarathon Electric15.0180.53 @ 1
thumbzoomMRO Supply2269659182.91In StockMarathon Electric182.9 @ 1
thumbzoomemotorpro.comB202198.231In StockMarathon15.0198.23 @ 1
us.rs-online.com72650124203.341In StockMarathon Motors203.34 @ 1
thumbzoommidwestapplianceparts.comB202-MT-P205.61In StockMarathon205.6 @ 1
thumbzoomNational Supply NetworkB871776210.841In StockMARATHON MOTORS210.84 @ 1
thumbzoomGlobal IndustrialWBB871776218.951In StockMarathon Motors218.95 @ 1
thumbzoomindustrialstores.comB202220.191In Stock10Marathon Motors220.19 @ 1
thumbzoomDreisilkerMA-RBC-B202223.361In StockMarathon223.36 @ 1
industrialmotors.comB202241.8135MARATHON ELECTRIC241.8 @ 1
ptacsolutions.comB202251.681In StockMarathon Motors251.68 @ 1
thumbzoomZoroG6460857262.991In StockMarathon16.0262.99 @ 1
thumbzoomGuardianMARSB202278.981In StockMarathon278.98 @ 1
