OSG 215-2559

mpn215-2559
brandname: OSG
manufacturername: OSG

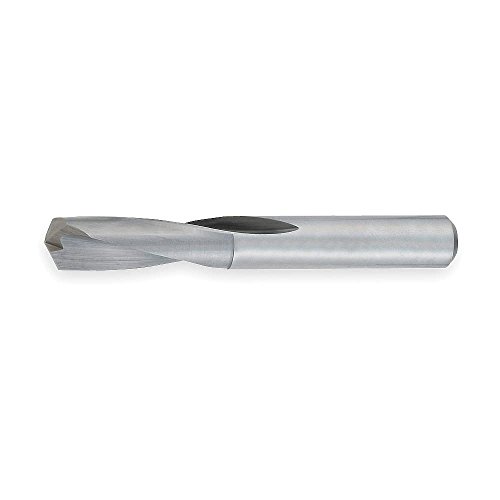

Screw Mach Dril, SS, Carbide, 6.5mm, 135 Deg

Screw Mach Dril, SS, Carbide, 6.5mm, 135 Deg

zoom

Brand: OSG
PartNumber: 215-2559
Model: 215-2559
PackageQuantity: 1
Binding: Misc.
Manufacturer: OSG Tap And Die
Label: OSG Tap And Die

Attributes

Key	Value
Application	For Aluminum, Cast Iron.
coating	Bright
Coolant Fed	Non-Coolant Through
Cutting Direction	Right Hand
Decimal Equivalent	0.2559
Depth x Dia. Ratio	5xD
Depth:Dia. Ratio	5xD
diameter tolerance	+0 / -0.013mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	Bright
Drill Bit Grouping	Drill Bit, Individual
Drill Bit Material	Solid Carbide
Drill Bit Point Angle	135 Degrees, 135 Degre.
Drill Bit Point Type	4 Facet Point
Drill Bit Size	6.50 mm
Drill Diameter Tolerance	+0.000/-0.013 mm
Drill Length Class	Screw Machine Length
Drill Point Length	135
Finish - Machining	Bright (Uncoated)
flute angle	15 Degree
Flute Length	35.00 mm
flute length mm	34.90
Flute Type	Spiral
Item	Screw Machine Drill Bit
list number	215
material	Carbide
Material - Machining	Carbide
Material Grade - Machin.	High Performance
Maximum Drilling Depth	34.9 mm
Measurement System	Metric
number of flutes	2
Number of Flutes	2
Number of Pieces	1
Overall Length	63.00 mm
overall length mm	63.50
Primary Material Applic.	Aluminum, Cast Iron, Ha.
Primary Material Applic.	K, N, P
Series	215
Shank Dia.	6.50 mm, 6.5 mm
Shank Length	28.60 mm
Shank Type - Machining	Straight
Sheeter Drill	Yes
Sizes Included	6.50mm
Standards	Not Rated
unspsc	23291500

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G5680166	20.69	1	In Stock		Osg	0.06	20.69 @ 1
	tmttoolbox.com	215-2559	25.34	1	In Stock		osg		25.34 @ 1
	sustainablesupply.com	C1477633	36.15	1	In Stock		OSG	0.06	36.15 @ 1
	grainger.ca	OSG215-2559	40.70320048	1	In Stock		OSG	0.2	40.70320048 @ 1
