EEH-ZA1V220R

mpnEEH-ZA1V220R.
brandname: PANASONIC
manufacturername: PANASONIC

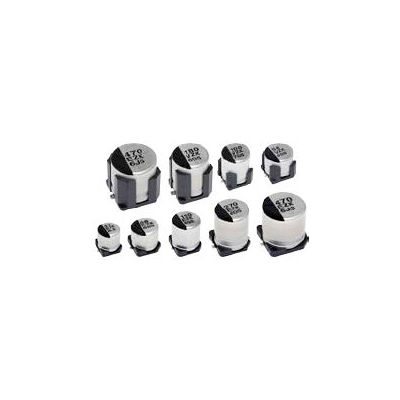

Aluminum Electrolytic Capacitors - SMD 22uF 35volts 5x5.8mm (1 piece)

Aluminum Electrolytic Capacitors - SMD 22uF 35volts 5x5.8mm (1 piece)

zoom

PartNumber: EEH-ZA1V220R
PackageQuantity: 1
Manufacturer: Panasonic
Label: Panasonic

Attributes

Key	Value
Applications	Automotive
Base Product Number	EEH-ZA
BRAND	Panasonic
Capacitance	22 uF, 22 ?F
Capacitance Range	1 to 99 uF
Case Code	C
Case Size	Dia. 0.197 x L 0.228 in.
Category	Capacitors
Dimensions	0.197 Dia. x 0.228 L ; .
Element Material	Aluminum Electrolytic
ESR	100 mOhms
ESR (Equivalent Series .	100mOhm
Height - Seated (Max)	0.240" (6.10mm)
Lead Spacing	-
Life	5000 Hours
Lifetime @ Temp.	10000 Hrs @ 105?C
MANUFACTURERS PART NUMB.	EEH-ZA1V220R
Maximum Operating Tempe.	105 C
Mfr	Panasonic Electronic Co.
Minimum Operating Tempe.	-55 C
Mounting Type	PCB Mount, Surface Mount
Operating Temperature	-55?C ~ 105?C
Package	Tape & Reel (TR)
Package / Case	Radial, Can - SMD
Product Status	Active
Ratings	AEC-Q200
Ripple Current	0.9 A
Ripple Current @ High F.	900 mA @ 100 kHz
Ripple Current @ Low Fr.	90 mA @ 100 Hz
Series	ZA Series, ZA
Size / Dimension	0.197" Dia (5.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5..
Termination	SMD
Tolerance	?20%, 20% %
Type	Hybrid
TYPE	Capacitor Aluminum Poly.
Voltage - Rated	35 V
Voltage Rating	35 VDC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	29AC5325	0.438	1000	228		PANASONIC		0.438 @ 1000
	Future Electronics	8060986	0.564	1000	1000		Panasonic		0.564 @ 1000
	Onlinecomponents.com	EEH-ZA1V220R	0.706	1	2017		PANASONIC		0.706 @ 1
	Digi-Key	3088118	1.27	1	78		Panasonic Electronic Components		1.27 @ 1
	us.rs-online.com	70314691	1.34	1000	74		Panasonic Electronic Components		1.34 @ 1000
	Global Industrial	WBB2887387	1.86	27	78		Panasonic		1.86 @ 27
