SKF 7310 BEGAF

B007VGVYPG

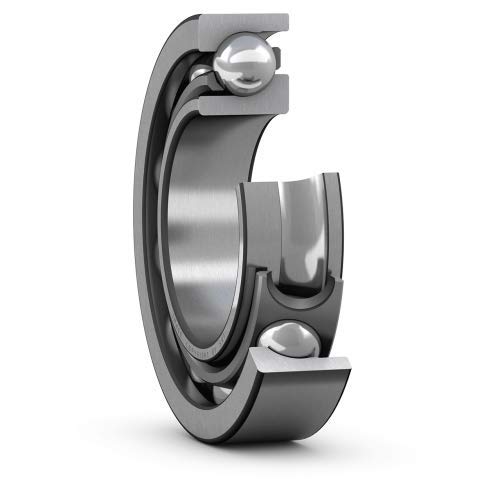

SKF 7310 BEGAF Medium Series Angular Contact Bearing, Light Preload, ABEC 1 Precision, 40? Contact Angle, Open, Steel Cage, Normal Clearance, 50mm Bore, 110mm OD, 27mm Width

SKF 7310 BEGAF Medium Series Angular Contact Bearing, Light Preload, ABEC 1 Precision, 40? Contact Angle, Open, Steel Cage, Normal Clearance, 50mm Bore, 110mm OD, 27mm Widthzoom

Attributes

Key Value
ABEC Tolerance3
Bore1.969 Inch | 50 Millime.
Bore Dia.50 mm
Bore Diameter50 mm
Bore TypeCylindrical
BrandSKF
Cage MaterialSteel
CategoryAngular Contact Ball Be.
Category - BDIAngular Contact Ball Be.
Closure TypeNone
Contact Angle40 Degree
Contact Angle (Degree)40
Contact Bearing TypeAngular Contact
Dynamic Load Capacity (.16,900
Dynamic Load Capacity (.75,000
EAN7316577089366
EnclosureOpen
Flush GroundYes
Global Part Number GPN257585
Harmonized Tariff Code8482.10.50.28
Housing Fillet Radius1 mm
Inch - MetricMetric
Inner Diameter50 mm
Internal ClearanceC0-Medium
ItemAngular Contact Ball Be.
Keyword StringAngular Contact
Long Description50MM Bore; 110MM Outsid.
LubricationMT47 Grease
Manufacturer Item Number7310 BEGAF
Manufacturer NameSKF
Max. RPM8,000 RPM
Maximum Capacity / Fill.No
Minimum Buy QuantityN/A
Mounting ArrangementUniversal
NounBearing
Number of Bearings1 (Single)
Number of RowsSingle
Number of Rows of BallsSingle Row
Outer Diameter110 mm
Outside Dia.110 mm
Outside Diameter110 mm, 4.331 Inch | 11.
Overall Width27 mm
Precision ClassABEC 3 | ISO P6
PreloadLight
price$ 644.79 / each
Product Group - BDIB00308
Rolling ElementBall Bearing
Seal TypeOpen
Series7300 Series
Shaft Fillet Radius1 mm
Snap RingNo
Standard Preload (lbs.)36
Standard Preload (N)160
Static Load Capacity (L.11,500
Static Load Capacity (N)51,000
Static Load Rating47.5 kN
Static Radial Load Capa.47,500 N
Temp. Range (F)-40 Degrees to 212 Deg.
title7310 BEGAF
TypeSingle Row Explorer
UNSPSC31171531
UPC Code7316577089366
Weight / Kilogram1.16
Weight / LBS2.56
Width1.063 Inch | 27 Millime.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply313892540.371In Stock14SKF Bearing2.63540.37 @ 1
thumbzoomLily Bearing7310 BEGAF548.071In StockSKF2.56548.07 @ 1
thumbzoomBDI Express1267857555.929191061In StockSKF2.552555.92919106 @ 1
factorysupplyoutlet.comNP85VR633.821In Stock25SKF633.82 @ 1
thumbzoomZoroG8308596665.251In Stock10Skf2.6665.25 @ 1
us.rs-online.com73220885731.721In StockSKF Bearings731.72 @ 1
Grainger36K773777.01In Stock15SKF777.0 @ 1
thumbzoomsustainablesupply.comC1573085864.791In StockSKF2.6864.79 @ 1
motionindustries.com04670592975.541In StockSKF975.54 @ 1
