Square D by Schneider Electric 8501RS42P14V14

B084CY6PZS

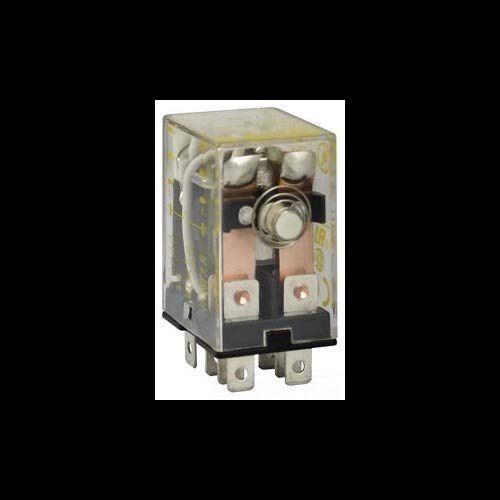

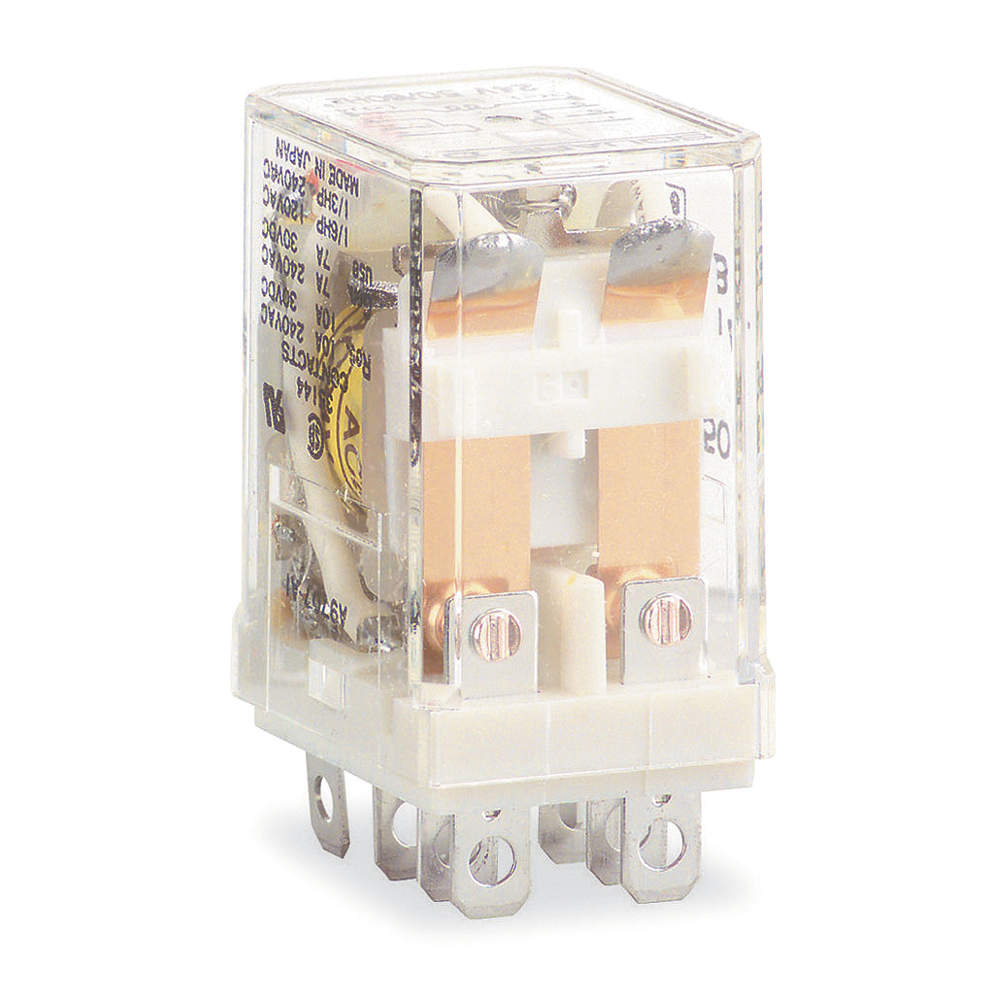

Gen Purpose Relay,8 Pin,Square,24VAC

Gen Purpose Relay,8 Pin,Square,24VACzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 240V
Application8501NR42
ApprovalsCE, CSA, UL
Base Type - Plug In Rel.Square
Body Depth - Relay1.07 in
Body Height - Relay1.37 in
Body Width - Relay0.83 in
BrandSquare D by Schneider E.
Catalog Number8501RS42P14V14
CategoryRelays
Coil Insulation-
Coil TypeNon Latching
Coil Voltage24 VAC, 24VAC
Coil Volts24V AC
ConditionNew
ConnectionSpade
Contact ConfigurationDPDT
Contact Current Rating15 A
Contact FormDPDT, 4PDT, DPDT (2 For.
Contact Form - RelayDPDT
Contact MaterialSilver (Ag), Gold (Au),.
Contact Rating10A @ 240VAC/28VDC
Contact Rating (Current)15 A
Contact Voltage Rating300 VAC
ContactsDPDT
Control Voltage24
Country of OriginChina
Country of Origin (subj.China
Current Rating15 A
DC Contact Rating - Rel.10A @ 28V
DescriptionPLUG IN RELAY, TYPE R, .
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number4008-8501RS42P14V14-ND
EnclosurePlastic
Estimated Lead Time (in.4
Family SeriesSquare D Relays, 8501R .
FeaturesSPDT through 4PDT, AC o.
FunctionGeneral Purpose
Gross Weight0 lbs
GTIN00785901131335, 7859011.
HP @ 120V1/10 hp
HP @ 240V1/10 hp
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number8501RS42P14V14
Item TypeStandard;Miniature Rela.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number505464
Manufacturer Product Nu.8501RS42P14V14
Manufacturer Standard L.1 Weeks
MfrSchneider Electric
MountingSocket, Plug In
Mounting - RelayPlug In
Mounting TypeSocket Mount, Socketable
Must Operate Voltage-
Must Release Voltage-
Net Weight0.09 lbs
Nominal Coil Voltage24 VAC
Number of Pins14 Pin
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-40-131 A Degrees F, -4.
Overall Height - Relay1.65 in
PackageBox
Pins8
Power Consumption - Rel.1.4 VA
Primary TypePower Relays
Product Series8501R
Product StatusActive
Published Coil Voltage24 VAC
Push To TestNo
Rating @ 120 VAC15 A
Rating @ 220/240/277 VAC10 A
Rating @ 24/28/30 VDC15 A
Relay TypeElectromechanical, Gene.
Release Time20 ms
Safety GuidedNo
Seal Rating-
Series8501R Series, Harmony 9.
Socket Code - RelayD
Special FeaturesGreen indicator relay e.
StandardUL LISTED-UL RECOGNIZED.
StandardsCSA Certified, UL Listed
Status IndicatorYes, LED
Switching Voltage300VAC, 30VDC - Max
TerminationQC Tabs, Spade
Termination StylePlug In
UPC785901131335
UPC Code785901131335
Voltage Rating240 V
Warranty DescriptionContractual Warranty:18.
Weight2.000000
