Square D by Schneider Electric 9013GHG2J33

B00CON95S4

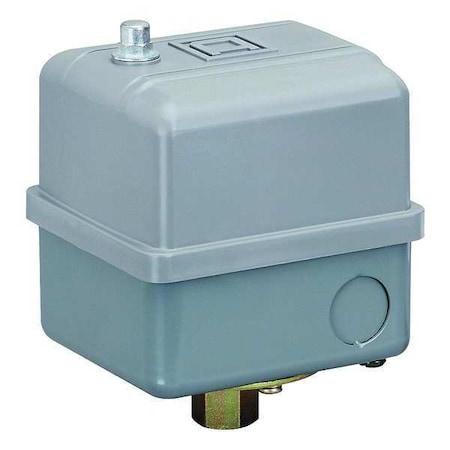

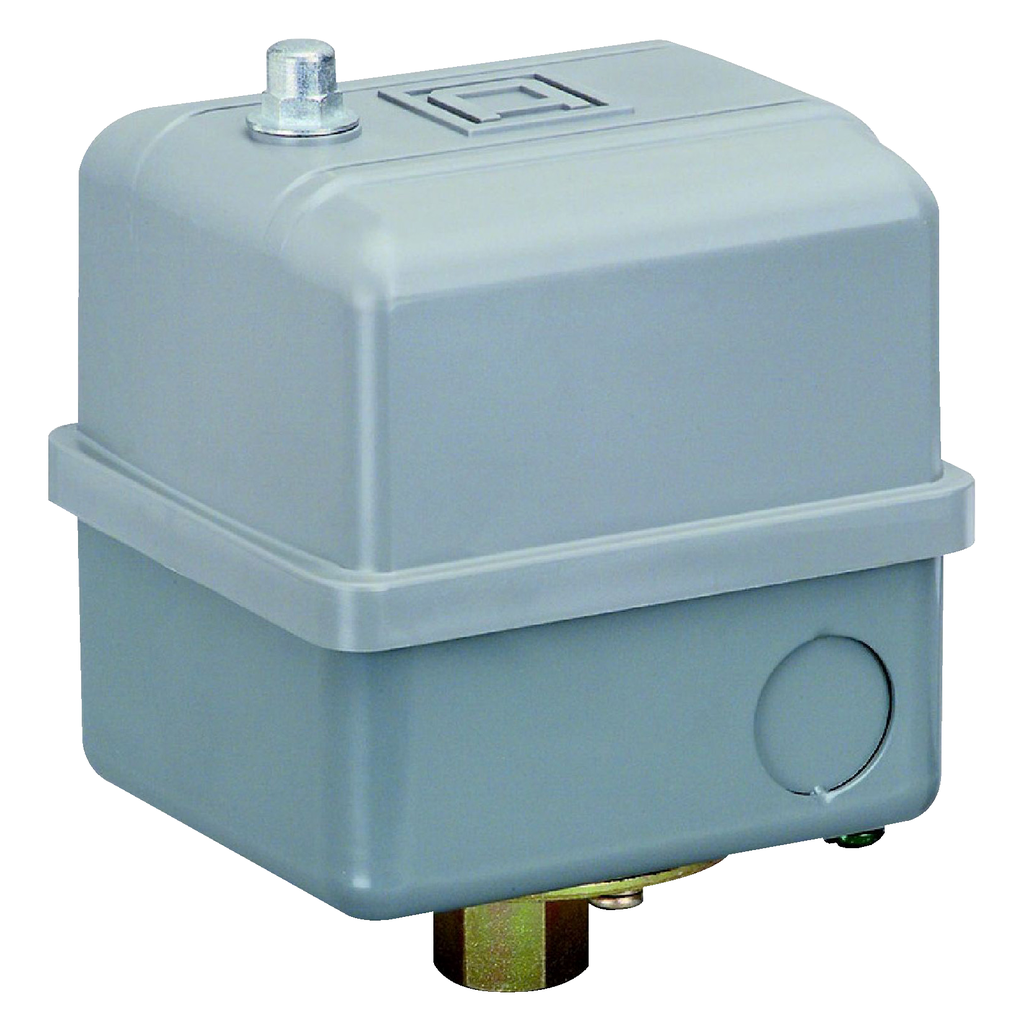

Square D by Schneider Electric 9013GHG2J33 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 50-70 psi Points

Square D by Schneider Electric 9013GHG2J33 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 50-70 psi Pointszoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
Actuation TypeDiaphragm
Adjustable Range On Ris.65-200 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApplicationControl electrically dr.
Approximate Adjustable .20-40 psi
BrandSquare D by Schneider E.
Burst Pressure300 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
Catalog Number9013GHG2J33
CategoryIndustrial Automation a.
Circuit TypePower Circuit
Circularity ProfileENVEOLI111210EN
Contact Configuration2 NC, snap action, DPST.
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Country of OriginMexico
Depth3.88 in
DescriptionSQUARE D PUMPTROL, PUMP.
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Digi-Key Part Number4008-9013GHG2J33-ND
Electrical Circuit TypePower Circuit
Electrical ConnectionScrew-Clamp Terminals, .
Electrical Durability100000 cycles 10 cyc/mn
EnclosureNEMA 1 UL 50
Environmental ConditionsGENERAL PURPOSE (INDOOR)
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (.
Fluid Connection Type0.25 inch NPSF internal.
Height5.4 in
HP @ 1 Phase - 230V3
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Item TypeElectromechanical press.
Local Displaywithout
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9013GHG2J33
Manufacturer Standard L.1 Weeks
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA RatingNEMA 1
Net Weight2.25 lb(US)
Operating Cycles10 cyc/mn
Operating Positionany position
Operating Temperature-33-257 A Degrees F
PackageBox
Package Quantity1
Pressure ActuatorDiaphragm
Pressure Sensor Name9013GH
Pressure Sensor Size200 psi 40-170 psi)
Pressure Sensor TypeElectromechanical Press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.20 to 40 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.50/70 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range65 to 200 psi
Pressure Switch Type Of.regulation between 2 th.
Process Connection0.25 inch NPSF internal.
Product CertificationsCSA file LR25490 || UL .
Product Specific Applic.control electrically dr.
Product StatusActive
Promotion RestrictionNot eligible for promot.
Protective Treatmentnone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series-
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
Special FeaturesMercury Free; Green Pre.
StandardCSA FILE LR25490-UL LIS.
StandardsUL 508 || CE || NSF ANS.
Sub Brand9013GH
Sustainable Offer StatusGreen Premium product
System Pressure200 psi 40-170 psi)
Temp. Range-33 to 257 ?F
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
TypePump Switch, Electromec.
Type Of Packingindividual
UPC785901187974
Value Of Setting50...70 psi
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com9013GHG2J3378.091In Stock10SQUARE D78.09 @ 1
thumbzoomZoroG085206991.091In StockSquare D2.0391.09 @ 1
thumbzoomDigi-Key1637847493.0915Schneider Electric93.09 @ 1
thumbzoomsustainablesupply.comC304545598.851In StockSquare D2.0398.85 @ 1
thumbzoommayerelectric.comSQD9013GHG2J33101.221In StockSQUARE D2.25101.22 @ 1
thumbzoomcrescentelectric.com412916130.8811Square D by Schneider Electric130.88 @ 1
