Tektrol 4800D-05-42-05-P14

B09ZDJNRLZ

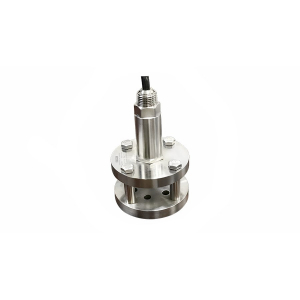

Submersible Level Transmitter- Wastewater 5 psig, 4-20mA, 0.5, 40Ft Poly Cable

Submersible Level Transmitter- Wastewater 5 psig, 4-20mA, 0.5, 40Ft Poly Cablezoom

Attributes

Key Value
Accuracy0.5% FS
Compensated Temperature.32 ?F to 140 ?F (0 ?C t.
Cycles10x10
Diaphragm316 SS
Housing304 SS
Insulation Resistance100 M?/50 VDC
Load Resistance (RL)RL<(Vs-12)/0.02A
Long Term Stability?0.2% FS/year (typ.), ?.
Media CompatibilityAll media compatible wi.
Net Weight8.8 lb (4000 g)
Oil FillingSilicone oil
Operating Temperature R.-4 ?F to 158 ?F (-20 ?C.
Output Signal4-20 mA, RS-485, 0.5-4..
Over Pressure150% FS
Power Supply (Vs)12 to 36 VDC
Pressure Range5 psig
Pressure TypeGauge (vented)
Shock100g-force (10 ms)
Storage Temperature Ran.-40 ?F to 257 ?F (-40 ?.
Temperature Coeffitient.?0.75% FS (typ), ?1.5% .
Temperature Coeffitient.?0.75% FS (typ), ?1.5% .
Vibration10g-force (20-2000 Hz)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomprimebuy.com4800D-05-42-05-P14541.01In StockTek-Trol8.8541.0 @ 1
