WEG 10012ET3E444T-W22

B00BC9CCBI

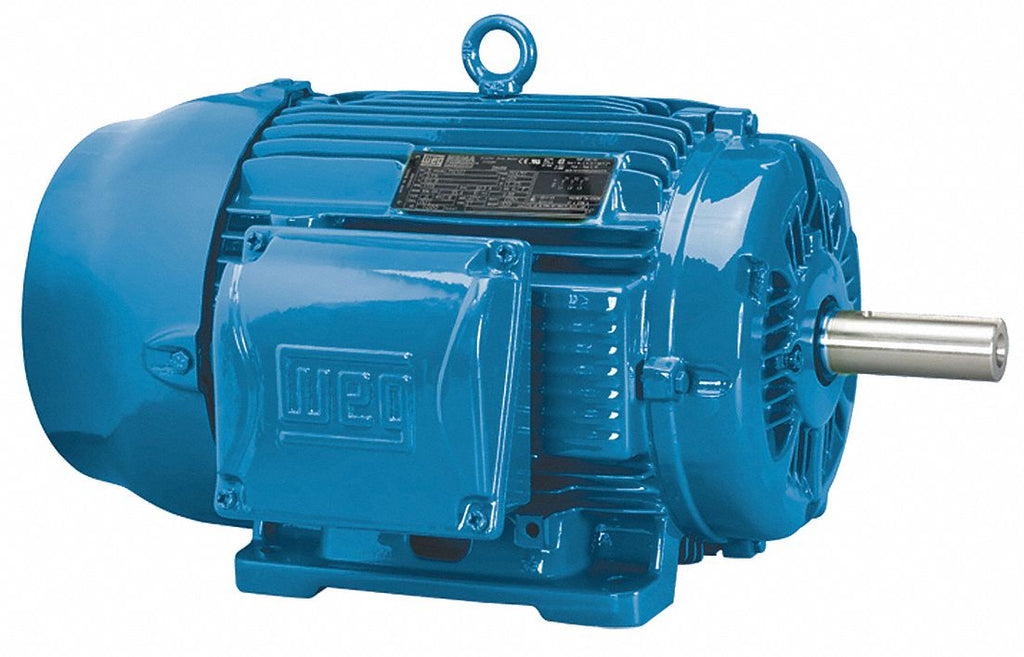

WEG 10012ET3E444T-W22 NEMA Premium Efficiency Severe Duty and General Purpose Electric Motor, Ball Bearings, 100 HP, 3-Phase, 1185 rpm, 208-230/460 V, 60 Hz, Frame 444/5T

WEG 10012ET3E444T-W22 NEMA Premium Efficiency Severe Duty and General Purpose Electric Motor, Ball Bearings, 100 HP, 3-Phase, 1185 rpm, 208-230/460 V, 60 Hz, Frame 444/5Tzoom

Attributes

Key Value
Amperage Rating268 to 242/121 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Coupling**Please Specify Coupli.
Degree of ProtectionIP55
Description:MOTOR 100HP 6P 444/5T W.
Dimensions45.157 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %95 %
EnclosureTEFC, IC411 -TEFC, Tota.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight1885.00
Family SeriesWEG Electric Motors
FL Amps121
FL Efficiency95.0
FlangesWithout Flanges
Footnotes2
Frame444T, 444/5T, 445T
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps242.0/121.0
Full Load Amps @ 50Hz105.0, 106.0, 109.0, 13.
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower100 hp
HP100
HP @ 50Hz75, 100
Hz60
Ins. ClassF
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number10012ET3E444T-W22
Length Less Shaft36 1/2 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number10012ET3E444T-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:10012ET3E444T-W22
Model11355339
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM1,185
NEMA DesignB
NEMA Frame444/5T
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency95 %
Nominal Voltage208 VAC
Number of Poles6
Number of Speeds1
Output Rating100 hp
Overall Length45 3/16 in
Part Number10012ET3E444T-W22
Phase3, 3 ph, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,200 RPM, 1185, 1200
RPM @ 50Hz985
RPM Group1101-1200
RPM Range1,101-1,200
Service Factor1.25
Service Factor @ 50Hz1
Shaft Dia.3 3/8 in
Shaft Length8 1/2 in
Shaft Size3-3/8 in Dia x 8-1/2 in.
Speed (RPM)1200
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed1200 rpm
Terminal BoxLeft position
UPC:7894171929702
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460//380 V, 230/460.
Voltage (AC)208 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight1840.660000, 1,666 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com10012ET3E444T-W228258.01In StockWEG1666.08258.0 @ 1
thumbzoomWalker Industrial10012ET3E444T-W2211723.251In Stock17WEG11723.25 @ 1
thumbzoommotorsandcontrol.com10012ET3E444T-W2211723.251In StockWEG Electric1885.011723.25 @ 1
kscdirect.comWEG 10012ET3E444T-W2212004.191In StockWEG ELECTRIC CORP12004.19 @ 1
thumbzoomZoroG212714612373.251In Stock26Weg1577.012373.25 @ 1
thumbzoomindustrialrefrigerationparts.com10012ET3E444T-W2212808.81In StockWEG1840.6612808.8 @ 1
thumbzoomGalco10012ET3E444T-W22-WEG12838.271In StockWEG Electric12838.27 @ 1
thumbzoomRadwell10012ET3E444T-W2214050.01In StockWEG14050.0 @ 1
thumbzoomDealers Electric10012ET3E444T-W2214271.251In StockWeg1885.014271.25 @ 1
thumbzoomPurvis10012ET3E444T-W2214286.731In StockWEG14286.73 @ 1
thumbzoomvfds.com10012ET3E444T-W2215631.01In StockWEG15631.0 @ 1
Airline HydraulicsWEG 10012ET3E444T-W2216114.431In StockWEG16114.43 @ 1
thumbzoomNational Supply NetworkB87422119334.791In StockWeg Electric Motors19334.79 @ 1
motionindustries.com0470229820049.891In StockWEG Electric Corporation20049.89 @ 1
thumbzoomsustainablesupply.comC150698920201.391In StockWEG1577.020201.39 @ 1
thumbzoomRaptor SuppliesAE7TWR21321.64142551In StockWEG21321.6414255 @ 1
