- mpnLCAT24-40MLG-EDU
- brandname: Columbia Lighting
- manufacturername: Columbia Lighting

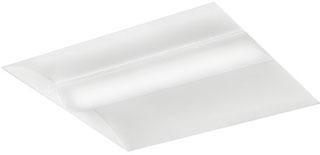

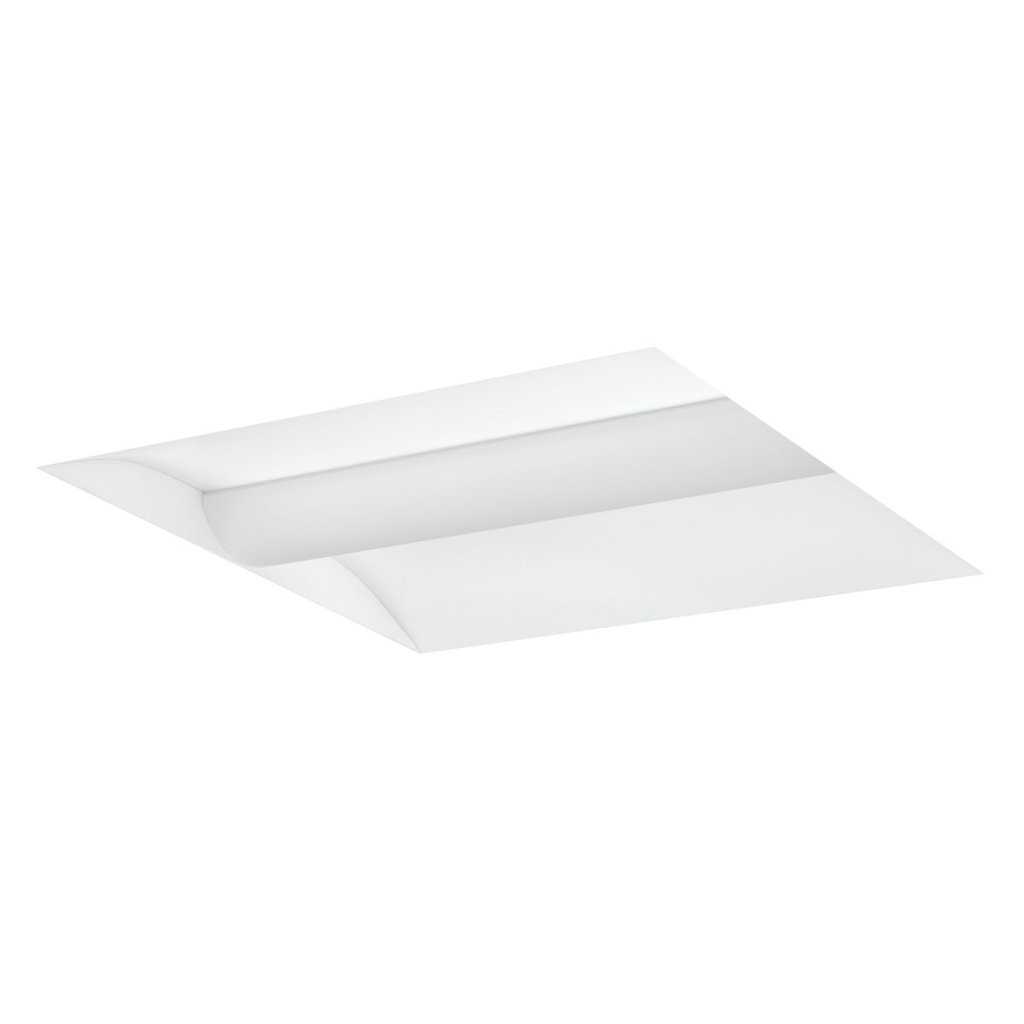

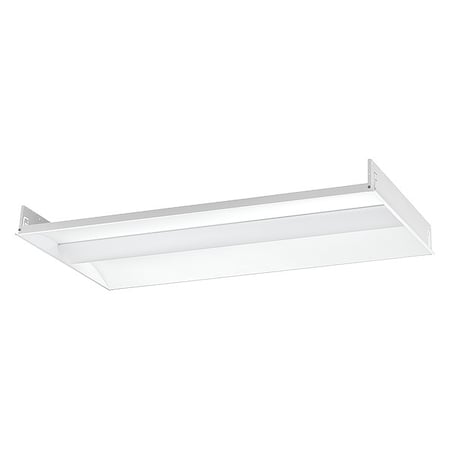

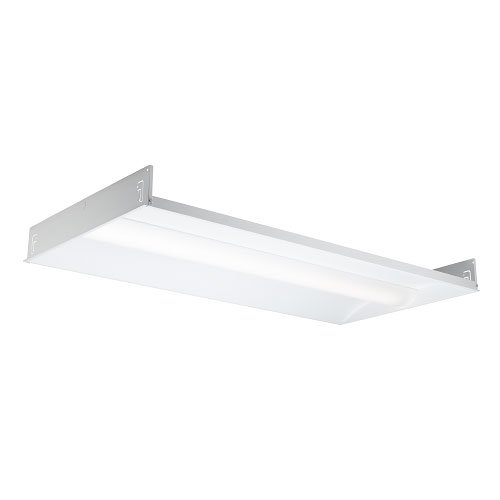

Columbia Lighting LCAT24-40MLG-EDU LCAT LED Contemporary Architectural Troffer, 48 in x 24 in x 4 in, White
- Brand: Columbia
- PartNumber: 93077463
- Model: LCAT24-40MLG-EDU
- Color: White
- Size: 48 in x 24 in x 4 in
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Hubbell Lighting, Inc.
- Label: Hubbell Lighting, Inc.
Attributes
| Key | Value |
|---|
| 3rd Party Control Enabl. | Lutron Vive;Daintree |
| Application | Commercial Indoor; Clas. |
| ARRA Compliant | Contact Manufacturer |
| Average Life | 60000 hr, 60000 Hour |
| Ballast Start Type | No Ballast |
| Ballast Type | 0-10V Dimming |
| Brand Name | Columbia Lighting |
| Bulb Included | Yes |
| Bulb Technology | LED |
| Buy American Compliant | Contact Manufacturer |
| Ceiling Mount Type | T-Bar/Grid Ceiling |
| Ceiling Type | Grid |
| Certification Agency | Proposition 65 |
| Certified Listed | CSA certified to UL 924. |
| Chicago Plenum | Yes |
| Class | Architectural Solid Sta. |
| Class Code | J20 |
| Coating | High Reflectivity Matte. |
| Color | White |
| Color Family | White |
| Color Rendering Index | 80 |
| Color Rendering Index (. | 80 CRI |
| Color Temp. | 4000K |
| Color Temperature | 4000 (Cool White), 4000. |
| Color Temperature (Kelv. | 3500 |
| Colour Rendering Index | 80 |
| Colour Temperature | 4,000 K |
| Compliance | Buy American (TAA) 52.2. |
| Construction | Cold Rolled Steel |
| Construction Material -. | steel |
| Controller Type | HBLRSD710UNVWVL |
| Controls - Integral Sen. | Occupancy & Photocell |
| Controls - Networked | NX Distributed Intellig. |
| Country of Origin | MX, 00 - Unknown |
| Country Of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| createchange | Yes |
| CRI | 80.0000, 83 |
| Degree of Protection | No |
| Description - Invoice | LED TROFFER 2X4 4886 LM. |
| Dimenions | 48 in x 24 in x 4 in |
| Dimensions | 48 Inch Length x 24 Inc. |
| Dimmable | Yes |
| Dimming Method | 0 to 10V |
| Dimming Protocol | 0-10V;Lutron EcoSystem . |
| Dimming Range | 1%;5%, 100% to 1% |
| DLC Designation | DLC? (DesignLights Cons. |
| Driver Type | 0 - 10 Volt Dimming |
| Driver type | 0-10V Dimming |
| Each - Height | 4.500 in |
| Each - Length | 48.120 in |
| Each - Width | 24.000 in |
| ECCN | EAR99 |
| Emergency Back Up Batte. | No |
| Emergency Battery Backup | No |
| Energy Efficient | Yes |
| Energy Star Flag | No |
| EU RoHS Indicator | Contact Manufacturer |
| Finish | Matte, High Reflectivit. |
| Finish Type | High Reflectivity Matte. |
| Fixture Ballast Type | No Ballast Required |
| Fixture Height | 4 in |
| Fixture Item | Recessed Troffer |
| Fixture Length | 47 3/4 in |
| Fixture Rated Life | 60,000 hr |
| Fixture Temp. Range | -20 Degrees to 25 Degr. |
| Fixture Voltage | 120 to 277 |
| Fixture Warranty | 5 yr Limited Warranty |
| Fixture Width | 23 7/8 in |
| For Bulb Type | integrated LED |
| Freight Class Code | 10970007 |
| Green Certification or . | DesignLights Consortium. |
| Green Environmental Att. | Product Contributes To . |
| GTIN | 00078531125899 |
| Harmonization Code | 9405106020 |
| Height | 4 in, 2.6875 in. |
| Housing Color | White |
| Housing Colour | White |
| Housing Gauge | Code-Gauge Cold-Rolled . |
| Housing Material | steel |
| Image Actual Or Represe. | A |
| Includes | LED Modules and Electri. |
| Input Voltage | 120-277 VAC |
| IP Rating | Not IP Rated |
| Item | Recessed Troffer |
| Item Name | LED Troffer |
| Lamp Included | Yes |
| Lamp Type | Fluorescent, integrated. |
| Lamp Type - Fixtures | integrated LED |
| Lamp Type/Designation | LED |
| Lamp Wattage | 38.8 Watt |
| Lamp Watts | 32 |
| LED Replacement For | 4 Lamp T8 |
| Length | 48 in., 48 in, 4 ft |
| Lens Material | Acrylic |
| Lens Shape | Center Basket |
| Lens Thickness | Not Available |
| Lens Type | High transmission extru. |
| Light Distribution | Direct |
| Light Output | 4886 lm |
| Light Source | LED |
| Light Technology | LED |
| Lighting Certification | DesignLights Consortium. |
| Lighting Technology | LED |
| Listings | UL;UL 1598;UL 2108;CSA;. |
| Lumen Range | 2,500-4,999 lm;5,000-7,. |
| Lumens | 5100, 2900 lm, 4990 Lum. |
| Lumens Per Watt | 123 Lum/Watt, 129.0 |
| Lumens per Watt | 127 lm/W |
| Lumens Range | 4,000 to 5,999 lm |
| Manufacturer Name | Columbia Lighting |
| Manufacturer Part Number | LCAT24-40MLG-EDU |
| Material | steel |
| Max. Ambient Temp. | 77 Degrees F, 77 Degre. |
| Max. Fixture Wattage | 39 W |
| Min. Ambient Temp. | -4 Degrees F, -4 Degre. |
| Mounting | Recessed |
| Mounting Type | Recessed, Surface; Susp. |
| MSDS Flag | No |
| No. of Lamps | 2 |
| Nominal Size | 2 ft x 4 ft |
| Nominal Size - Fixtures | 2 ft x 4 ft |
| Order Multiple | 1 EA |
| Overall Height | 4 in |
| Overall Length | 47 3/4 in |
| Overall Width | 23 3/4 in |
| Quick Ship Indicator | Q |
| Rated Life | 60,000 hr |
| Returnable Indicator | Yes |
| RoHS Flag | Contact Manufacturer |
| Sensor Type | No Sensor |
| Series | LCAT, LCAT Series |
| Shade Type | No |
| Shape | Rectangular |
| Size Type | 2x4 |
| Socket Type | No socket, No |
| SpectraSync? Color Tuni. | Tunable White |
| Standard | CSA certified to UL 924. |
| Standards | UL/cUL 1598 Listed, 210. |
| Stock Indicator | N - Non-stock |
| Style | Architectural indoor tr. |
| Sub Class Code | J20J005 |
| SwitchableTechnology | Switchable Lumen & CCT |
| Switching Level | 0 to 10V Dimming to 10%. |
| Technology | SpectraSAFE? |
| Type | Static Air Function, Me. |
| UNSPSC | 39111534 |
| UPC | 07853112589 |
| Voltage | 120 to 277V AC |
| Voltage - Maximum | 277 VAC |
| Voltage Rating | 120-277 VAC, 120 - 277 . |
| Volts AC | 120-277 |
| Warranty | 5 yr |
| Warranty Length | 5 Year Warranty |
| Wattage | 40, 40 W |
| Watts | 39 |
| Weight | 20 lb. |
| Width | 24 in, 4.4375 in in. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | gordonelectricsupply.com | LCAT24-40MLG-EDU | 96.09 | 1 | In Stock | | COLUMBIA | | 96.09 @ 1 |
 | Platt.com | 0193439 | 115.87 | 1 | In Stock | | Columbia Lighting | | 115.87 @ 1 |
 | mayerelectric.com | HBLLCAT2440MLGEDU | 116.48 | 1 | In Stock | | COLUMBIA LIGHTING | 20.0 | 116.48 @ 1 |
| Graybar | 25782549 | 123.3456 | 1 | In Stock | | Columbia Lighting | | 123.3456 @ 1 |
| Monarch Electric | 508307 | 128.94 | 1 | In Stock | | Columbia Lighting | | 128.94 @ 1 |
| westsidewholesale.com | LCAT24-40MLG-EDU | 128.95 | 1 | In Stock | | Columbia Lighting | | 128.95 @ 1 |
 | Zoro | G7595896 | 132.39 | 1 | 9 | | Columbia Lighting | 17.0 | 132.39 @ 1 |
 | United Electric | 653504 | 135.18 | 1 | 1 | | COLUMBIA LIGHTING | | 135.18 @ 1 |
 | improvedepot.com | 350021 | 138.59 | 1 | In Stock | | Columbia Lighting | | 138.59 @ 1 |
| AmazonSC | B01LYEE3J7 | 177.58 | 1 | In Stock | | Columbia Lighting | | 177.58 @ 1 |
| grainger.ca | HBLLCAT2440MLGEDU | 207.217613 | 1 | In Stock | | COLUMBIA LIGHTING | 17.0 | 207.217613 @ 1 |
