XTCE009B10A

B001VXTS8U

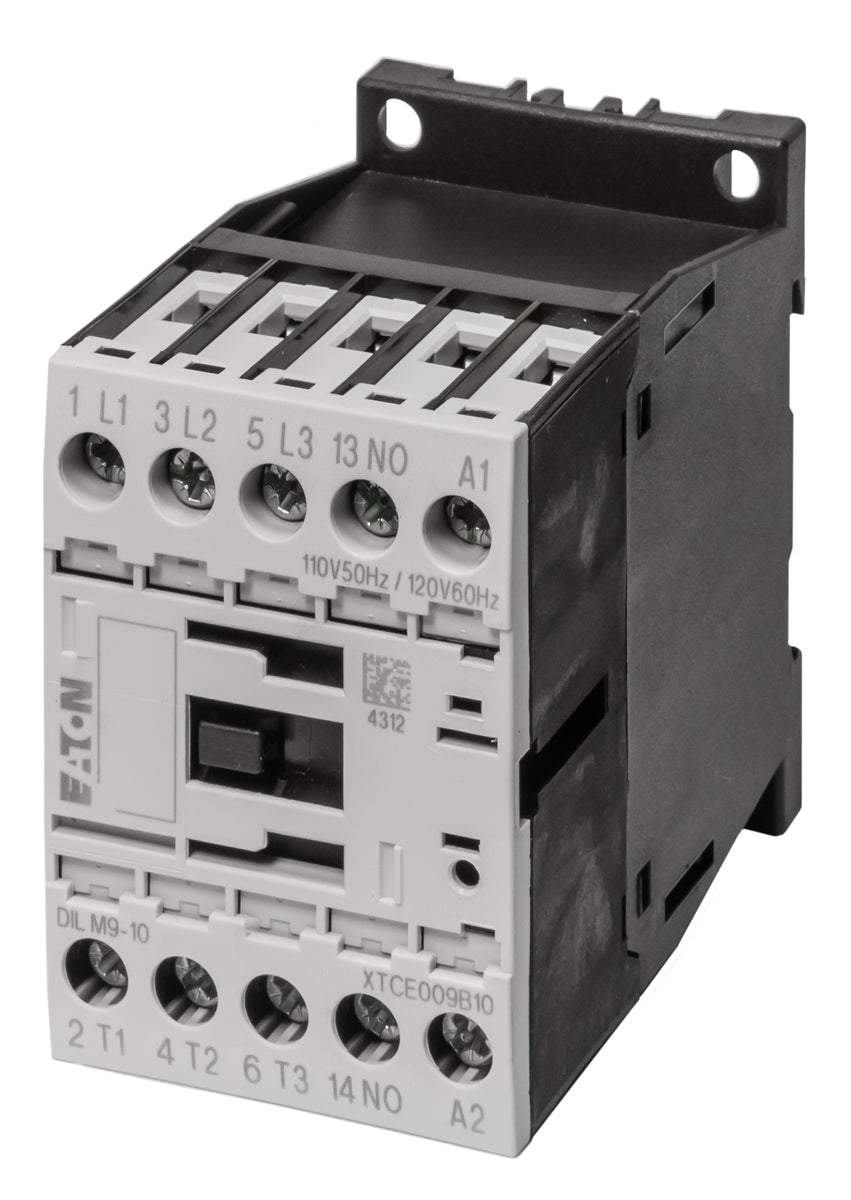

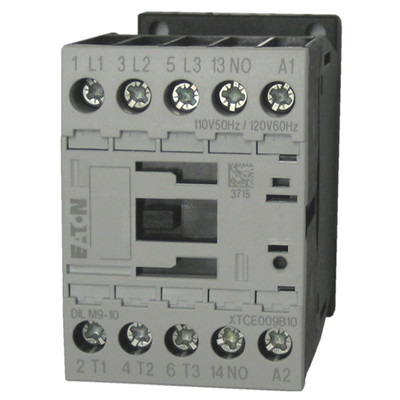

Eaton 9a 110/50 120/60 Iec B Frame Open Contctr

Eaton 9a 110/50 120/60 Iec B Frame Open Contctrzoom

Attributes

Key Value
ActionNon-Reversing
Additional InformationRoHS Compliant; Tempera.
Alternate Mfr Part Numb.XTA291094
Amperage Rating9
Amps9
ApplicationElec Assemblies, Panels.
ApprovalUL, CSA, CE
ApprovalsUL Listed ; CSA Certifi.
Aux. Contact Configurat.1NO
Auxiliary Contact1NO, 1 NO
Auxiliary Contact Form1NO
Best Sellers RankSee Top 100 in Industri.
BrandEaton, EATON CUTLER-HAM.
Carton1
Catalog NumberXTCE009B10A
Category DescriptionIEC/Freedom Contactor
Certification ListingsUL, EN 60947, IEC 60947.
ClassificationIEC/Freedom Contactor
Coil Power110V 50 Hz, 120V 60 Hz
Coil Voltage110-120VAC, 110 Volt AC.
Coil Volts120 V AC
Commodity DescriptionIEC CONTACTORS
Construction StandardIEC
Contact Configuration1NO, 1 NO
Contact Current Rating9 A
Control Voltage12 to 600 V
Country of OriginRomania
Country of Origin (subj.Romania
Current Rating20 Amp (UL Continuous),.
Date First AvailableOctober 12, 2012
Depth2.95 in, 0.079 in
DescriptionContactor 3P FVNR 9A Fr.
Dimensions45 x 75 x 68 mm
EnclosureIP20
Enclosure NEMA RatingNo Enclosure
extra long descriptionFULL VOLTAGE, NON-REVER.
Frame / Series / Class .Frame B
Full Load Amps-Inductive9 A
Full Load Amps-Resistive22 A
GTIN04015082766870
Height1.77 in
Horsepower Rating8 HP
HP @ 1 Phase - 120V1/2 hp
HP @ 1 Phase - 230V1-1/2
HP @ 1 Phase - 240V1 1/2 hp
HP @ 230V (1ph)1.25
HP @ 230V (3ph)3
HP @ 3 Phase - 208V3 hp
HP @ 3 Phase - 240V3 hp
HP @ 3 Phase - 480V5 hp
HP @ 3 Phase - 575V7 1/2 hp
HP @ 460V (3ph)5
Hz50/60
ItemIEC Magnetic Contactor
Item model numberXTCE009B10A
Item TypeContactors
Length1.771 in
Long DescriptionMAGNETIC CONTACTOR, FUL.
Made in USANo
ManufacturerEaton Cutler Hammer, Ea.
Manufacturers Part Numb.XTCE009B10A
Maximum Operating Tempe.50 C
Minimum Operating Tempe.-25 C
ModelXT
MountingPanel, DIN Rail
Mounting TypeDIN Rail Mount ; Panel .
N/O Contacts1
Number of Poles3
Part NumberXTCE009B10A
Poles3, 3 in
Poles (Closed)3
Power Rating2.2 kW
Power Rating/Voltage1/2 HP at 115 Volt 1-Ph.
Primary TypeContactor
Product Dimensions9.06 x 6.3 x 7.09 inche.
Product TypeMagnetic Contactor
Product with faster shi.true
ReversingNo
SeriesXT Series
Shippingundefined (Fixed Shippi.
SizeFrame 45 Millimeter, 1..
Special FeaturesLow Power Consumption A.
StandardUL Listed,EN 60947,CSA .
StandardsUL/CE/CSA/CCC/ATEX/IEC .
Temperature Operating R.-25 to 50 C
Terminal TypeScrew
TerminalsScrew terminals
TypeFull Voltage, Non-Rever.
UNSPSC39121529 - Contactors
UPC015082766874, 786689005.
UPC Code786689005269
Voltage Rating120 V
Volts AC Control120
Weight per each0.5
Width0 in, 1.77 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotorsandcontrol.comXTCE009B10A46.2312Eaton Cutler Hammer46.23 @ 1
thumbzoomkentstore.comXTCE009B10A59.9418Eaton/Cutler Hammer59.94 @ 1
thumbzoomturtle.comCUH XTCE009B10A65.561In StockEaton65.56 @ 1
AmazonTPB07G3BYL5Y69.01In Stock2Eaton69.0 @ 1
thumbzoomcontrolparts.comXTCE009B10A71.41In StockEaton71.4 @ 1
simplybreakers.comXTCE009B10A75.991In StockEaton Cutler-Hammer75.99 @ 1
thumbzoomWalker IndustrialXTCE009B10A78.231In StockEaton Cutler-Hammer78.23 @ 1
thumbzoomElliott ElectricXTCE009B10A84.751In StockEaton0.584.75 @ 1
thumbzoomCarlton Bates Company01508276687103.781In StockEATON103.78 @ 1
thumbzoomcappusa.com924607108.491In StockEaton108.49 @ 1
thumbzoomPlatt.com0636351112.27195Eaton112.27 @ 1
thumbzoommidwestapplianceparts.comXTCE009B10A-CU-P113.151In StockCutler Hammer113.15 @ 1
thumbzoomZoroG2079804116.691In StockEaton0.56116.69 @ 1
thumbzoomVoomi SupplyXTCE009B10A117.11In StockEaton117.1 @ 1
thumbzoomhomeessentialsdirect.comXTCE009B10A117.261In StockEATON CUTLER HAMMER117.26 @ 1
thumbzoomptacsolutions.comXTCE009B10A123.612Cutler Hammer-Eaton123.6 @ 1
thumbzoomcrescentelectric.com144546137.07139Eaton137.07 @ 1
thumbzoombscsource.comXTCE009B10A137.991In StockEaton Cutler-Hammer137.99 @ 1
us.rs-online.com70056456157.54142Eaton - Cutler Hammer157.54 @ 1
thumbzoomNational Supply Network8804627162.721In StockEaton Cutler-Hammer162.72 @ 1
thumbzoomNewark51M9137173.8514EATON CUTLER HAMMER173.85 @ 1
Airline HydraulicsEATON XTCE009B10A246.6611396Eaton246.66 @ 1
