Value N04360.037.0075

mpnN04360.037.0075
brandname: GRAINGER
manufacturername: GRAINGER

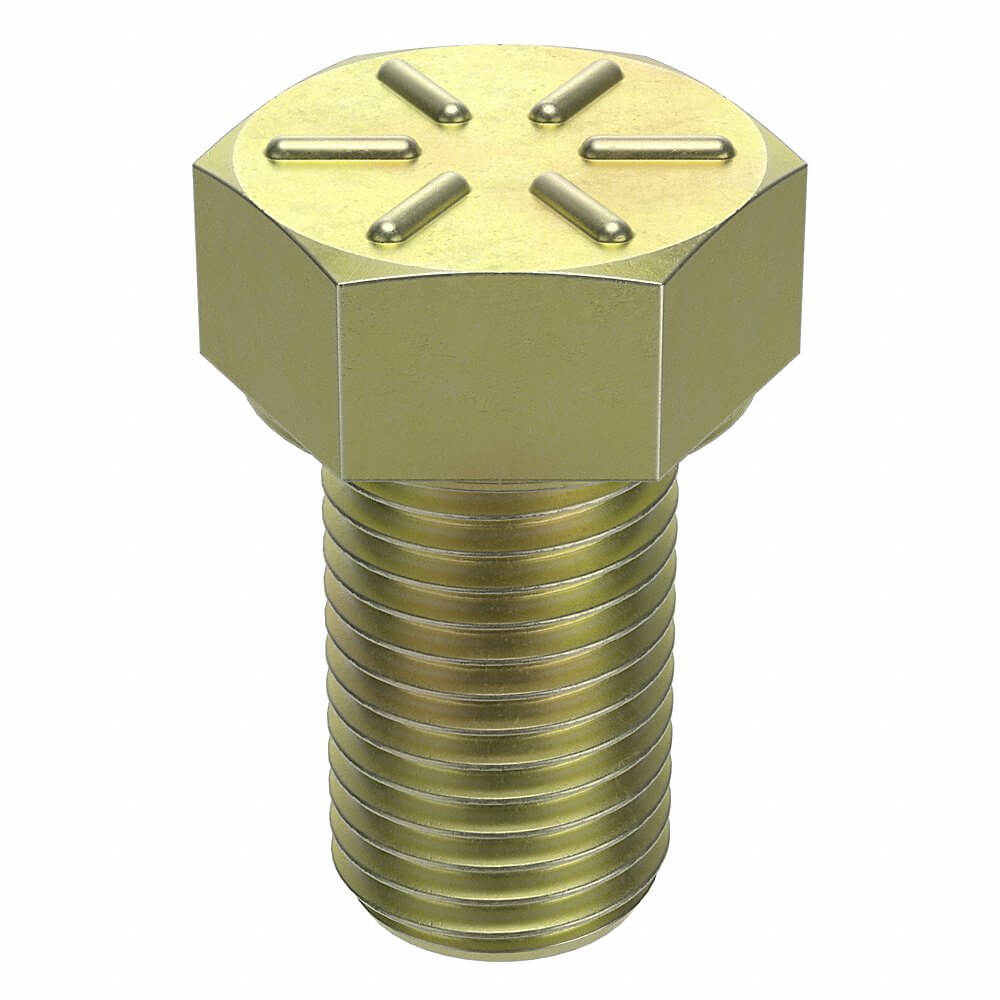

HHCS, 3/8-24x3/4, Steel, Gr 8, YZ, PK50

HHCS, 3/8-24x3/4, Steel, Gr 8, YZ, PK50

zoom

Brand: Value
PartNumber: N04360.037.0075
Model: N04360.037.0075
Color: Steel
PackageQuantity: 1
Binding: Misc.
Manufacturer: Value Brand
Label: Value Brand

Attributes

Key	Value
Basic Material	Steel
Bolt Material	Steel
Country of Origin (subj.	United States
Dia./Thread Size	3/8"-24
Dimensional Standards	ASME B18.2.1
Dimensional Standards	ASME B18.2.1
Drive	Hex
Fastener Length	3/4 in
Fastener Finish	Zinc Yellow
Fastener Industry Stand.	ASME B18.2.1
Fastener Length	3/4 in
Fastener Thread Style	Fully Threaded
Fastener Thread Type	UNF (Fine)
Finish	Yellow Zinc Plated, Zin.
Globally Sourced	Made in USA*
Head Height	15/64 in
Head Style	Hex
Head Type	Hex
Head Width	0.5625 in, 9/16 in
Hex Head Cap Screw Type	Hex Head Cap Screw
Item	Hex Head Cap Screw
Manufacturer Location	Made in USA*
Material	Steel
Material Grade	Grade 8
Material Grade/Class	Grade 8
Material Quality Standa.	SAE J429
Material Quality Standa.	SAE J429
Maximum Temperature	302 Degrees F
Minimum Temperature	-58 Degrees F
Minimum Thread Length	3/4 in
Overall Length	3/4 in
Package Quantity	50
Proof Load	120,000 psi
Rockwell Hardness	C33 to C39, HRC33
Screw Industry Standards	ASME B18.2.1
Screw Size	3/8 in
Standards	ASME B18.2.1 SAE J429
System of Measurement	Inch
Temp. Range	-58 Degrees to 302 Deg.
Tensile Strength	150,000 psi
Thread Direction	Right Hand
Thread Fit	2A
Thread Pitch	Fully Threaded
Thread Size	3/8"-24
Thread Style	Fully Threaded
Thread Type	Fine, UNF (Fine)
Threadlocker Minimum Te.	3/8"-24
Type	Hex Head Cap Screw
