Marathon Electric P194

B007ZQLF24

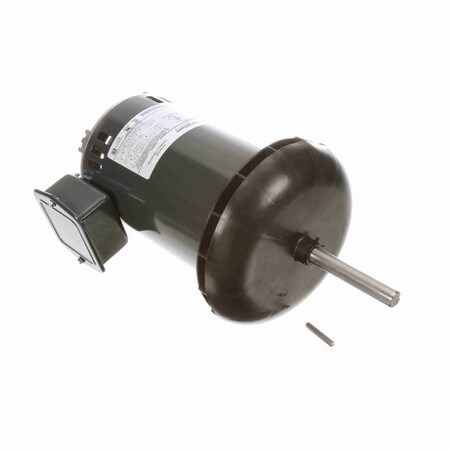

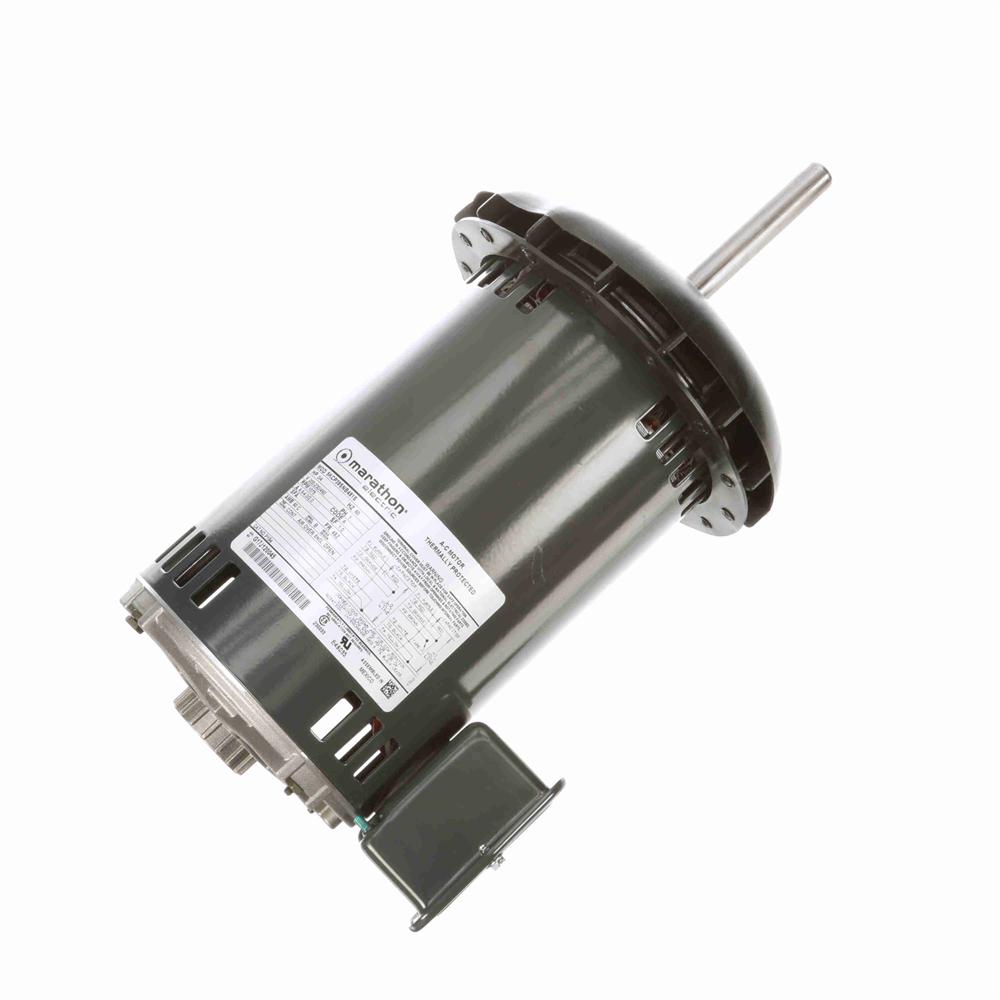

P194 5KCP39SNB481S 0.8 Hp 200-230/460 48Y FR 1075 Rpm

P194 5KCP39SNB481S 0.8 Hp 200-230/460 48Y FR 1075 Rpmzoom

Attributes

Key Value
Alternate Mfr Part Numb.5KCP39SNB481S
Amps4.6-4.0/2.0
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
CapacitorNot Included
CompositionRolled Steel
Country of Origin (subj.Mexico
Current Rating4.6 to 4.0 A
Duty CycleContinuous
Efficiency0.701, 70.1
Efficiency %70.1 %
EnclosureOpen Enclosed, OPEN
Enclosure MaterialSteel
Enclosure TypeOpen Enclosed, OAO (Ope.
Family SeriesMarathon Electric Motors
Frame48Z
Frequency60 Hz
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
Insulation TypeClass B
Item NumberP194
Kilowatts0.56 kW
ManufacturerMarathon Electric
Manufacturer Model #5KCP39SNB481S
Manufacturer Part Number5KCP39SNB481S
Maximum Ambient Tempera.60? C
Motor Diameter5-5/8"
Motor Shell Length8.5"
MountingBand
Mounting OrientationAny
Mounting TypeRound
NEMA Frame48Z
Net Weight21 lbs
Number of Poles6
Number of Speeds1
Overall Length14.23", 14.23 "
Phase1, 1 Phase
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075 RPM, 1075, 1,075 R.
Service Factor1
Shaft Diameter0.63 ", 5/8"
Shaft Length4.88"
Ship Weight21 lbs.
Special FeaturesService Factor - 1
StandardsUL Recognized
Supply Voltage200-230/460 VAC
Thermal ProtectionAutomatic
TypePermanent Split Capacit.
UPC Code722856038050
Voltage200/230/460
Voltage (AC)200-230 VAC, 460 VAC
Volts200, 230, 460
