Taco 0011-F4

B006XXMR5Y

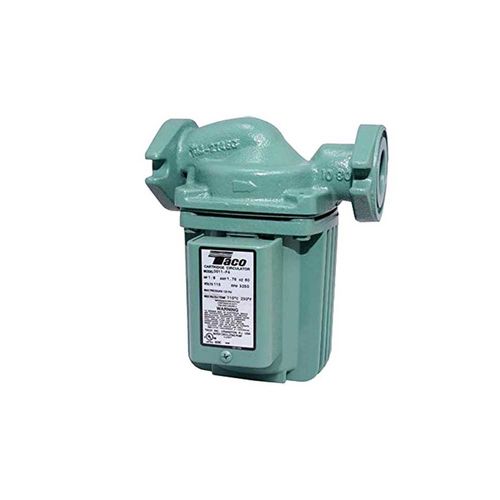

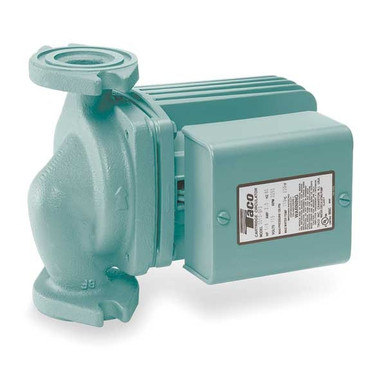

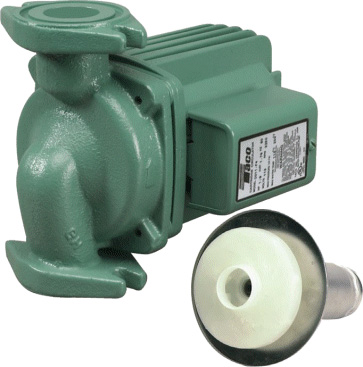

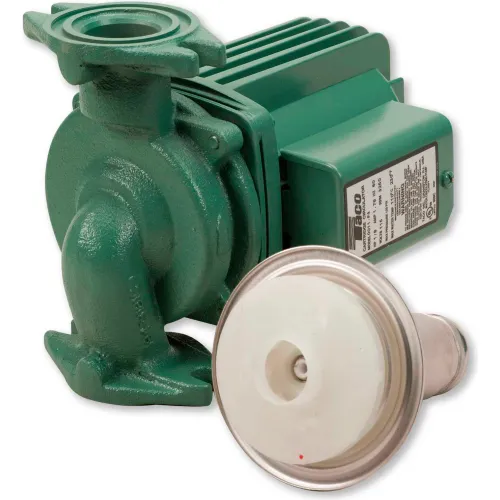

Taco 0011-F4 Circulator Pump, 0-31 Gpm Flow Range, 1/8 hp, Cast Iron

Taco 0011-F4 Circulator Pump, 0-31 Gpm Flow Range, 1/8 hp, Cast Ironzoom

Attributes

Key Value
AMP1.76
Amps1.76 A, 1.76
Body Gasket MaterialEPDM
BrandTaco
CategoryIndustrial Automation a.
Collection0011 Series
ColorGreen
Compatible Discharge Pi.3/4 in, 1 in, 1 1/4 in,.
Compatible Intake Pipe .3/4 in, 1 in, 1 1/4 in,.
Connection Size1/2"
Connection StyleFlange
Connection TypeFlanged, Flange
Current Stock97
Electrical Voltage115 Volt
End Connection 1Flanged
End ConnectionsFlanged
Face to Face Dimension6 1/2 in
Flange or Union IncludedNo
Flange/Union IncludedNo
Flow Rate31 GPM
For Use With Potable Sy.Yes
Frequency60 Hz
Height6-1/2 in
Horsepower1/8 hp, 1/8
Housing MaterialCast iron
HP1/8 hp
Impeller MaterialPolypropylene
IncludesFlange Gaskets, Impedan.
Inlet/Outlet Size3/4 in to 1-1/2 in
International ShippingNo
ItemHydronic Circulating Pu.
Lead TimeExpected to ship in 1-2.
Length7 5/8 in, 7-1/2 in
ManufacturerTaco
Manufacturer Warranty L.3 yr
Manufacturers Warranty .3 yr
MaterialCast iron
Max. GPM @ Head30 gpm @ 1 ft
Maximum Feet of Head31 ft, 22
Maximum Flow Rate @ 1 F.30 gpm
Maximum Flow Rate @ 10 .23 gpm
Maximum Flow Rate @ 15 .18 gpm
Maximum Flow Rate @ 20 .13 gpm
Maximum Flow Rate @ 25 .7 gpm
Maximum Flow Rate @ 30 .2 gpm
Maximum Flow Rate @ 5 F.27 gpm
Maximum Flow Rate @ 50 .27 gpm
Maximum Immersible Depth22 ft
Maximum Media Temperatu.230 Degrees F
Maximum Operating Press.150 psi
Maximum RPM3,250 RPM
MfrTaco
Min. GPM @ Head6.5 gpm @ 25 ft
Minimum Media Temperatu.40 Degrees F
Motor Size1/8 hp
Mounting LocationIn-Line
Mpn0011-f4
Nameplate Voltage115V AC
Number of Speeds1
Overall Height6.5 in
Overall Length7.5 in
Overall Width5.63 in
PackageBox
Part StatusActive
Phase1, Single, Single Phase
Phase - Pumps1
Power SourceAC
Pressure - Maximum125 PSI
Pressure Rating125 PSI
ProductCirculating Pump
Pump Features1 Phase
Pump Housing MaterialCast iron
Pump TypeStandard, Permanent Spl.
Rotor TypeWet
RPM3250
Series*, 0011, 0011-f4
Series Family00
SKUZO-G0370036
StandardsUL-CUS
SubCategoryPumps
TypePumps
UL ListedYes
UPC687752190991
UseHeat Only
Voltage115V
Volts115V
Weight12.00
Width5-5/8 in, 6 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0009X3HN0226.991In StockTaco226.99 @ 1
AmazonSCB008HQ75CA318.891In StockTaco318.89 @ 1
thumbzoomHome PerfectTAC0011F4345.371In StockTaco345.37 @ 1
thumbzoomPexUniverse0011-F4358.951In StockTaco358.95 @ 1
thumbzoomCanarsee0011-F4358.9511TACO358.95 @ 1
thumbzoomclimatedoctors.comTACO21396.4411TACO396.44 @ 1
thumbzoomphwarehouse.com38044398.69112Taco12.0398.69 @ 1
AF SupplyTAC0011F4404.211In StockTaco404.21 @ 1
thumbzoomPlumbersStock399617404.211In StockTaco19.29404.21 @ 1
thumbzoomacwholesalers.com0011-F4404.211In StockTACO12.0404.21 @ 1
thumbzoomecomfort.com0011-F4404.211In StockTaco404.21 @ 1
Digi-Key15831880407.952503Taco407.95 @ 1
thumbzoomplumbing-deals.comTAC0011F4410.621In StockTaco410.62 @ 1
grainger.caWWG4PC78417.969901221In StockTACO12.0417.96990122 @ 1
thumbzoomZoroG0370036424.991130Taco12.0424.99 @ 1
thumbzoomblackhawksupply.com0011-F4431.251In StockTaco431.25 @ 1
hvacdiscountstore.comTAC--0011-F4432.7114TACO432.7 @ 1
thumbzoommidwestapplianceparts.com0011-F4-TA-P441.881In StockTaco441.88 @ 1
thumbzoomState SupplyTC1112451.611In StockTaco12.0451.61 @ 1
thumbzoomVoomi Supply0011-F4454.611In StockTaco454.61 @ 1
thumbzoomindustrialstores.com0011-F4502.441In Stock26Taco502.44 @ 1
thumbzoomsimsupply.comZO-G0370036503.02197Taco503.02 @ 1
ferguson.com1350169508.971In StockTaco508.97 @ 1
thumbzoomGlobal IndustrialWBB335217529.01In StockTaco529.0 @ 1
thumbzoompumpproducts.com0011-F4543.251In StockTaco543.25 @ 1
thumbzoomNational Supply NetworkB335217586.721In StockTACO586.72 @ 1
thumbzoomRaptor SuppliesAD9BUF698.5001791In StockTACO698.500179 @ 1
