- mpn901-9889-RFX
- brandname: Amphenol RF
- manufacturername: Amphenol RF

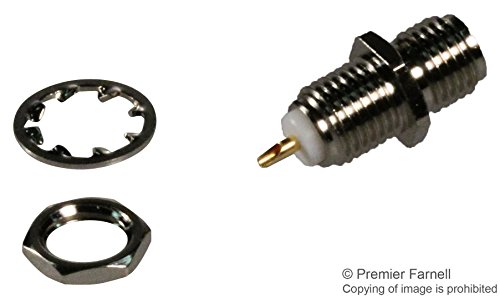

AMPHENOL RF 901-9889-RFX RF/COAXIAL SMA BULKHEAD JACK STR 50 OHM SOLDER (1 piece), Size: 1 pack, Size: 1 pack, Model: , Electronic Store
- PartNumber: 901-9889-RFX
- Model: 901-9889-RFX
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Amphenol RF
- Label: Amphenol RF
Attributes
| Key | Value |
|---|
| Alternate Part No. | 523-901-9889-RFX |
| Angle | straight |
| Application | Commercial |
| Base Product Number | 901-98 |
| Body Finish | Nickel |
| Body material | Brass |
| Body Material | Brass |
| Body plating | Nickel |
| Body Style | Bulkhead |
| Brand | Amphenol RF |
| Cable Group | - |
| Category | Connectors, Interconnec. |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector | socket |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Sock. |
| Contact material | Beryllium Copper |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Contact plating | gold-plated |
| Contact Termination | Solder Cup, Solder |
| Coupling Mechanism | Threaded |
| Description | CONN SMA RCPT STR 50 OH. |
| Detailed Description | SMA Connector Receptacl. |
| Dielectric Material | Tetrafluoroethylene Flu. |
| Digi-Key Part Number | ARFX1227-ND |
| Electrical mounting | soldering |
| Fastening Type | Threaded |
| Features | - |
| Frequency | 18GHz |
| Frequency - Max | 18 GHz, 18GHz |
| Gender | Jack |
| Housing Color | Silver |
| Housing Finish | Nickel |
| Housing Material | Brass |
| Impedance | 50Ohm, 50 Ohms |
| Includes | 3 pcs - 1 Connector, 1 . |
| Ingress Protection | - |
| Insertion Loss | - |
| Insulation Resistance | 5000 MOhms |
| Insulator material | PTFE |
| Kind of connector | female |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length | 0.68 in |
| Manufacturer | Amphenol RF, Amphenol |
| Manufacturer Part No. | 901-9889-RFX |
| Manufacturer Part Number | 901-9889-RFX |
| Manufacturer Product Nu. | 901-9889-RFX |
| Manufacturer Standard L. | 8 Weeks, 14 Weeks |
| Mating Cycles | 100, 500 |
| Mating Type | Threaded |
| Max. frequency | 12.4GHz |
| Maximum Frequency | 12.4 GHz |
| Mechanical durability | 100 cycles |
| Mechanical mounting | for panel mounting, |
| Mfr | Amphenol RF |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Panel Mount, Bulkhead, . |
| Number of Ports | 1 |
| Operating Temperature | -65?C ~ 165?C, -65 |
| Operating temperature | -65...165?C |
| Operating Temperature R. | - 65 C to + 165 C |
| Orientation | straight |
| Package | Bulk |
| Packaging | Bulk, Bulk Pack |
| Part # Aliases | 16R0946 713-4335 901-98. |
| Polarity | Standard |
| Primary Type | SMA |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial. |
| Product Status | Active |
| RF Series | SMA |
| Series | SMA Series, -, SMA |
| Shield Termination | Solder |
| Spatial orientation | straight |
| Standard Package | 1 |
| Termination | Solder Cups |
| Termination Style | Solder Cup |
| Type | Bulkhead Jack |
| Type of connector | SMA |
| Wave impedance | 50? |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| iodParts | 901-9889-RFX | 2.72 | 100 | 1183 | | Amphenol | | 2.72 @ 100 |
| Onlinecomponents.com | 901-9889-RFX | 5.16 | 1 | 93 | | AMPHENOL RF | | 5.16 @ 1 |
| Hawk Electronics | 901-9889-RFX | 5.6 | 100 | In Stock | | Amphenol-RF | | 5.6 @ 100 |
| Hotenda | H836512 | 6.65 | 1 | In Stock | | Amphenol RF | | 6.65 @ 1 |
 | Digi-Key | 272185 | 8.256 | 1 | 1888 | | Amphenol RF | | 8.256 @ 1 |
 | Newark | 01F2202 | 8.3 | 1 | In Stock | | AMPHENOL RF | | 8.3 @ 1 |
| TME | 901-9889-RFX | 8.53 | 1 | In Stock | | AMPHENOL RF | | 8.53 @ 1 |
 | jensentools.com | 57490.1 | 8.63 | 1 | 100 | | Amphenol RF | | 8.63 @ 1 |
| us.rs-online.com | 70142766 | 10.1 | 1 | 2 | | Amphenol RF | | 10.1 @ 1 |
 | swatee.com | 901-9889-RFX | 10.18 | 1 | 399 | | Amphenol | | 10.18 @ 1 |
