ASHCROFT GC357MO2L41EW7500#G

B07VKQ7P5J

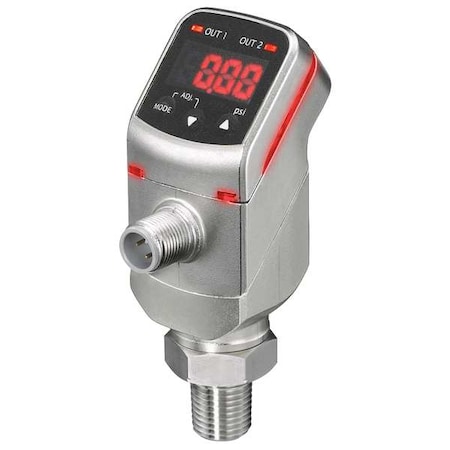

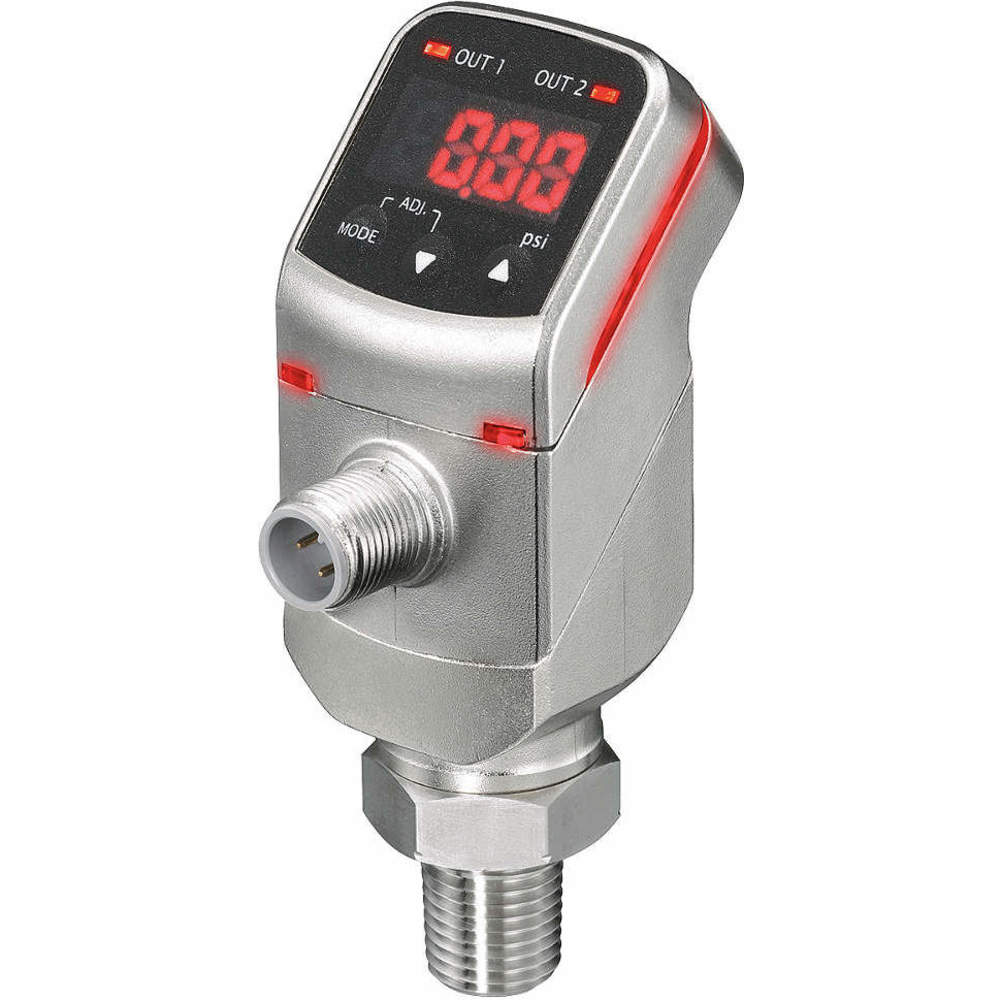

Pressure Transducer/Switch, 0 to 7500 psi

Pressure Transducer/Switch, 0 to 7500 psizoom

Attributes

Key Value
Accuracy+/-1% of Full Scale
Accuracy - Transmitter+/-1.00% Full Scale
Burst Pressure3x Range
Calibration Certificate-
Calibration Certificate.No
Compatible With-
Connection Location - T.Bottom
Country of Origin (subj.Japan
Diameter2.28 in
Display4 Digit LED
Display - Transmitter4 Digit LED
Display Screen TypeLED
Display TypeDigital
Display Unitspsi
Electrical Connection4-Pin M12 Connector
Electrical Connections4 Pin M12
Electrical Connections .4 Pin M12 Connector
Enclosure RatingIP67
Explosion/Fire ProofNo
FeaturesPush Button Configurati.
Fitting Material17-4PH Stainless Steel,.
For Use With-
For Use With Media TypeLiquid, Gas
HousingNickel Plated Aluminum
Housing Height2 13/16 in
Housing Length1 5/16 in
Housing MaterialAluminum
IncludesInstructions
Intrinsically SafeNo
IP RatingIP67
ItemIndicating Transmitter
Loop ResistanceDependent on Loop Suppl.
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Pressure (PSI)18,000 psi
Maximum Operating Tempe.158 Degrees F
Maximum Pressure7,500 psi
Minimum Operating Tempe.-4 Degrees F
Minimum Pressure0 psi
NEMA Rating-
Number of Wires4
Operating Temp.-4 to 158 F
Operating Temp. - Trans.-4 Degrees to 158 Degr.
Output4 to 20mA at 16 to 36VDC
Output - Transmitter4 to 20mA DC
Overall Depth - Transmi.3.05 in
Overall Height3.77 in
Overall Height - Transm.3.77 in
Overall Length1.34 in
Overall Width1.34 in
Overall Width - Transmi.1.34 in
Overpressure1.5x Range
Power Required16 to 36VDC
Power Required - Transm.16 to 36V DC
Pressure Range0 psi to 7,500 psi
Pressure Unitspsig
Primary Scale Unitspsi
Process Connection1/4" NPT Male Lower
Process Connection Gend.Male
Process Connection Loca.Back
Process Connection Size1/4 in
Process Connection Size.1/4 in
Process Connection TypeNPT
Process Connection Type.MNPT
Range0 to 7500 psi
Range Units - Transmitt.psi
Range Values - Transmit.0 to 7500
Response Time5 msec
SeriesGC35
ShapeIrregular
Shape - TransmitterIrregular
StandardsCE, RoHS
Storage Temperature Ran.-4 Degrees F to 158 Deg.
Thermal Error+/-0.1% Full Scale
Transmitter TypePressure Transmitter
Weight150 g
Wetted MaterialsStainless Steel
Wetted Materials - Tran.Stainless Steel
Wiring Entry - Transmit.None

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0132991525.01In Stock26Ashcroft0.42525.0 @ 1
thumbzoomRaptor SuppliesAE3GEU788.56976251In StockASHCROFT788.5697625 @ 1
