Belden 6545PA 0081000

B075X9LTJY

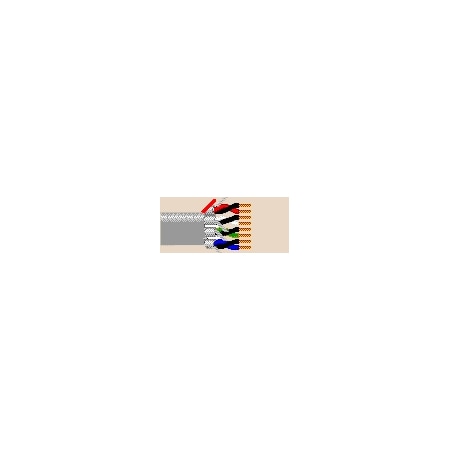

Belden 6545PA Plenum 22 AWG Pro Audio and Intercom System Multi-Conductor Cable

Belden 6545PA Plenum 22 AWG Pro Audio and Intercom System Multi-Conductor Cablezoom

Attributes

Key Value
ApplicationFor security systems, i.
Cable TypeSTP
Conductor MaterialBare Copper (BC)
Conductor Size22 AWG
Configuration6 Pair
Country of Origin (subj.Unknown
Insulation MaterialFluorinated Ethylene Pr.
Insulation Thickness0.01 in.
Jacket ColorGray
Jacket MaterialPolyvinylidene Fluoride.
Jacket Thickness0.015 in.
Length1000 ft
Nominal Impedance50 Ohms
Number of Conductors12
Number of Pairs6
Operating Temperature75 ?C
Outer Diameter0.3 in.
PackagingCoil
Product HeaderNew Generation Communic.
Series6545PA Series
ShieldBeldfoil
Shield MaterialAluminum/Polyester Tape
ShieldingIndividual Foil
StandardsUL NEC Type CMP/cUL CEC.
Stranding7x30
Temperature, Rating-20 to 150 C
Voltage Rating300 V
Wire Size22 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomturtle.comBDN 6545PA 00810002.22145Belden2.22 @ 1
kirbyrisk.com20951933.59398100027Belden3.59398 @ 1000
Digi-KeyBEL8838-1000-ND1431.78145Belden Inc.1431.78 @ 1
thumbzoomZoroG11589732115.7114530Belden Bav2115.71 @ 1
us.rs-online.com700043733068.26127Belden3068.26 @ 1
thumbzoomNewark30H35403266.151In StockBELDEN3266.15 @ 1
