GRAINGER APPROVED 4FMD9

mpn4FMD9
brandname: GRAINGER APPROVED
manufacturername: GRAINGER APPROVED

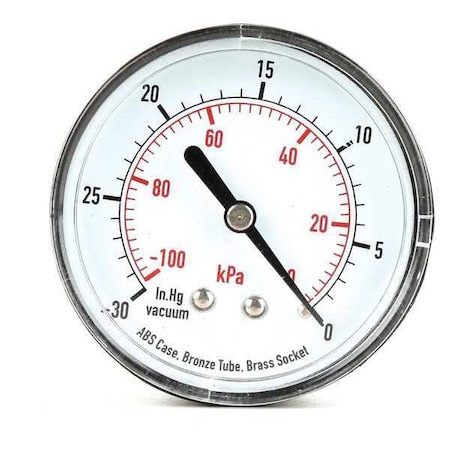

Vacuum Gauge, Test, 2-1/2 in

Brand: GRAINGER APPROVED
PartNumber: 4FMD9
PackageQuantity: 1
Manufacturer: GRAINGER APPROVED
Label: GRAINGER APPROVED

Attributes

Key	Value
Accuracy	+/-3-2-3%
Accuracy Scale	Mid-Scale
Ambient Operating Tempe.	-40 Degrees to 150 Degr.
Application	Test and Measurement
Basic Gauge Case Materi.	Plastic
Basic Gauge Socket Mate.	Brass
Basic Gauge Wetted Parts	Brass / Bronze
Bezel Material	Crimped Stainless Steel
Blowout Safety Back	No
Case Colour	Black
Cleaned for Oxygen Serv.	No
Connection Location	Back
Connection Size	1/4 in NPT
Dial Colour	White
Dry Dampening Feature	None
Field Fillable	No
Freeze Resistant Moveme.	No
Gauge Accuracy	+/-3-2-3%
Gauge Application	General-Purpose Case
Gauge Case Color	Black
Gauge Case Liquid	None
Gauge Case Material	ABS Plastic
Gauge Connection Locati.	Center Back
Gauge Connection Size	1/4 in
Gauge Connection Type	MNPT
Gauge Nominal Dial Size	2 1/2 in
Gauge Panel Mountable	No
Gauge Primary Range Sma.	1
Gauge Primary Range Uni.	in Hg
Gauge Secondary Range U.	kPa
Gauge Secondary Range V.	-100 to 0
Hazardous Location Rati.	Not Rated
Includes Calibration Ce.	No
Includes Mounting Hardw.	No
Includes Vent Plug	No
IP/NEMA Rating	Not Rated
Item	Commercial Vacuum Gauge
Lens Material	Acrylic
Liquid Filled	No
Liquid-Filled Case	No
Mounting Type	Stem-Mount
Nominal Dial Size	2 1/2 in
Non-Sparking	No
Operating Temp. Range	-40 Degrees to 150 Deg.
Panel-Mountable	No
Pressure and Vacuum Gau.	Vacuum Gauge
Pressure Gauge Type	General Purpose Dial Pr.
Pressure Range Type	Vacuum
Primary Pressure Range	30 to 0
Primary Scale Minor Gra.	1, 2
Primary Scale Units	in Hg
Process Connection Gend.	Male
Process Connection Loca.	Center Back
Process Connection Size	1/4 in
Process Connection Type	NPT
Removable Bezel	No
Scale Type	Dual
Secondary Pressure Range	-100 to 0
Secondary Scale Units	kPa
Sensor Material	Bronze
Smallest Graduation	1 in Hg
Socket Material	Brass
Vibration Resistance	None

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0039042	4.69	1	101		Zoro Select	0.21	4.69 @ 1
	grainger.ca	GGF4FMD9	8.94918798	1	In Stock		GRAINGER APPROVED	0.21	8.94918798 @ 1
