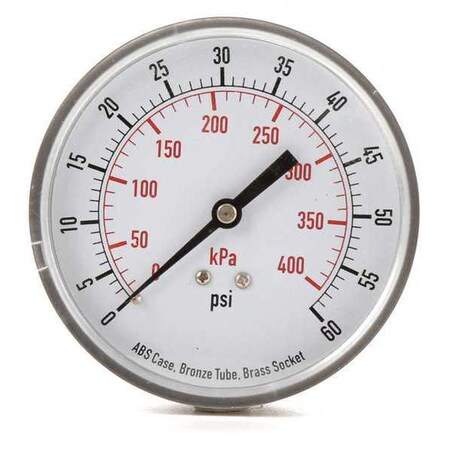

Pressure Gauge, Test, 3-1/2 in

mpn4FMG3
brandname: GRAINGER APPROVED
manufacturername: GRAINGER APPROVED

Pressure Gauge, Test, 3-1/2 in

Model: 4FMG3
Manufacturer: ZORO SELECT

Attributes

Key	Value
Accuracy	+/-3-2-3%
Accuracy Scale	Mid-Scale
Ambient Operating Tempe.	-40 Degrees to 150 Deg.
Basic Gauge Case Materi.	Plastic
Basic Gauge Lens Materi.	Plastic
Basic Gauge Sensor Mate.	Bronze
Basic Gauge Socket Mate.	Brass
Basic Gauge Wetted Parts	Brass / Bronze
Bezel Material	Crimped Stainless Steel
Blowout Safety Back	No
Calibration Certificate.	No
Case Color	Black
Case Material - Gauge	Plastic
Cleaned for Oxygen Serv.	No
Color	Black
Connection Location	Center Back
Connection Size	1/4 in NPT
Country of Origin (subj.	China
Dial Color	White
Dial Size (In.)	3-1/2
Dry Dampening Feature	None
Field Fillable	No
Freeze Resistant Moveme.	No
Gauge Accuracy	+/-3-2-3%
Gauge Application	Test
Gauge Case Color	Black
Gauge Case Liquid	None
Gauge Case Material	ABS plastic
Gauge Connection Locati.	Center Back
Gauge Connection Size	1/4 in
Gauge Connection Type	MNPT
Gauge Lens Material	Acrylic
Gauge Nominal Dial Size	3 1/2 in
Gauge Panel Mountable	No
Gauge Primary Range Sma.	1
Gauge Primary Range Uni.	psi
Gauge Primary Range Val.	0 to 60
Gauge Secondary Range U.	kPa
Gauge Secondary Range V.	0 to 400
Gauge Sensor Material	Bronze
Gauge Socket Material	Brass
Gauge Wetted Parts	Brass / Bronze
Hazardous Location Rati.	Not Rated
Includes Calibration Ce.	No
Includes Mounting Hardw.	No
Includes Vent Plug	No
IP/NEMA Rating	Not Rated
Item	Commercial Pressure Gau.
Lens Material	Acrylic
Lens Material - Gauge	Plastic
Liquid Filled	No
Liquid-Filled Case	No
Material	ABS plastic
Max. Pressure (PSI)	60
Nominal Dial Size	3 1/2 in
Non-Sparking	No
Operating Temp. Range	-40 Degrees to 150 Deg.
Panel-Mountable	No
Pressure and Vacuum Gau.	Pressure Gauge
Pressure Gauge Type	General Purpose Dial Pr.
Pressure Range Type	Pressure
Primary Graduations	1, 2
Primary Pressure Range	0 to 60
Primary Scale Minor Gra.	1, 2
Primary Scale Units	psi
Process Connection Gend.	Male
Process Connection Loca.	Center Back
Process Connection Size	1/4 in
Process Connection Type	NPT
Range	0 to 400 kPa, 0 to 60 p.
Removable Bezel	No
Scale Type	Dual
Secondary Pressure Range	0 to 400
Secondary Range	0 to 400 kPa
Secondary Scale Units	kPa
Sensor Material	Bronze
Smallest Graduation	1 psi
Socket Material	Brass
Vibration Resistance	None

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0039767	9.86	1	In Stock		Zoro Select	0.3	9.86 @ 1
