- mpnLCB4-38-L
- brandname: Panduit
- manufacturername: Panduit

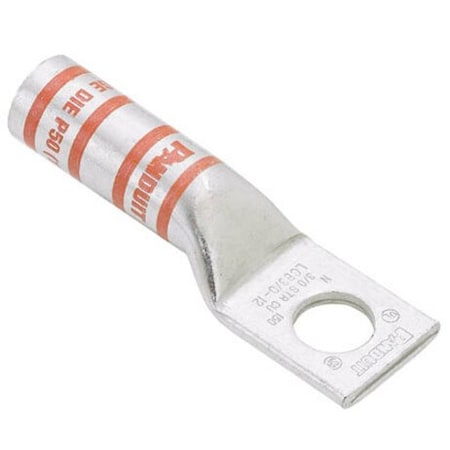

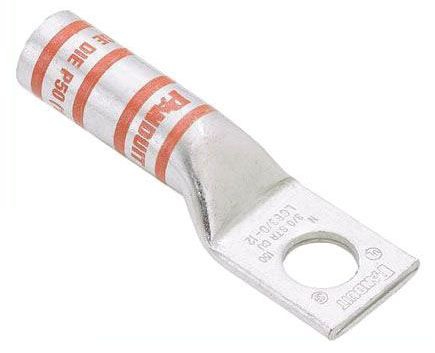

LCB4-38-L, One-Hole, Long Barrel Lug, 4 ? #3 AWG STR, 2 AWG SOL Wire, 3/8" Stud Hole. (5 Items)
- Brand: Panduit
- PartNumber: LCB4-38-L
- Model: LCB4-38-L
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Approvals | CSA, UL |
| AWG Range | 35 |
| Base Product Number | LCB4 |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 4 to 3 AWG STR, 2 AWG S. |
| Catalog Number | LCB4-38-L |
| Category | Connectors, Interconnec. |
| Color | Gray |
| Color Code | Gray |
| Color Family | Gray |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Diameter - Barrel ID | 0.280" (7.11mm) |
| Diameter - Barrel OD | 0.380" (9.65mm) |
| Diameter - Ring ID | 0.410" (10.41mm) |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 1.56 lbs |
| GTIN | 00074983432752 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCB4-38-L |
| Item Type | Copper Compression Conn. |
| Length | 2.17" |
| Length - Overall | 2.170" (55.12mm) |
| Lug Wire Size | 4 AWG |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | LCB4-38-L |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 2 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 4 AWG |
| Mounting | 1.13, 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Package | Bulk |
| Part Status | Active |
| Product Series | Pan-Lug Compression |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | #4 ? 3 AWG Code STR, #2. |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Stud Size | 3/8 in, 42.95 |
| Stud/Tab Size | 3/8 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.070" (1.78mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| UNSPSC | 39121405 |
| UPC | 074983432752 |
| UPC Code | 074983432752 |
| Width | 0.62" |
| Width - Outer Edges | 0.620" (15.75mm) |
| Wire Gauge | 4 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCB4-38-L | 2.21 | 1 | 5 | | PANDUIT | | 2.21 @ 5 |
 | French Gerleman | PANDLCB438L | 2.58 | 1 | 5 | | Panduit | | 2.58 @ 5 |
| Digi-Key | 4565111 | 3.41 | 500 | 5 | | Panduit Corp | | 3.41 @ 5 |
 | Newark | 52AH0838 | 4.25 | 1 | 10 | | PANDUIT | | 4.25 @ 5 |
 | alldataresource.com | LCB4-38-L | 4.41 | 1 | 5 | | Panduit | | 4.41 @ 5 |
 | Zoro | G0774772 | 4.47 | 2 | 5 | 58 | Panduit | 1.56 | 4.47 @ 5 |
 | Galco | LCB4-38-L-PNDT | 4.91 | 50 | 5 | | Panduit | 1.56 | 4.91 @ 50 |
 | Platt.com | 0688058 | 5.23 | 1 | 5 | | Panduit | | 5.23 @ 5 |
| Onlinecomponents.com | LCB4-38-L | 5.5 | 1 | 40 | | PANDUIT | | 5.5 @ 5 |
 | crescentelectric.com | 150237 | 5.59 | 1 | 5 | | Panduit | | 5.59 @ 5 |
| us.rs-online.com | 71263496 | 5.91 | 50 | 5 | | Panduit | | 5.91 @ 50 |
| Airline Hydraulics | PANDUIT LCB4-38-L | 5.92 | 1 | 5 | | Panduit Corp | | 5.92 @ 5 |
| steinerelectric.com | 348210 | 234.12 | 1 | 5 | | Panduit | | 234.12 @ 5 |
 | gordonelectricsupply.com | LCB4-38-L | 260.0 | 1 | 5 | 12 | PANDUIT | | 260.0 @ 5 |
 | turtle.com | PAN LCB4-38-L | 578.76 | 1 | 5 | | Panduit | | 578.76 @ 5 |
| Graybar | 22123702 | 641.424 | 1 | 40 | | Panduit | | 641.424 @ 5 |
