- mpnPV10-10LF-L
- brandname: Panduit
- manufacturername: Panduit

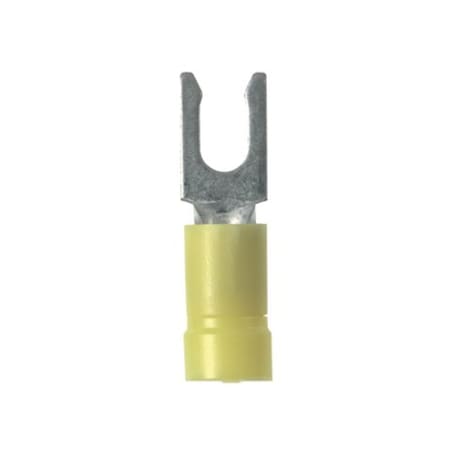

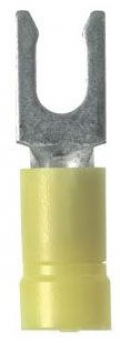

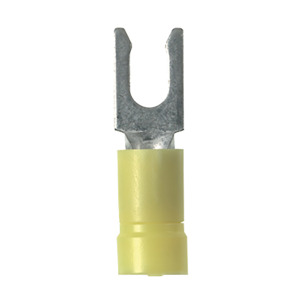

Panduit PV10-10LF-L Locking Fork Terminal, Funnel Entry, Butted Seam, 12 - 10 AWG, #10 Stud Size, Vinyl Insulated
- Brand: Panduit
- PartNumber: PV10-10LF-L
- Model: PV10-10LF-L
- Size: 50-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 12 - 10 |
| Angle | Straight |
| Approvals | CSA, UL |
| AWG Range | #10 |
| Brand | Pan-Term? |
| Color | Yellow |
| Color Family | Yellow |
| Connection Material | Tin-Plated Copper |
| Contact Material | Copper |
| Contact Plating | Tin |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Finish | Tin-Plated |
| Gross Weight | 0.245 lbs |
| Insulated | Insulated |
| Insulation Color | Yellow |
| Insulation Diameter | 0.225 " |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item | Fork Terminal |
| Item Number | PV10-10LF-L |
| Manufacturer | Panduit |
| Manufacturer Part Number | PV10-10LF-L |
| Material | Copper, Vinyl, Copper |
| Max Temp | 221 ?F |
| Max. Voltage | 600V |
| Net Weight | 0 lbs |
| Outer Diameter | 0.23 in. |
| Overall Length | 1.04 " |
| Overall Width | 0.34 " |
| Package Quantity | 50 |
| Packaging | 50 per Package |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Seam | Butted |
| Series | Pan-Term PV10 Series |
| Special Features | Barrel |
| Stud Size | #10, M5 (#10) |
| Terminal Material | Copper |
| Terminal Type | Locking, Spade/Fork - L. |
| UNSPSC | 39121409 |
| UPC Code | 074983808168 |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Width | 0.34 in. |
| Wire Range | 12 to 10 AWG |
| Wire Size | 12-10 AWG, 10-12 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.313 " |
