Schneider Electric LP1K09004BD

B00DKYOH4S

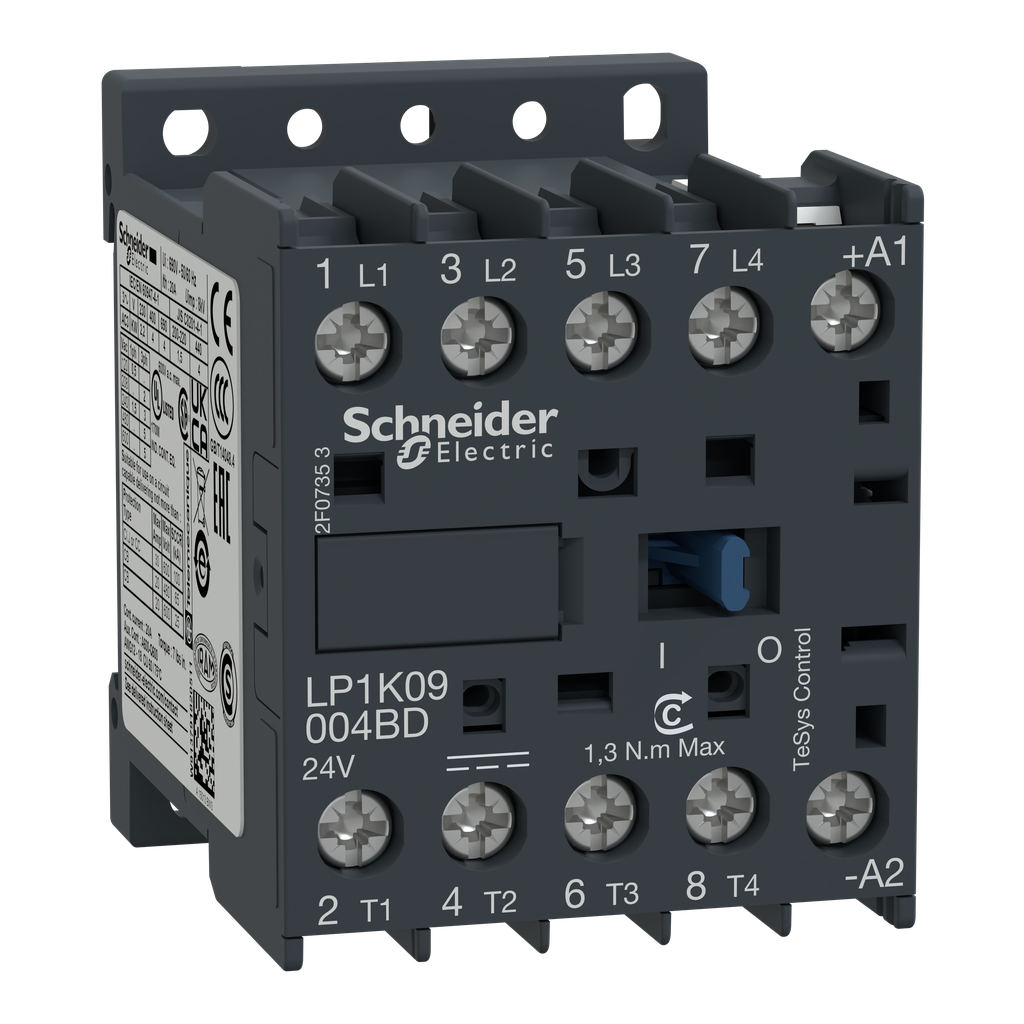

Schneider Electric Contactor, 24Vdc, Panel - LP1K09004BD

Schneider Electric Contactor, 24Vdc, Panel - LP1K09004BDzoom

Attributes

Key Value
[Icw] Rated Short-Time .90 A 50 ?C - 1 s power .
[Ith] Conventional Free.20 A 60 ?C power circui.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 600 V UL .
[Uimp] Rated Impulse Wi.8 kV
Ambient Air Temperature.-25-50 ?C
Ambient Air Temperature.-50-80 ?C
Applicationresistive load
Average Impedance3 mOhm - Ith 20 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLP1K09004BD
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1503003EN
Coil Power Rating3-3 W 20 A Degrees C
Coil VoltagePOWER CIRCUIT 690 V AC .
Coil Volts24 V DC
ConnectionSCREW CLAMP TERMINALS 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration4 NO
Contact Current Rating20 A
Contact Rating20 A 50 A Degrees C POW.
Contactor Applicationresistive load
Control Circuit TypeDC standard
Control Circuit Voltage.operational 0.8...1.15 .
Control Voltage24 V
Country of OriginFrance
Country of Origin (subj.France
Depth57 mm
Device Short NameLP1K
Environmental DisclosureENVPEP1503003EN
Eu Rohs DirectiveCompliant
Flame RetardanceV1 conforming to UL 94 .
Full Load Amps-Inductive6 A
Heat Dissipation1.3-1.3 W
Height58 mm
Hold-In Power Consumpti.3-3 W 20 ?C
Inrush Power In W3-3 W 20 ?C)
Ip Degree Of ProtectionIP2X
Irms Rated Making Capac.110 A AC power circuit .
ItemIEC Magnetic Contactor
Item Typecontactor
Made in USANo
ManufacturerSchneider Electric
Maximum Operating Rate3600 cyc/h
Mechanical Durability10 Mcycles
Mercury FreeYes
Motor Power Kw4 kW 690 V AC 50/60 Hz .
MountingRail Plate
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount
Net Weight0.225 kg
Number of Poles4
Operating Altitude6561.68 ft (2000 m) wit.
Operating Cycles3600 cyc/h
Operating Temperature-25-50 A Degrees C
Operating Time30...40 ms coil energis.
Overvoltage CategoryIII
Pole Contact Composition4 NO
Poles Description4P
Product CertificationsCB Scheme || CCC || UL .
Product Or Component Ty.contactor
RangeTeSys
Rated Breaking Capacity110 A 220...230 V IEC 6.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys Micra Series
Size45 MM,57 MM,58 MM
Special Features20 A AT
StandardCSA-UL,V1 UL 94-REQUIRE.
StandardsBS 5424 ; IEC 60947 ; N.
Sub BrandTESYS K
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp
Tightening Torque0.8-1.3 N.m screw clamp.
Toxic Heavy Metal FreeYes
UPC785901641759
UPC Code785901641759
Utilisation CategoryAC-1
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELP1K09004BD35.221In StockSCHNEIDER ELECTRIC35.22 @ 1
RS Delivers609-418048.636198Schneider Electric48.636 @ 1
thumbzoomkempstoncontrols.co.ukLP1K09004BD49.7667691In StockSchneider49.766769 @ 1
thumbzoomZoroG084952195.931In Stock50Schneider Electric0.595.93 @ 1
thumbzoommayerelectric.comSQDLP1K09004BD106.931In StockSQUARE D0.495106.93 @ 1
thumbzoomsustainablesupply.comC3039519120.371In StockSchneider Electric0.5120.37 @ 1
thumbzoomcrescentelectric.com707976125.131In StockSchneider Electric125.13 @ 1
us.rs-online.com70379454134.43125Schneider Electric134.43 @ 1
thumbzoomNational Supply Network69527786139.821In StockSchneider Electric139.82 @ 1
thumbzoomNewark93B2943143.971In StockSCHNEIDER ELECTRIC143.97 @ 1
