Square D HU461

B01BFSG1NU

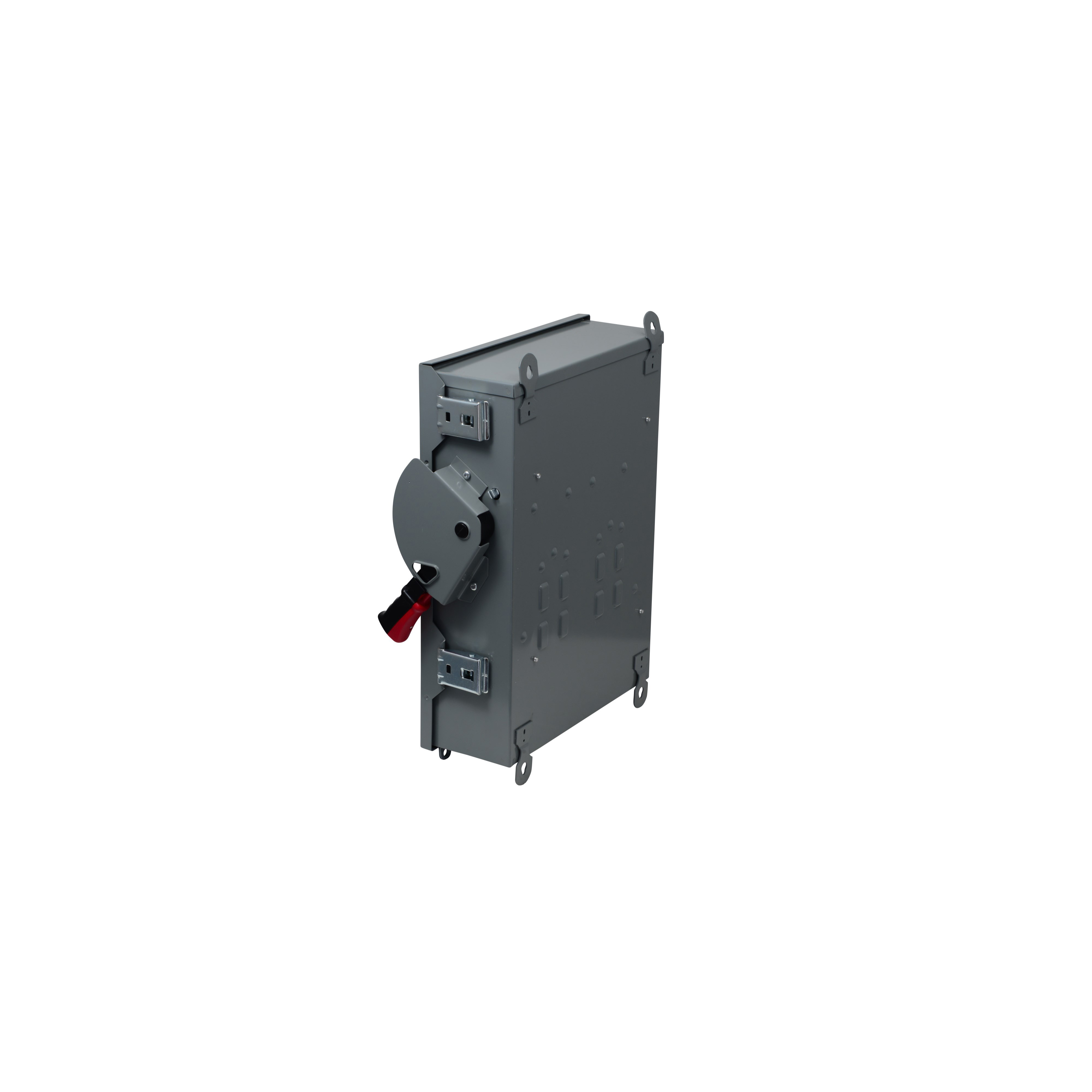

SQUARE D HU461 U 30A 600V 3Ph NN1 Used

SQUARE D HU461 U 30A 600V 3Ph NN1 Usedzoom

Attributes

Key Value
Actuator TypeSingle Throw
Amperage30
Amperage Rating30
Amps AC30 A
ApplicationHeavy application
ApprovalUL
BrandSquare D
Catalog NumberHU461
ColorGray
ConfigurationSingle
ConnectionLugs
Contact Form4PST
Country of OriginUnited States
Country of Origin (subj.United States
Dimensions20.5 in H x 16.13 in W .
DutyHeavy
Duty RatingHeavy Duty
EnclosureNEMA 1
Enclosure MaterialSteel
Enclosure TypeNEMA 1
Environmental ConditionsGENERAL PURPOSE (INDOOR)
FinishPainted
Frame TypeH
FusibilityNon-Fusible
Gtin785901507802
GTIN00785901507802
Horsepower15 hp, 25 hp, 30 hp
Interrupting Rating200kA@600V
ItemSingle Throw Safety Swi.
Item TypeNon-fusible disconnect;.
Made in USAYes
ManufacturerSchneider Electric
MaterialCold Rolled Steel
Maximum Load1
MountingSurface
Mounting typeSurface
Mounting TypeSurface
MpnHU461
NEMA Enclosure Type1
Nema Rating1
Number of Poles4
Number Of Wires4
Number of Wires4
Phase3, 2/3
Poles4
Protection MethodNonfusible
SeriesF5, HU
Short Circuit Current R.200
Size6.85
Special FeaturesHeavy Duty
StandardsRoHS
Temperature Rating (Deg.-22 to 104
Terminal ConnectionLug
Terminal TypeLug
TypeGeneral Purpose Heavy D.
UPC785901507802
Voltage600VAC, 600VDC, 600V AC.
Voltage Rating600 V AC/DC, 600
Warranty DescriptionContractual Warranty:18.
Wire GaugeAWG 12 to AWG 6 Aluminu.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHU461287.01In Stock10SQUARE D287.0 @ 1
Newark15B8980343.211In StockSQUARE D BY SCHNEIDER ELECTRIC343.21 @ 1
simplybreakers.comHU461344.991In StockSchneider Electric344.99 @ 1
thumbzoomsuperbreakers.comHU461368.1812Square D368.18 @ 1
thumbzoomstandardelectricsupply.com2322413374.591In StockSquare D (Schneider Electric)374.59 @ 1
steinerelectric.com113325383.021In StockSquare D?383.02 @ 1
thumbzoomZoroG200423064403.891In StockSquare D10.0403.89 @ 1
thumbzoomcrescentelectric.com350881052.651In StockSquare D1052.65 @ 1
