CLEVELAND C05131

mpnB00075ENWE
brandname: Cleveland
manufacturername: Cleveland

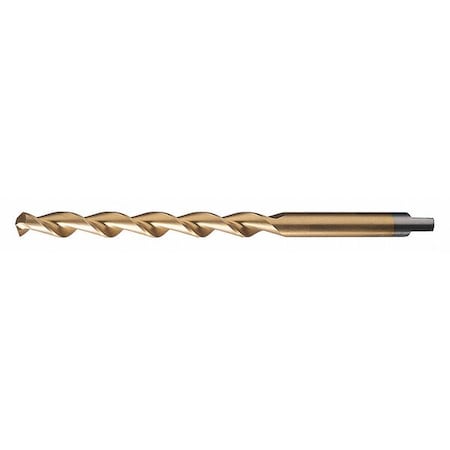

Cleveland 2565TN High Speed Steel Long Length Drill Bit, Parabolic Flute, TiN Coated, Round Shank with Tang, 118 Degree Notch Point, 1/8" (Pack of 10)

Cleveland 2565TN High Speed Steel Long Length Drill Bit, Parabolic Flute, TiN Coated, Round Shank with Tang, 118 Degree Notch Point, 1/8" (Pack of 10)

zoom

Brand: CLEVELAND
PartNumber: C05131
Model: C05131
Size: 1/8 in
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Construction	Parabolic
Cutting Depth	14XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1250, 0.1250" / 3.17mm
Depth x Dia. Ratio	8xD
Depth:Dia. Ratio	8xD
Diameter Fractional	1/8"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	TiN
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Size	1/8 in
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Taper Length
Drill Point Length	0.0376 in
Drill Size - Decimal In.	0.125 in
Drill Size - Fraction	1/8 in
Finish	TiN Coated
Flute Length	3-7/16 in, 2 3/4 in
Flute Type	Parabolic, Parabolic/Sp.
Hand of Spiral Cut	RHS / RHC
Item	Taper Length Drill Bit
Length of Flute	2.7500" / 69.85mm
List Style:	2565-TN
Material	HSS, High Speed Steel
Maximum Drilling Depth	2 3/4 in
Number of Flutes	2
Overall Length	5-1/8 in, 5 1/8 in, 5.1.
Point	118? Notched
Point Angle	118 deg
Point Type	Notched
Series	2565-TN
Shank	Tanged
Shank Dia.	1/8 in
Shank Length	2 3/8 in
Shank Size	0.1250" / 3.17mm, 1/8 in
Shank Type	Tanged, Straight
Sizes Included	1/8"
Standards	ASME B94.11M-1993
Style	2565-TN
Surface Condition	TiN
Tool Size	1/8"
Type	Tapered Length

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	C05131	9.55	1	10		Cleveland		9.55 @ 10
	Megadepot	C05131	9.55	1	10		Cleveland		9.55 @ 10
	Zoro	G2987971	11.0	10	10	8	Cleveland	0.01	11.0 @ 10
	MRO Supply	6109830	11.35	4	10		Cleveland		11.35 @ 10
	Grainger	439C90	11.6	10	10	10	CLEVELAND		11.6 @ 10
	sustainablesupply.com	C2767836	16.77	1	10		Cleveland	0.01	16.77 @ 10
