M50-3152542

mpnM50-3152542
brandname: Harwin Inc.
manufacturername: Harwin Inc.

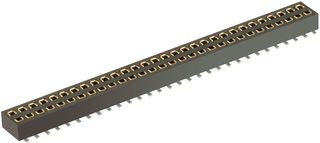

HARWIN M50-3152542 BOARD-BOARD CONNECTOR RECEPTACLE, 50WAY, 2ROW (5 pieces)

HARWIN M50-3152542 BOARD-BOARD CONNECTOR RECEPTACLE, 50WAY, 2ROW (5 pieces)

zoom

PartNumber: M50-3152542
PackageQuantity: 5
Manufacturer: HARWIN
Label: HARWIN

Attributes

Key	Value
Applications	General Purpose, Medica.
Connector Type	Receptacle, Bottom or T.
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	Flash
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	1A
Fastening Type	Push-Pull
Features	Board Guide
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.087" (2.20mm)
Insulation Material	Polyamide (PA6T), Nylon.
Mated Stacking Heights	3.2mm, 3.9mm, 4.6mm, 5..
Material Flammability R.	UL94 V-0
Mfr	Harwin Inc.
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Part Status	Active
Pitch - Mating	0.050" (1.27mm)
Row Spacing - Mating	0.050" (1.27mm)
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	26M1775	11.14	1	10		HARWIN		11.14 @ 1
	RS Delivers	681-0746P	12.54	1	54		HARWIN		12.54 @ 1
