TB Woods 8MPC90S36

mpn8MPC90S36
brandname: T.B. Woods
manufacturername: T.B. Woods

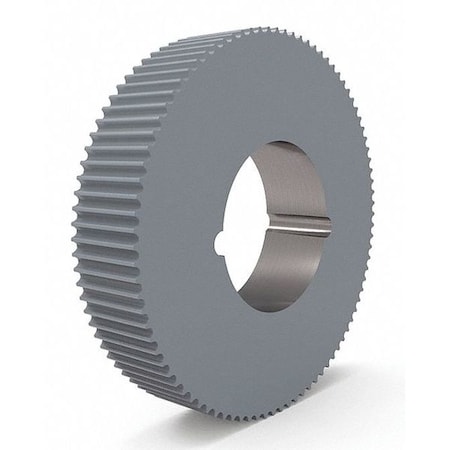

QT PowerChain II,8MPC-90S-36-3020

QT PowerChain II,8MPC-90S-36-3020

zoom

Brand: TB Woods
PartNumber: 8MPC90S36
PackageQuantity: 1
Manufacturer: TB WOOD'S
Label: TB WOOD'S

Attributes

Key	Value
Belt width	36 mm
Bore type	Taper locking bushing
Bushing	3020
Bushing bore range	7/8 - 3 1/4
Dimension	2
Face width	1.86
Flanges	0
Groove profile	8M
Hub Diameter	6.25
Hub diameter	6.25
Hub length	2
Inertia WR2 (lbs ft2)	1.93
Inertia WR?	181
Inside hub projection	0
Item	QT PowerChain II,8MPC-9.
Material type	Cast iron
Number of grooves	90
Number of hubs	1
Number of teeth	90
O.D.	8.96
O.D. (in)	8.96
Outside hub projection	0.14
Package Quantity	1
Pitch	8
Pitch diameter	9.02
Rim face	1.86
RPM upper limit	2800
Tooth pitch	8
Type	B1

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1569071	326.99	1	In Stock		Tb Woods	24.0	326.99 @ 1
	MRO Supply	832450	354.57	1	In Stock		TB Woods		354.57 @ 1
