Schneider TM258LD42DT4L

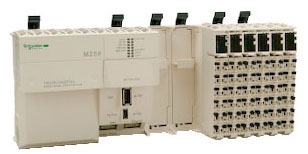

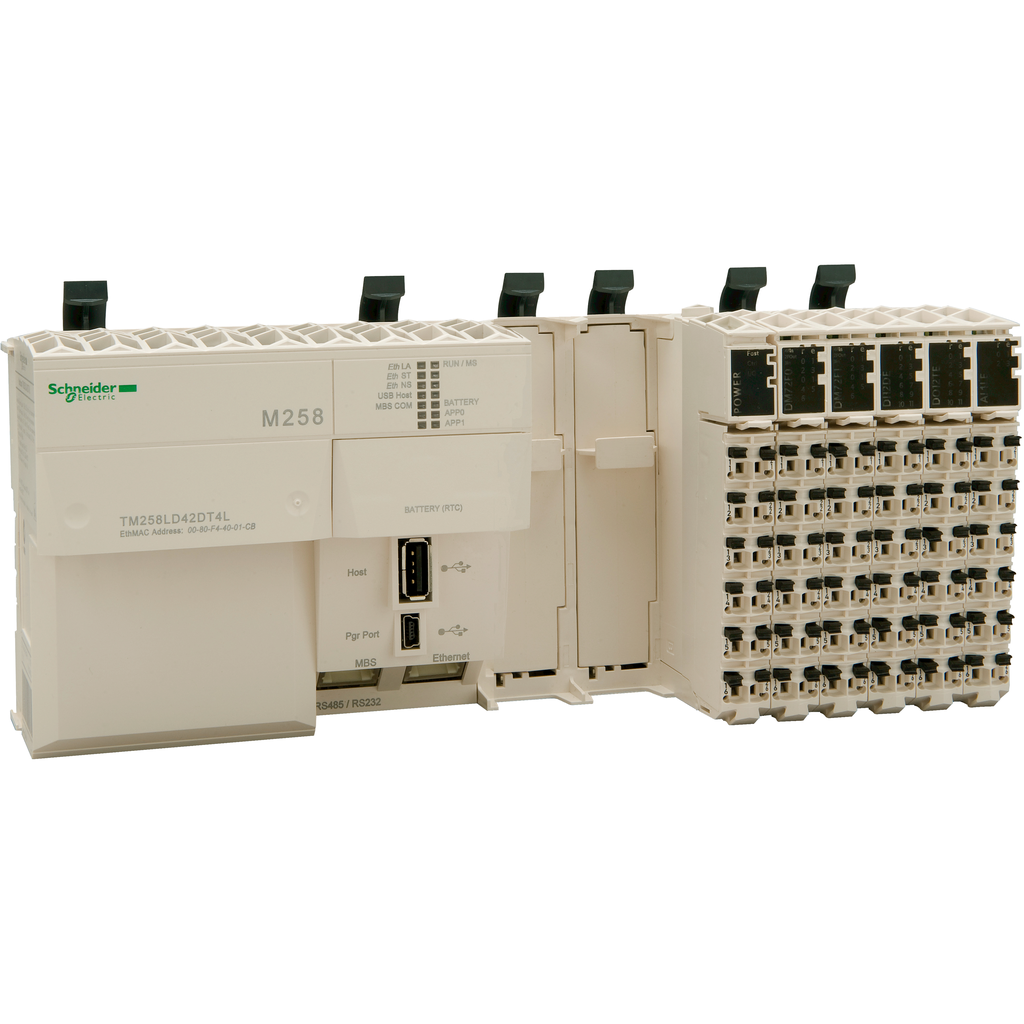

Schneider Compact Base TM258LD42DT4L, New in Box, One Year Warranty!zoom

Schneider Compact Base TM258LD42DT4L, New in Box, One Year Warranty!

B07WF7FLCL

Attributes

Key Value
[Us] Rated Supply Voltage24 V DC embedded expert modules power || 24 V DC I/O power segment || 24 V DC main supply
Ambient Air Temperature For Operation0-55 ?C without derating horizontal installation) || 0-60 ?C with derating factor horizontal installation) || 0-50 ?C vertical installation)
Ambient Air Temperature For Storage-25-70 ?C
Analogue Input Number4
Analogue Input Resolution12 bits
Analogue Input Typecurrent 0...20 mA || current 4...20 mA || voltage +/- 10 V
Anti Bounce Filtering2 ?s...4 ms configurable fast input/regular input and fast output
Application-
BrandSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Catalog NumberTM258LD42DT4L
China Rohs RegulationX
Circularity ProfileENVEOLI1105007EN
Configurable Filtering Time0 ms fast input/regular input and fast output || 1.5 ms fast input/regular input and fast output || 12 ms fast input/regular input and fast output || 4 ms fast input/regular input and fast output
Counting Input Number8 200 kHz
Country of OriginAustria
Data Backed Upvariables of type retain and retain persistent CR2477M Renata, 1.5 years
Depth85 mm
Discrete I/O Number42
Discrete Input Current4 mA fast input || 4 mA regular input
Discrete Input Logicsink fast input || sink regular input || source input
Discrete Input Number10 fast input || 12 input || 4 regular input
Discrete Input Voltage24 V
Discrete Input Voltage TypeDC
Discrete Output Current4 mA fast output
Discrete Output Logicsource
Discrete Output Number12 output || 4 fast output
Discrete Output Voltage24 V DC
Disturbance Radiated/ConductedCISPR 11
EnclosureIP20 CONFORMING TO IEC 61131-2
Environmental DisclosureENVPEP110507EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Execution Time Per Instruction22 ns Boolean
Family NameModicon Controllers Family
For Use WithModicon M258, Modicon LMC058, PacDrive Motion Controllers
GTIN03595864074207, 00785901684664
Height99 mm, 3.9
InputSink fast input;sink regular input;source input;6 kOhm fast input;6 kOhm regular input;24;DC;12 bits;Current 0...20 mA;current 4...20 mA;voltage +/- 10 V
Input Impedance6 kOhm fast input || 6 kOhm regular input
Integrated Connection Type1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps || 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave.
Ip Degree Of ProtectionIP20IEC 61131-2
IP RatingIP20
Isolation Between Channelsnone
Isolation Between Channels And Internal Logic500 Vrms AC
Item Typelogic controller
Length3.35
Line Rated Current0.04 A embedded expert modules power || 10 A I/O power segment || 0.31 A main supply
Local Signalling1 LED per channel I/O state || 1 LED green/yellow Eth LA (Ethernet activity) || 1 LED red BATT (battery status) || 1 LED CAN0 STS || 1 LED MBS COM || 1 LED green/red APP0 || 1 LED green/red APP1 || 1.
Made in USANo
ManufacturerSchneider Electric
MarkingCE
Memory Descriptionflash 128 MB || internal RAM 64 MB
Mercury FreeYes
MountingDin Rail
Mounting Supportsymmetrical DIN rail
Net Weight0.77 kg
Operating Altitude0...6561.68 ft (0...2000 m)
OutputSource;4 mA fast output;24 V DC;19.2...28.8 V
Output Voltage Limits19.2...28.8 V
Pollution Degree2 IEC 60664
Power Consumption In W14.14 W
Product CertificationscULus || CSA || GOST-R || C-tick
Product Or Component Typelogic controller
Pvc FreeYes
Range Of ProductModicon M258
Reach Free Of SvhcYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Relative Humidity5-95 % without condensation
Resistance To Electromagnetic Fields1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
Resistance To Electrostatic Discharge4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
Resistance To Fast Transients1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
Rohs Exemption InformationYes
SeriesModicon M251 Micro Series
Shock Resistance15 gn 11 ms
Special FeaturesFlash 128 MB;internal RAM 64 MB
StandardCE
StandardsIEC 61131-2 || CSA C22.2 No 213 || CSA C22.2 No 142 || UL 508
Storage Altitude0-3000 m
Supply Voltage Limits20.4-28.8 V
Surge Withstand0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
UPC785901684664
UPC Code785901684664
Vibration Resistance1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Voltage Rating24 V DC embedded expert modules power;24 V DC I/O power segment;24 V DC main supply
Voltage State 1 Guaranteed>= 15 V fast input || >= 15 V fast output || >= 15 V regular input
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
Wattage14.14 W
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width237.5 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNex InstrumentTM258LD42DT4L1765.01In StockSchneiderElectric1765.0 @ 1
thumbzoomgordonelectricsupply.comTM258LD42DT4L2160.01In Stock10SQUARE D2160.0 @ 1
thumbzoommayerelectric.comSQDTM258LD42DT4L2351.981In StockSCHNEIDER ELECTRIC1.6942351.98 @ 1
thumbzoomNewark52T53162381.381In StockSCHNEIDER ELECTRIC2381.38 @ 1
thumbzoomcrescentelectric.com1934433041.461In StockSchneider Electric3041.46 @ 1
us.rs-online.com703797743088.221In StockSchneider Electric3088.22 @ 1
